MIRA DM2 WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLER MIRA LTD.
CHELTENHAM
GL52 5EP
TEL: (+44) 0870 241 0888
www.mirashowers.com
HOT COLD
POWER: 230 V AC 20 W
PROTECTION: IP24
MIN. SUPPLY PRESSURE: 50 kPa (0.5 bar)
MAX. WORKING PRESSURE: 500 kPa (5 bar)
MAX. STATIC PRESSURE: 1000 kPa (10 bar) (WRAS)
MAX. SUPPLY WATER TEMP: 65 °C
POSITION APPLIANCE OR
ISOLATE MAINS ELECTRICITY BEFORE
REMOVING COVER!
F9001
DIGITAL MIXER 2 WIRELESS
cold
warm
hot
Only install the High Pressure Digital Mixer Valve with a multipoint gas water heater
or combination boiler of a fully modulating design (i.e. where the water draw-off
rate indirectly controls the gas ow rate to the burner).
An expansion vessel must be tted (and regularly maintained) if any form of backow
prevention device is tted, e.g. Non-return valve or PRV. This will ensure that excess
expansion or pulse pressures do not damage the product or plumbing system. The
expansion vessel may already be tted within the boiler (check with the manufacturer)
and is in addition to the normally larger central heating expansion vessel.

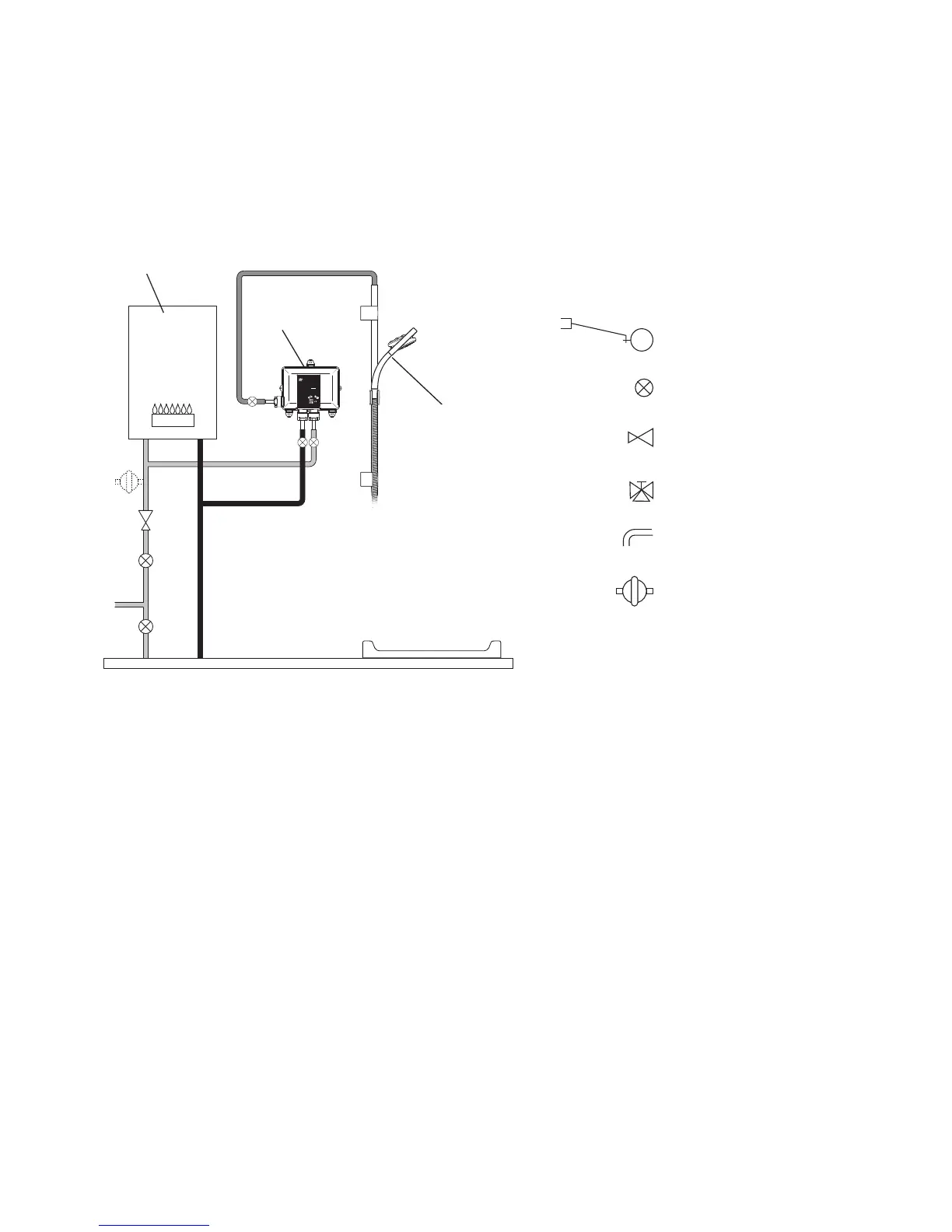

Typical Suitable Installations:
Mira Vier
Shower Fittings
Digital Mixer
Valve (HP)
Float Valve
Key to Symbols
Isolating Valve
Tempering Valve
Overow Indicator
Mini Expansion Vessel
Pressure Reducing
Valve
COLD HOT
Combination
Boiler
1. Instantaneous Multipoint Water Heaters and Combination Boilers
Caution! Risk of product damage. Do not t the Mira Digital Mixer - PUMPED
VALVE with Instantaneous Multipoint Water Heaters or Combination Boilers.
