TRAPEZE CHALLENGER 2M
Item Description Qty
Specifications
1 Trapeze Challenger Frame 2m 1
2 Trapeze Challenger Bar 4 Materials:
3 M10x25mm Torx Bolt 8
4 M10 Flat Washer 8
5 M8x20mm Cup Head Bolt 8 Colour: Optional
6 M8 Nyloc Nut 8
Finish: Powdercoat
Fasteners:
Stainless Steel
Application:
Designed for Hand – Eye Coordination and Upper
Body Activity
M
aintenance
All fasteners should be regularly
checked and retightened, if necessary, 1
week after installation.
Ongoing maintenance intervals will vary
accord
ing to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
* Wear Item - Refer Warranty
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/
Grass–700mm (Pictured)
- Rubber – 500mm
+ 3
00mm Added to Upright depth if
comp
onent is Freestanding
+ Use ID tag as reference.

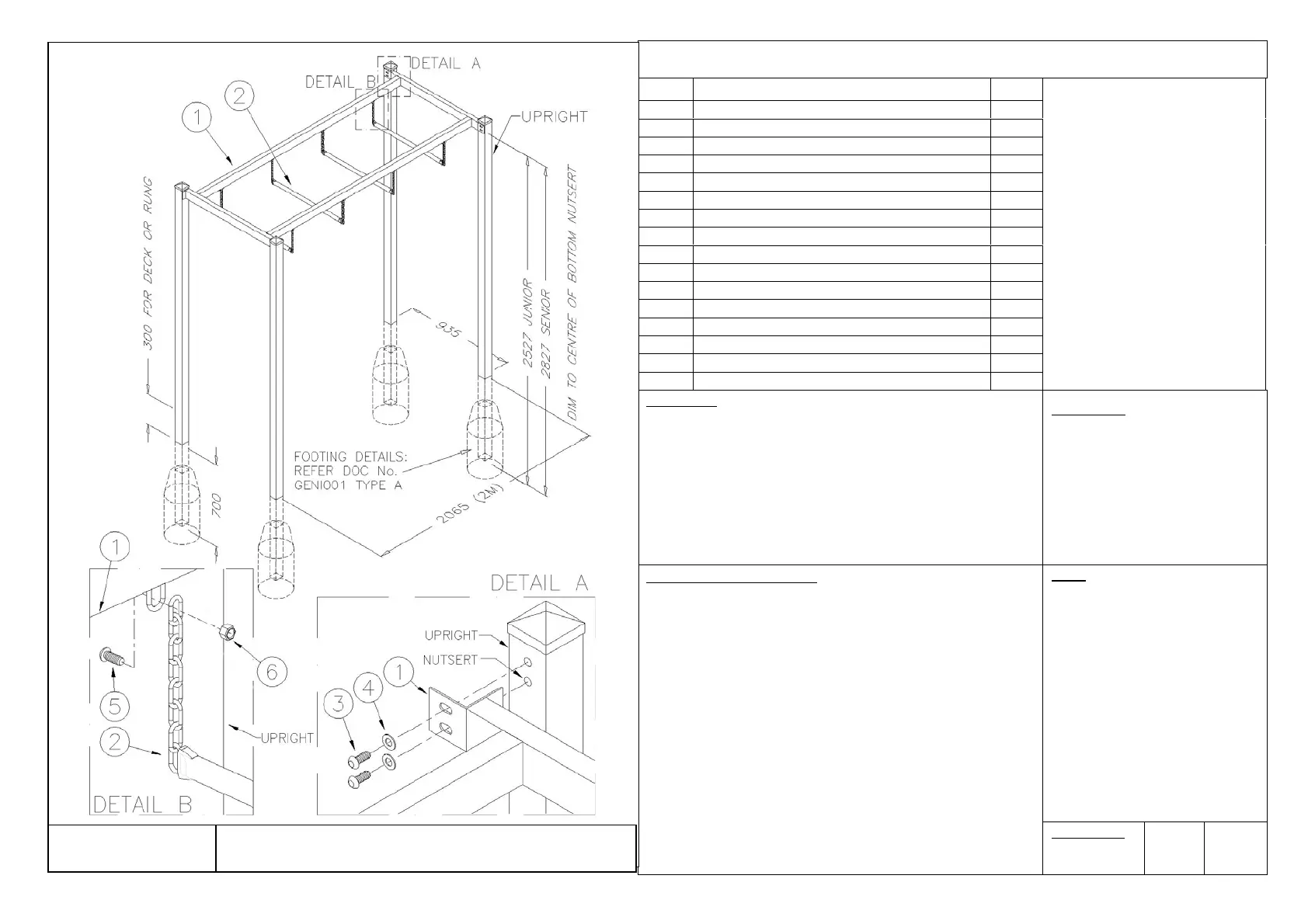

Installation Instructions:
1. Refer to pl
an view for position of Trapeze 2m Chall
enger.
2. Attach the Trap
eze Bars with M6 Cup Heads, Washers and
Nyloc Nuts.
3. Lift overhead in
to place betwee
n the uprights and secure
with Torx Bolts with Flat Washers under the bolt heads.
4. Ensure all bolts are tight and footings cured prior to use.
Age Groups:
3-7 Years
7-15 Years
