Miracle LIB-053 - Page 22

FIBREGLASS
HEX ROOF
Item Description No.
Specifications
1
Hex Roof Section
2
2
Hex Roof Mount
6
Material: Fibreglass
3
M10x25mm Torx Bolt
24
4
M10 Flat Washer
30
Colour: Optional
5
M10 Nyloc Nut
12
6
M10 Nylon Washer
6
Finish: Powdercoat
Fasteners:
Stainless Steel
Application:
Roofs can be used to provide shade over a deck.
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
* Wear Item – Refer Warranty
Installation Instructions:

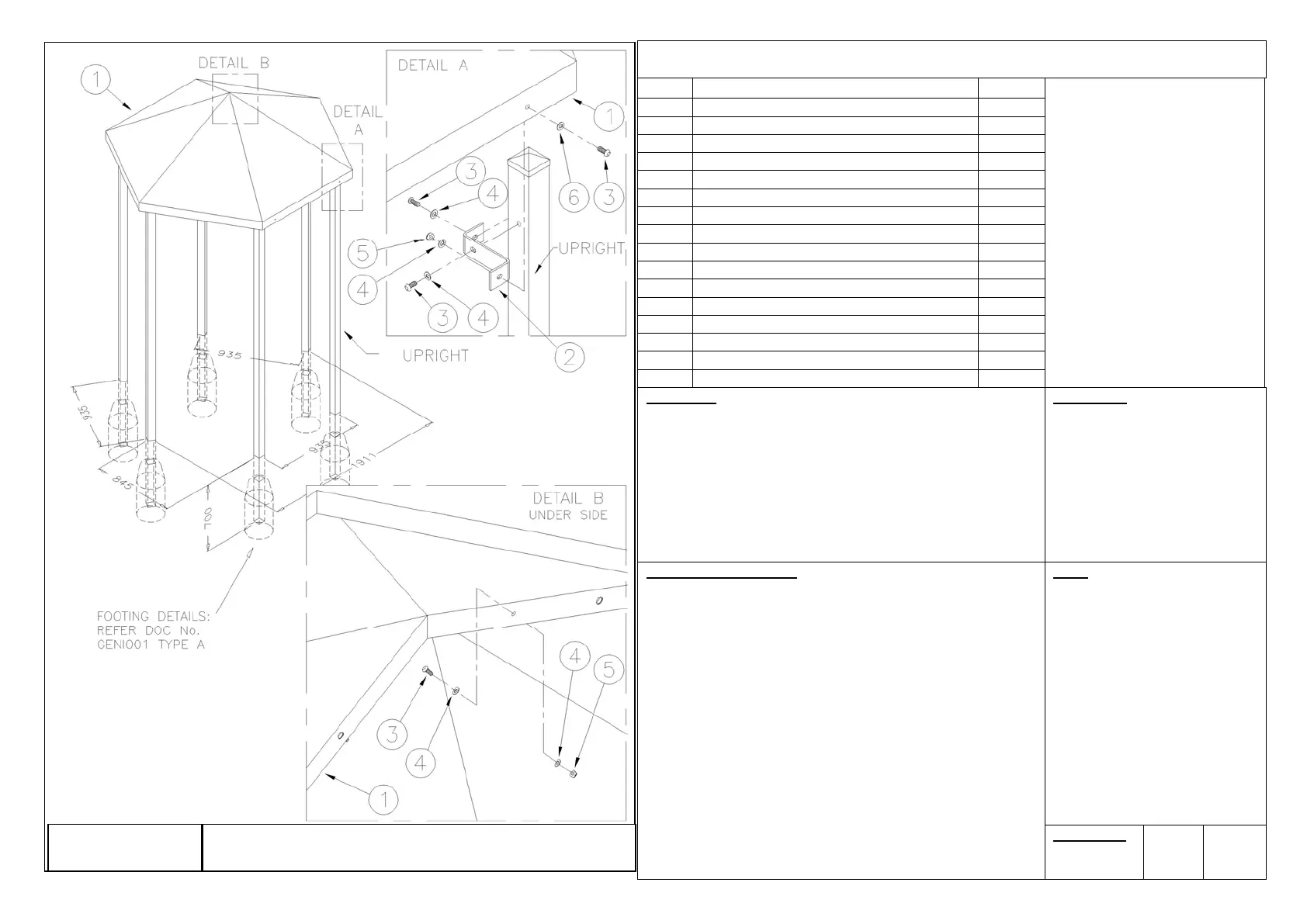

1. Refer to the plan view for the position of the Hex Roof.
2. Bolt Hex Roof Sections TOGETHER using 25mm Torx Bolts
with Flat Washers and Nyloc Nuts.
3. Bolt the Roof Mounts to the uprights using Torx Bolts with
Flat Washer under the bolt heads.
4. Lift the roof into position, drill out holes in roof to 12mm and
secure into position with Torx Bolts with Nylon Washers
under the heads and Flat Washer with Nyloc Nuts.
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
Age Groups:
3-7 Years
7-15 Years
STRUCTURE: ____________________
DATE: ___________
MIRACLE: ______________________ DATE: ___________
Doc No. R
-
05
-
1
