Miracle LIB-053 - Page 23

TWISTER SLIDE 1.5m
Item Description Qty
Specifications
1
Fibreglass Twister Slide Bedway
1
2
Poly/Fibreglass Slide Front Leg
2
Materials:
3
Twister Slide Side Leg
1
4
End Rung
1
5
Fibreglass Double Wave Slide Mount
Plate
1
Col
our: Optional
6
M10 Nylon Washer
10
7
M10x25mm Torx Bolt
1
4
Finish: Powdercoat
8
M10x4
0mm Torx Bolt
2
9
M10 Flat Washer
8
10
M10 Nyloc Nut
8
11
Infill Bracket
2
12
Tri Lube Screw
4
Fasteners:
Stainless Steel
Application:
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
* Wear Item - Refer Warranty
Installation Instructions:

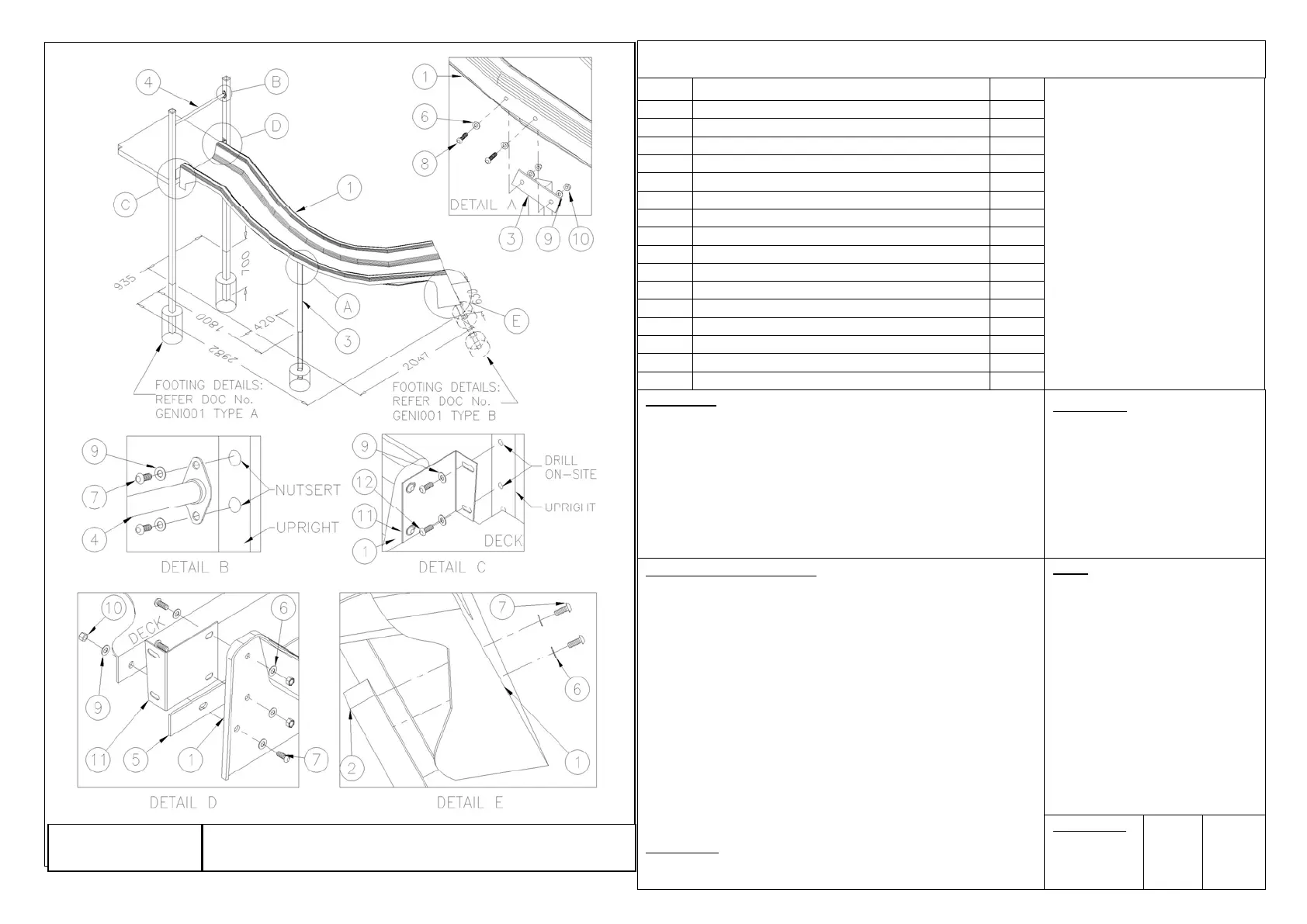

1. Refer to the plan view for location of fibreglass twister slide.
2. Turn the slide over and bolt the Fiberglass Slide Front Legs
to the run out end with M10x25 Torx Bolts with Nylon Flat
Washers under the heads.
3. Turn the slide right side up and lift into position, drill out to
centre pilot holes on deck to 12mm.
4. Bolt the top of the slide to the deck with M10x25 Torx Bolts,
and Nyloc Nuts.
5. The Twister Slide Side Leg bolts halfway down the slide on
the outer edge. Position the leg under the lip of the slide and
bolt through the predrilled holes using M10x40 Torx Bolts,
Nyloc Nuts, Flat Washers and Nylon Flat Washers.
6. Bolt the End Rung to the inside face of the uprights with
M10x25 Torx Bolts and Washers.
Please Note: The slide runout should be approximately 300mm
from the bedway of the slide to the finished level when installation
is complete
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
Age Groups:
STRUCTURE: ____________________
DATE: ___________
MIRACLE: ______________________ DATE: ___________
Doc No. S
-
1
3
