Miracle LIB-053 - Page 24

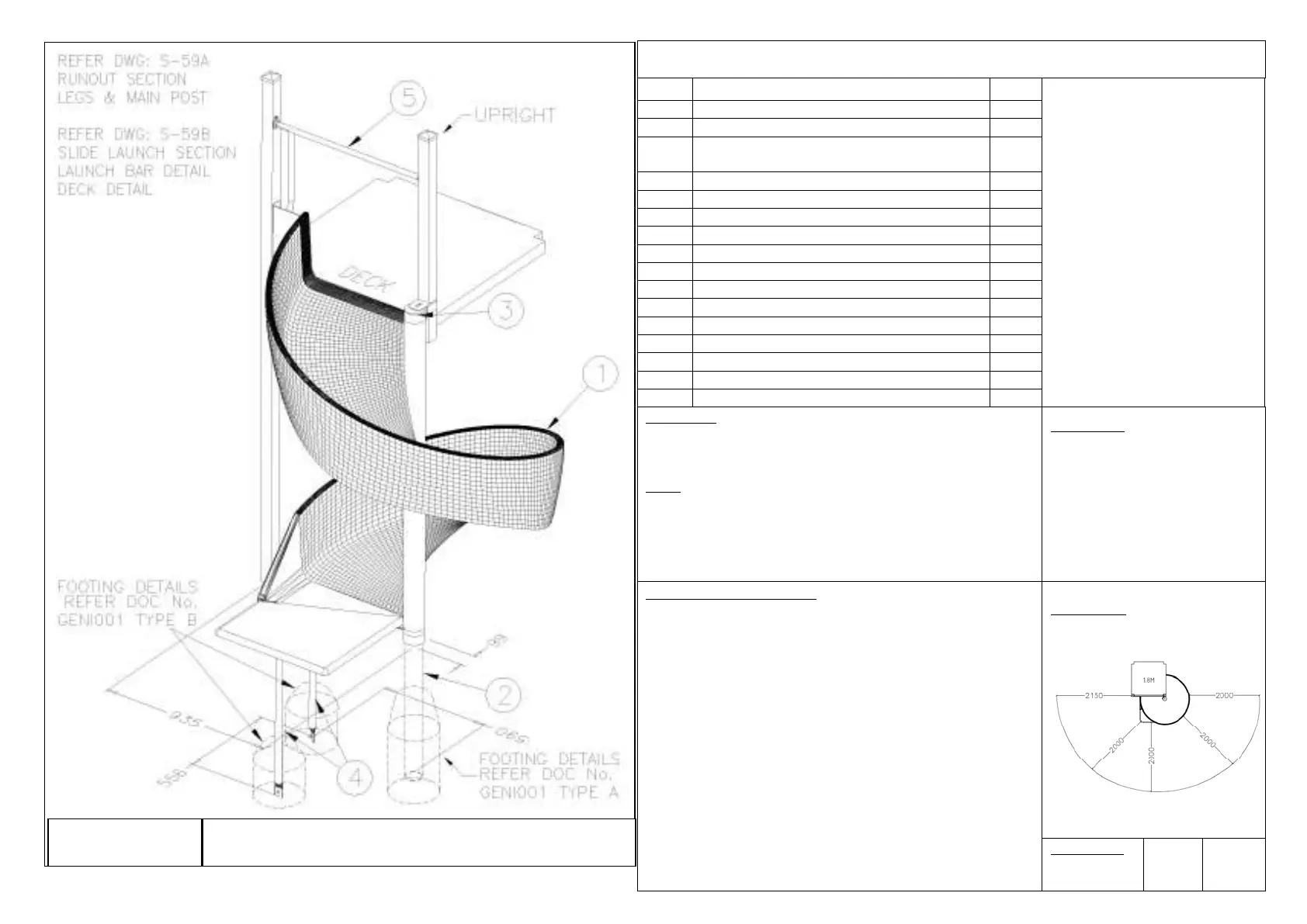

CYCLONE SLIDE
Item Description Qty
Specifications
1
Cyclone Slide
Bedway
1
2
Cyclone Slide Post
(
Refer S
-
59B
)
1
Materials:
3
Cyclone Slide Post Cap
& Entrapment Plate
(Refer S-59B)
1
4
Cyclone Slide Front Legs
(
Refer S
-
59A
)
2
5
Launch Bar
/ Infill
(
Refer S
-
59B
)
1
Colour: Optional
Finish: Powdercoat
Fasteners:
Stainless Steel
Application:
Designed as an exit point from 1.8M deck.
Note:
In-ground Upright depth may vary depending on Softfall
- Sand/Mulch/Grass: 700mm (Pictured)
- Rubber: 500mm
- 300mm Added to Upright depth if component is Freestanding
- Use ID tag as reference.
Maintenance
All fasteners should be regularly
checked and retightened, if necessary, 1
week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
* Wear Item - Refer Warranty
Installation Instructions:
1. Locate the Cyclone Slide on the plan drawing.
2. Drill out pilot holes on deck to 12mm.
3. Refer Drawing S59A for fixing Support Legs and
Main Post.
4. Excavate holes for Foundation at spacings shown on
drawing. Refer drawing Gen001 for footing details as
noted on main drawing. Lower Fitted Slide & Legs into
excavated holes.
5. Refer Drawing S59B for fixing Launch Bar, Post Cap
and Slide Bedway to Deck and Uprights.
6. Ensure all bolts are fully tightened.
7. Concrete Slide Legs and Post in place. Allow concrete
to cure before backfilling and use.
Safety Area
A
ge Groups:
3-7 Years
7-15 Years
STRUCTURE: ____________________
DATE: ___________
MIRACLE: ______________________ DATE: ___________
Doc No. S-59
