Miranda sensorex User Manual

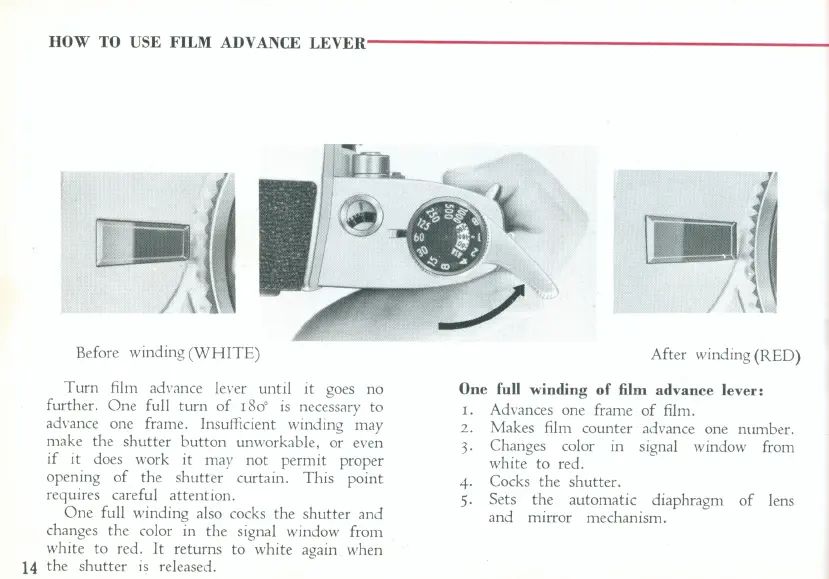

HOW TO US E FILM A DV AN CE LEVER --------------------
Before winding (WHITE)
Turn film ad"ance lever until it goes no
further.
One full turn of I 80 ' is necessary to
ad"ance one frame. lnsufncient winding may
make the
shutter button unworkable. or even
if it does work it may not permit proper
opening
of the shutter curtain. This point
requires careful attention.
One full winding also cocks the shutter and
changes the color in the signal window from
white to red.
It returns to white again when
14 the shutter is released.
After winding
(RED)
On e full winding of film advan ce lever:
1. Advances one frame of film.
2. Makes film counter advance one I1llmber.
3. Changes color in signal window from
white
to red.
4. Cocks
the shutter.
5. Sets
the automatic diaphragm of lens
and mirror mechanism.

Miranda sensorex Specifications

General

Viewfinder	Pentaprism
Shutter	Focal-plane shutter
Metering	TTL
Focus Range	Depends on lens
Lens Mount	Miranda bayonet mount
