Miranda sensorex User Manual

50

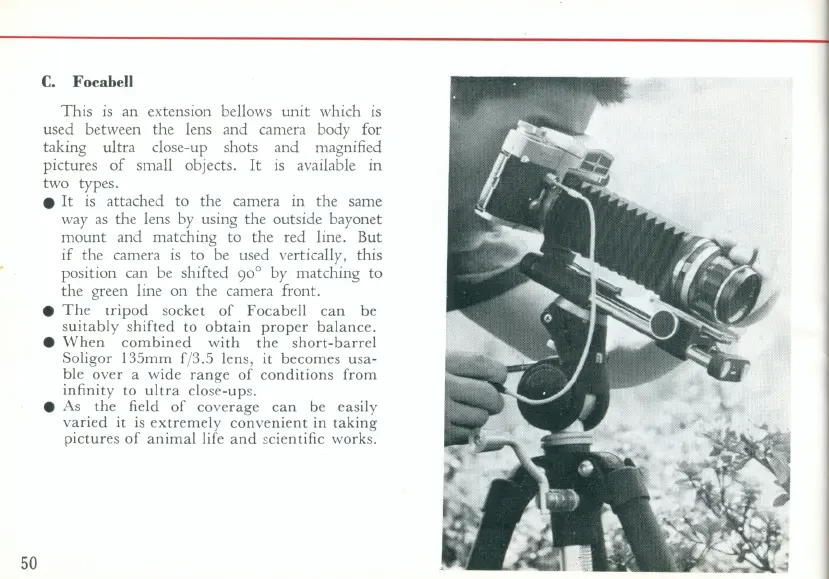

c. Fo cabell
This is an extension bellows unit which is
used between
the lens and camera body for
taking
ultra close-up shots and magnified
pictures
of small objects. It is available in
two types.
• It is attached to the camera in the same
way
as the lens by using the outside bayonet
mount and matching to the red line. But
if the camera is to be used vertically, this
position can be shifted
90° by matching to
th e green line on the camera front.
•
The tripod socket of Focabell can be
suitably s hifted to obtain proper balance.
• When combined with the short - barrel
Sol igor 135mm f/3.5 lens, it becomes usa-
ble
over a wide range of conditions from
infinity to ultra close-ups.
•
As the field of coverage can be easily
varied it is extremely convenient in taking
pictures of animal life and scientific works.

Miranda sensorex Specifications

General

Viewfinder	Pentaprism
Shutter	Focal-plane shutter
Metering	TTL
Focus Range	Depends on lens
Lens Mount	Miranda bayonet mount
