88

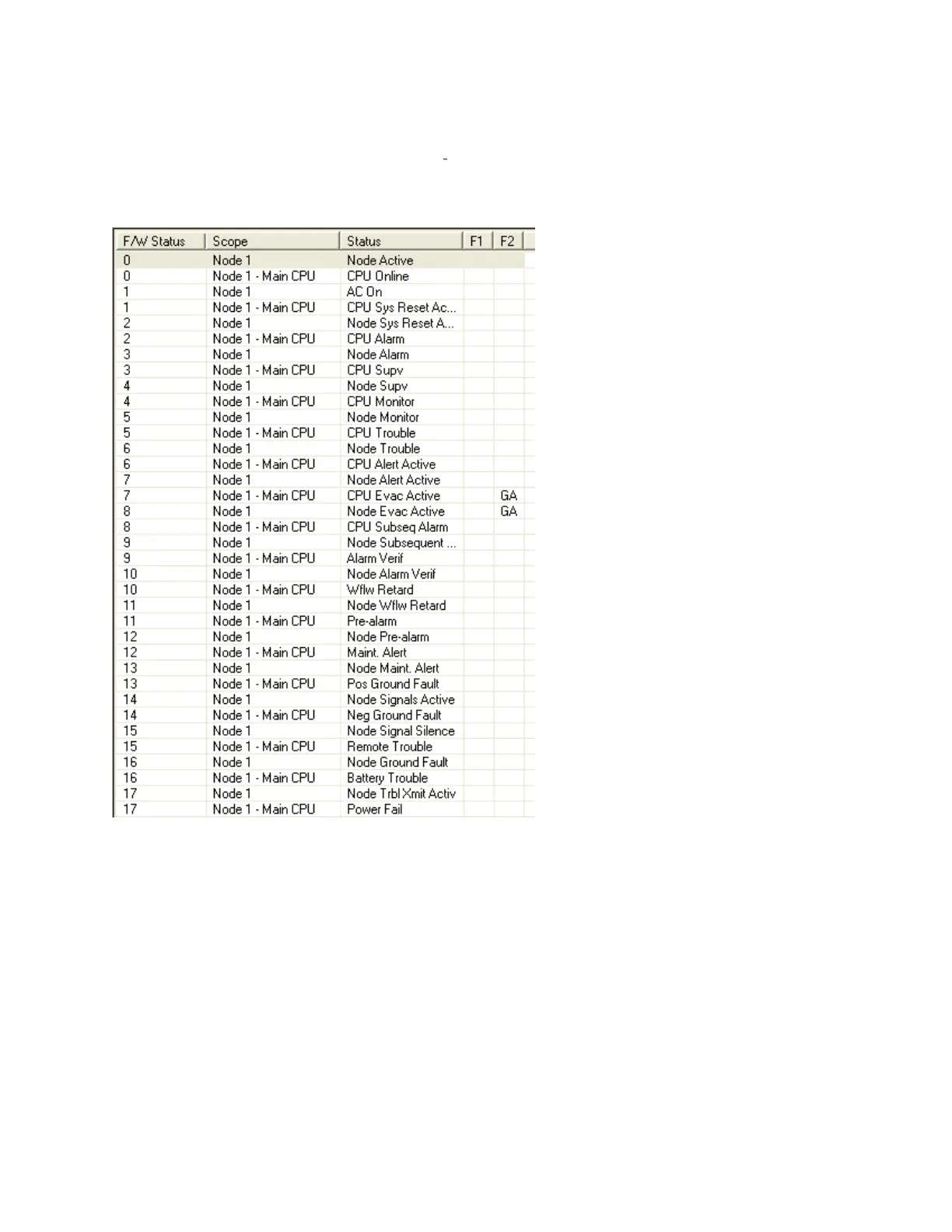

The Scope
column
specifie
s the N
ode and C
PU of the status
. You mu
st have d
efined a
suitable
LED to accep
t the c
orrel
ation f
rom th
e Node
or
Node/CPU s
pecifi
c stat
us.
For a complete
list see
CPU Status Details
.
Some colum
ns containi
ng advance
d or interna
l informa
tion are nor
mally hidden. They are
listed
as Vis
ible / N
o in t
he fol
lowing
table.
87
89
Table of Contents
Table of Contents
2
Configuration
7
Overview
8
GUI - Major Components
8
Edit Menu
9
File Menu
10
Insert Menu
11
Job Menu
12
Panel Menu
14
Tools Menu
15
Add Amplifier
16
Add Circuit Adder
16
Add Correlations
18
Add Device
18
Add Group
20
Add Display Adder
21
Add Loop Controller
22
Add Message
23
Add Network Node
23
Add an Output Group
24
Add UDACT
27
Add Zone
28
Address Scheme
29
Advanced Panel Information Dialog
30
Node Control (Request/Grant/Deny)
31
Node Grouping
39
Audio Message Composer
41
Audio Setup
45
Backup Database
46
Manage Messages
48
Select Job to Compare
49
Compare Jobs Advanced Options
50
Create Job
51
Display Structure
52
Edit Job
54
Export Job
55
Firmware Archive Contents
57
Holidays
58
Import Job
59
Logic Editor Dialog
60
Network Node Merge
69
New Job Version Information
69
Open Job
70
Panel Information Dialog
71
Paste Special
72
Paste Special
73
Print Dialog
75
Print Setup
77
Restore Database
77
Security Key Logon
78
Upgrade Firmware
80
User Preferences
82
Update Panel Time
83
Version History
83
XML Export / Job Details Options Dialog
84
Audio Controller Details
85
System/Node/Cpu Status
87
Correlations
90
Interval List View
92
Timer List View
94
Dialer
95
Display Adder
100
Equation Summary List View
103
Input / Output Circuit Summary
104
Input Zones
106
Audio Splitter Zones
108
LED Annunciator Summary
108
Loop Controller
109
Loop Detail
110
Main Display / LCD Annunciator
114
Job Details
118
Job Tree
126
Network Node Details
128
Walk Test Areas
130
Drift Compensation
131
Differences Mode / Differences Report
132
Fire Phone Configuration
136
Send Job
142
Get Job
142
Suite Silence Configuration
144
Delete Item
146
Modify Item
146
Copy
146
Paste
147
Paste Special
147
User Preferences
147
Print
147
Print Preview
147
Add Loop Controller
147
Add Annunciator
148
Add Display Adder
148
Add Item
148
Add Device
148
Add Correlations
149
New Job
149
Open Job
150
Merge Job
150
New Version
151
Delete Job Version
152
Version History
152
Convert Job
152
Validate Job
152
Panel Info
153
Security Key Information
153
Upgrade Firmware
153
Extract All
153
Build Job
153
Connect
153
Manage Jobs
153
Build Job
154
Link Statistics
154
Display Structure
154
Custom Messages
154
Security Key Information
157
System Status Details
157
Node Status Details
164
CPU Status Details
167
Linked Display Items
171
Convert Job
172
Copy and Paste
173
Add Annunciator
176
Select Build Type
176
