LT‐6136rev1.17/16/19

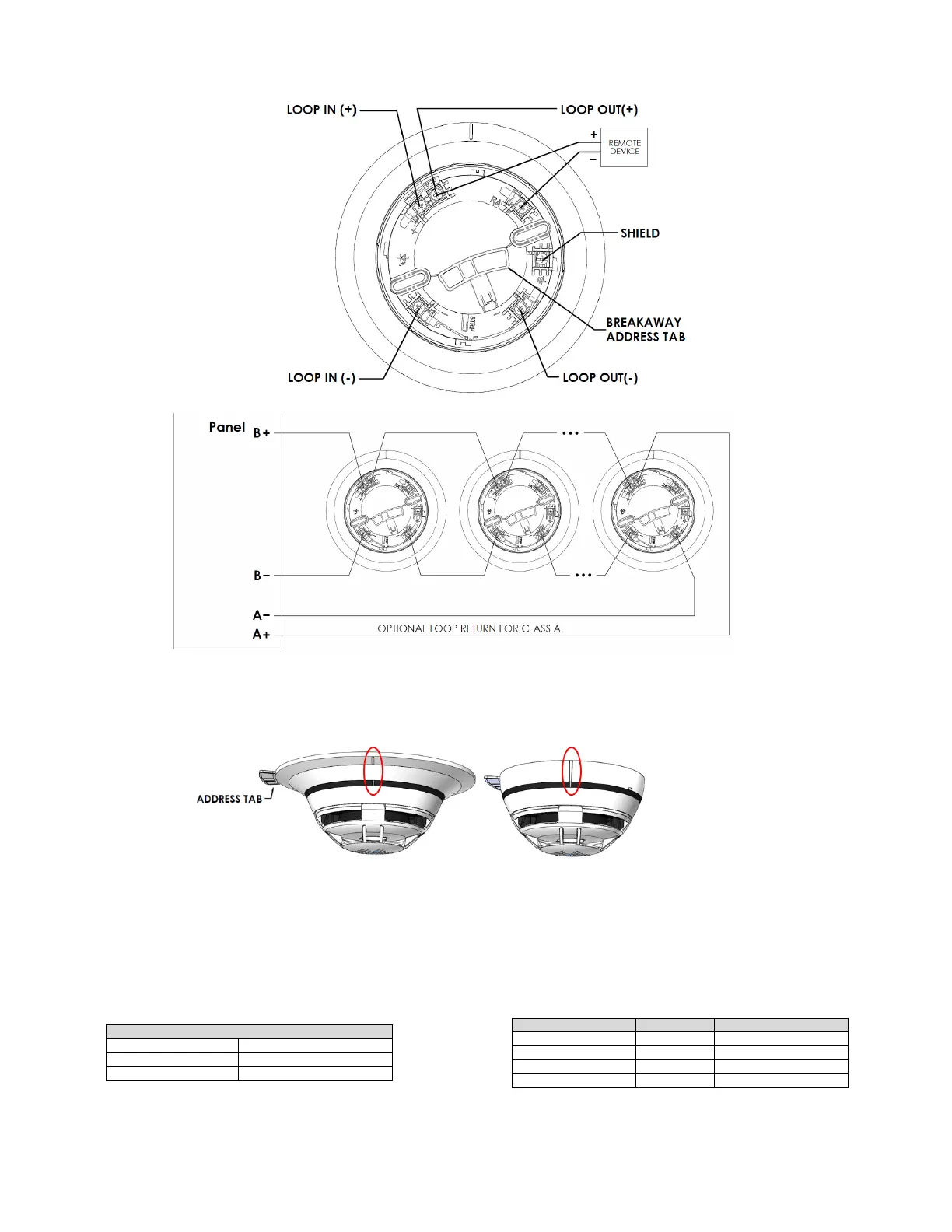

FIGURE 2 DETECTOR WIRING:
FIGURE 3 LOOP WIRING:
FIGURE 4 ALIGNMENT MARKS:
Detector LED Colors
Alarm Red (Steady on)
Air Sampling Green (Flash)
Fault Yellow (Steady on)
Sensitivity Level Typical Note
Level 1 2.0 %/feet Most sensitive level
Level 2 2.5 %/feet
Level 3 3.0 %/feet
Level 4 3.5 %/feet Least sensitive level
