TX3-CX-1NP Installation
4
LT-5997 Rev 3 January 2018
Subject to change without notice. See http://www.mircom.com for the latest information

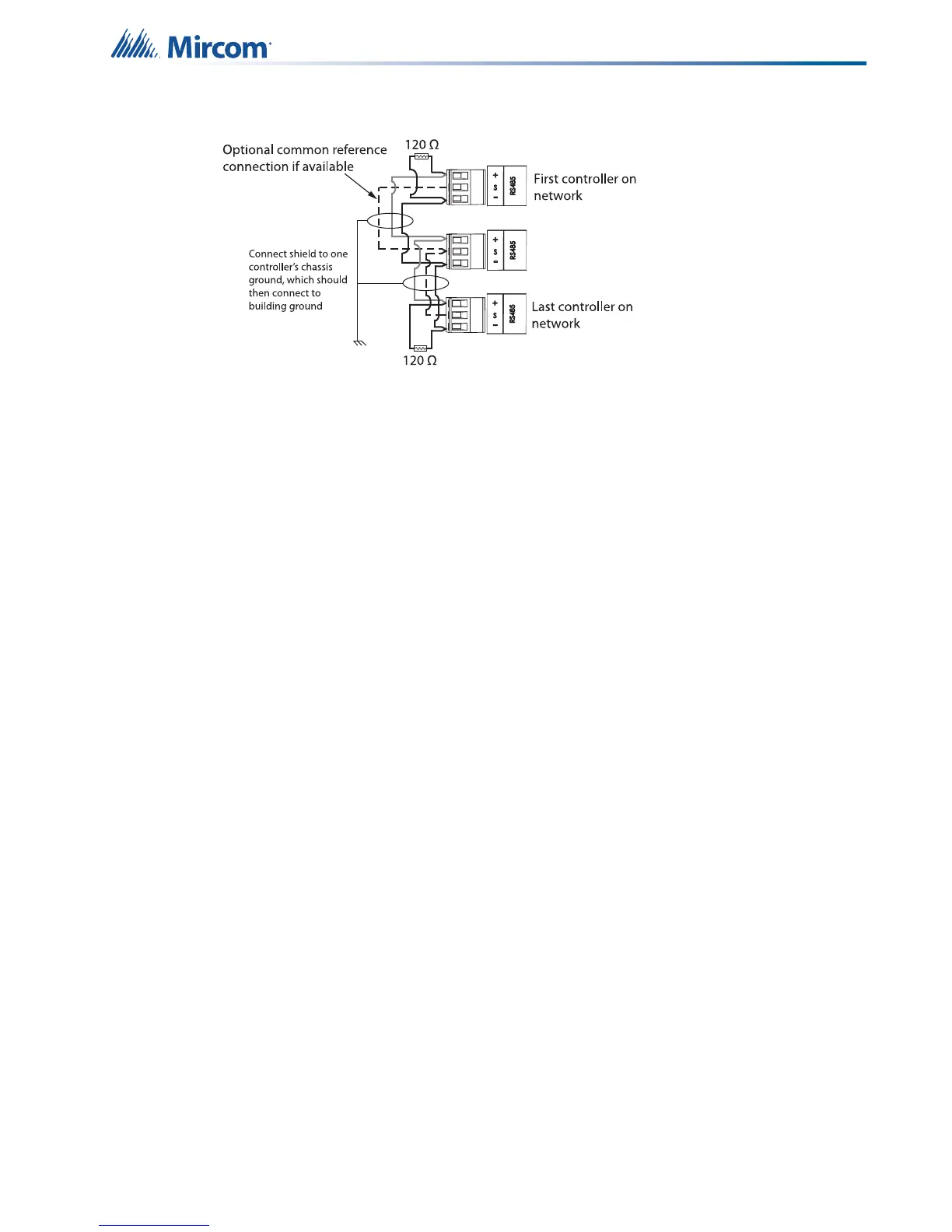

Figure 5 RS-485
USB Port
The USB port provides a connection to a PC, for configuring the Card Access System and
upgrading the firmware.
Inputs
Inputs 1 to 4 are programmable inputs. For details on the active state and supervision of the
inputs, see LT-980 on the Mircom website (www.mircom.com) or the USB flash.
For details on programming the inputs, see LT-995 on the Mircom website (www.mircom.com)
or the USB flash.
Outputs
For details on programming the outputs, see LT-995 on the Mircom website
(www.mircom.com) or the USB flash.
G. Connect the Power
The Single Door Controller can be powered in three ways:
• Power over Ethernet (PoE)
• 12 VDC/15 W
• 24-57 VDC/15 W
H. Card Reader Beeper
The beeper indicates specific events at different beep rates as follows:
• Card Presented. One short beep.
• Access Granted. Two short beeps.
• Access Denied. One short beep and one long beep.
• Mode of Operation Changed. Three short beeps indicate a change in the on or off state
for the high security or the unlock mode.
• Alarm. Continuous short beeps.
I. Update Firmware
Refer to LT-995 on the Mircom website (www.mircom.com) or the USB flash for instructions on
how to upgrade the firmware.
