location. Permanent wind direction error will be introduced when the wind direction
sensor is not positioned correctly during installation.

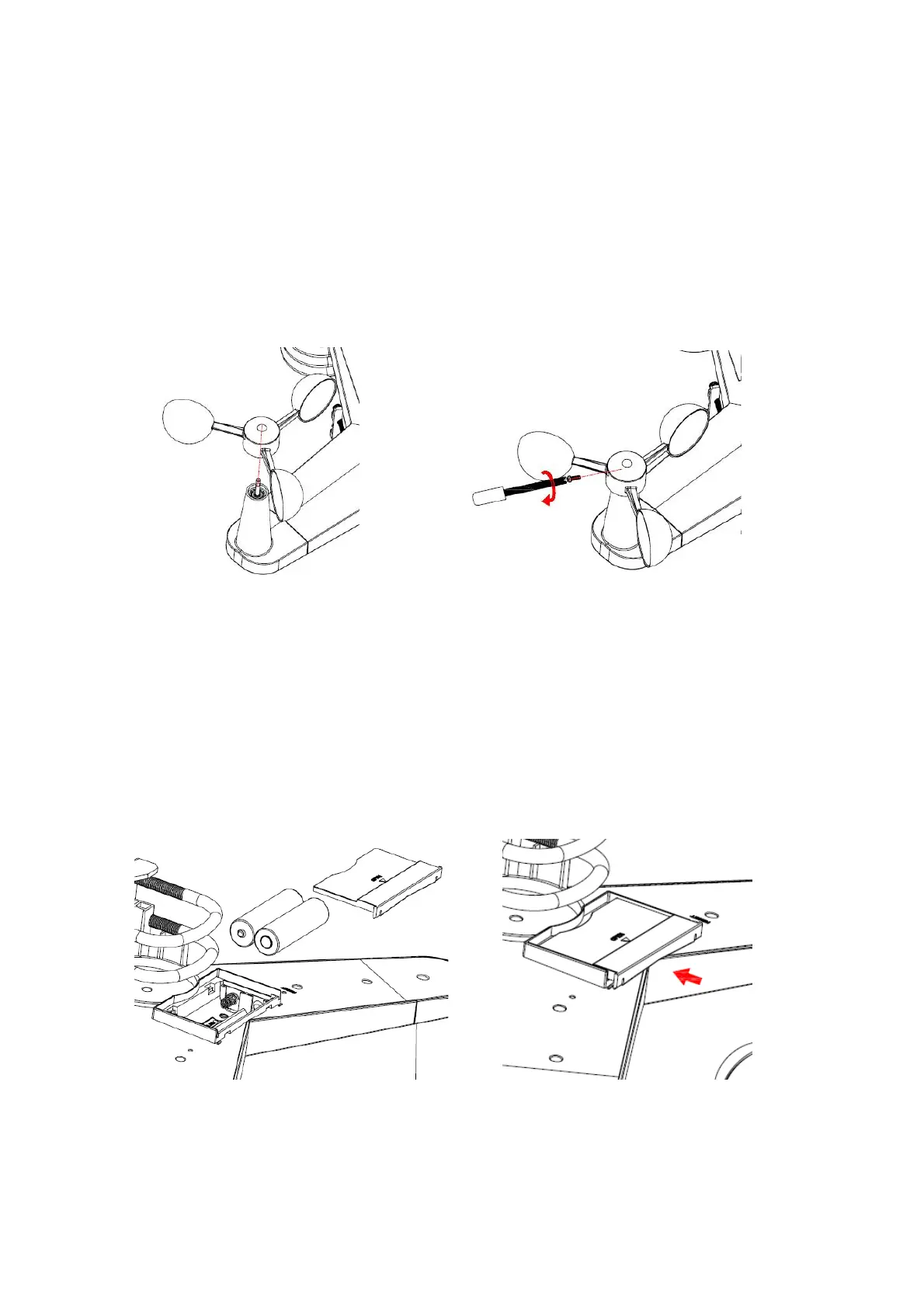

3.3. Install wind speed
Push the wind speed into the shaft. as shown in figure 5.
Tighten the set screw with as shown in figure 5. Make sure the wind speed spin
freely.
Figure 5 Figure 6
3.4. Install Batteries
Insert 2XAA batteries in the battery compartment. The LED indicator on the back of
the transmitter will turn on for four seconds and normally flash once every 16
seconds (the sensor transmission update period).
Figure 7 Figure 8
Note: If no LED light up or is lighted permanently, make sure the battery is inserted
the correct way or a proper reset is happened. Do not install the batteries backwards.
