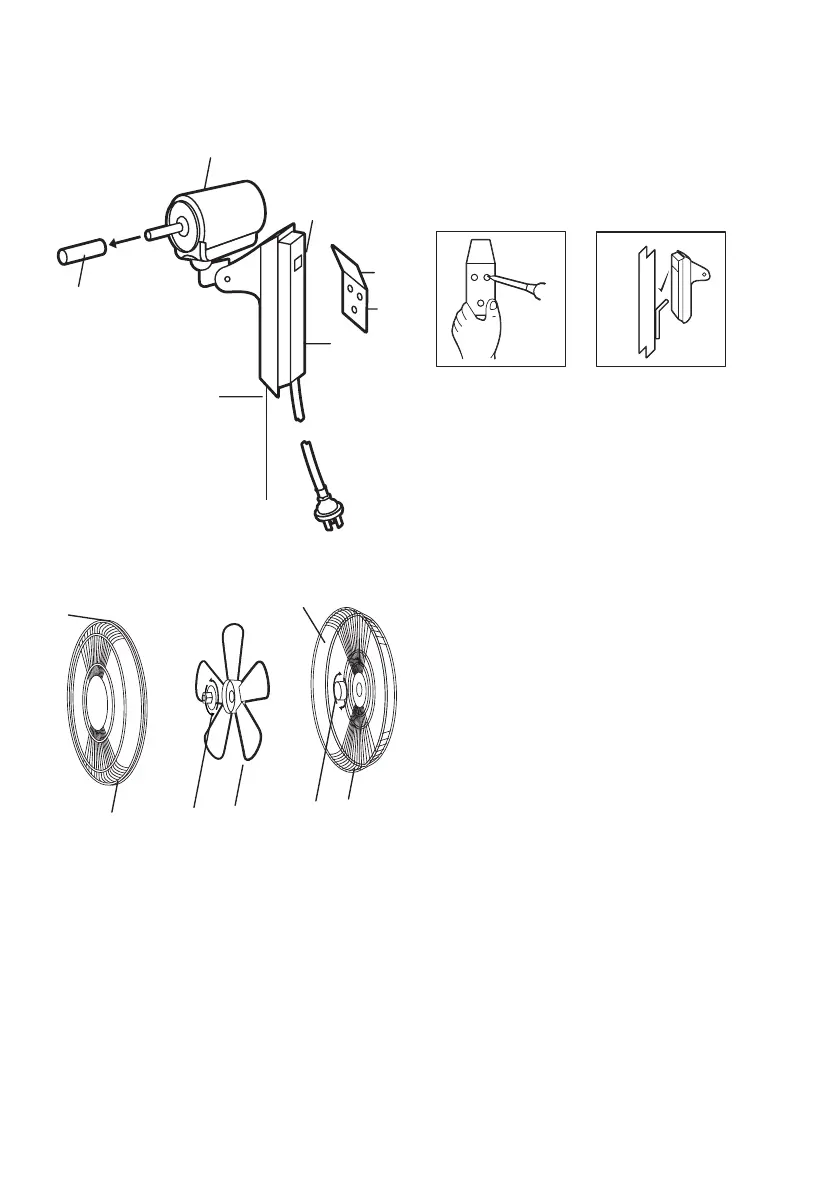

Mount the hanging bracket (2) on the wall with three
screws (1) provided (Fig 1).
Hang the motor and control assembly (3) with the
bracket fix (11) onto the hanging bracket (Fig 2).
Remove the plastic protector (12).
Loosen the rear guard securing ring(5) from the
motor & housing assembly (A).
Position the rear guard (4) firmly to the motor &
housing assembly (A) and fasten by turning the rear
guard securing ring (5) clockwise tightly.
Push the fan blade (6) along the motor shaft. Fasten
securely using the fan blade securing nut (7) with
the spinner by turning anticlockwise.
Attach the front guard (8).
