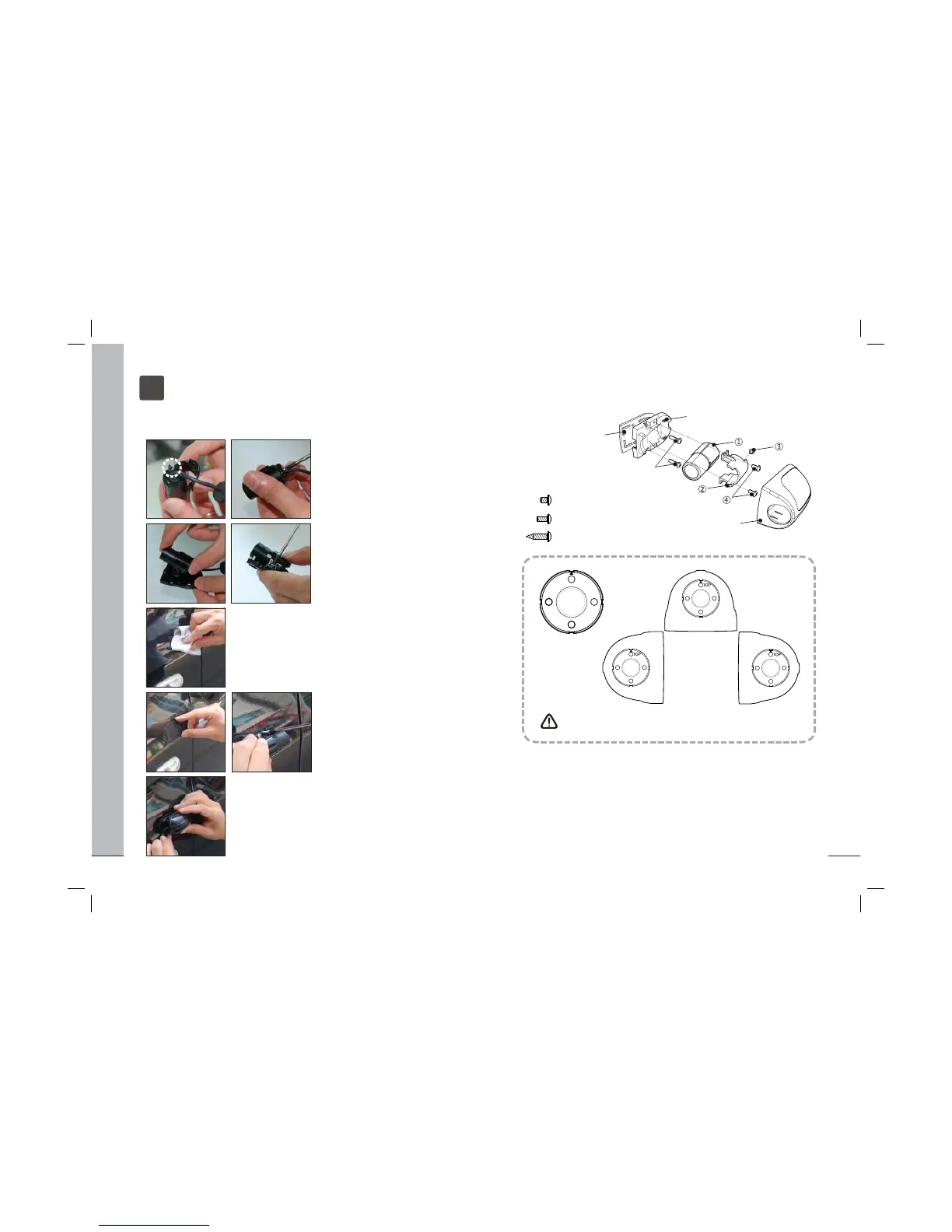

When install CS-110 camera, place “TOP” face to upside.
3 INSTALLATION
TOP
RL
1:1 size
(1) Verify the position of ‘TOP’
which should be upper side
and x it to the lens bracket
with screws.
(2) Then install it to the bottom
bracket.
(3) Select and clean the position for the camera
installation.
(4) Fix the pre-installed camera
using the rubber packing and
screws.
(5) Then cover it with the camera housing like the
picture.
※ Based on the condition and place, the installation procedures
could be varied.
⑤
⑥
⑦
⑧
MACHINE SCREW M3.0 X 4 (1ea)
TAPPING SCREW T2 M3.0 X 6 (2ea)
TAPPING SCREW T1 M3.0 X 12 (2ea)
