447
5. PARAMETERS
5.11 (A) Application parameters
3
4
5
5
5
6
7
8
9
10
• For the Y229 and Y230 signals, assign the functions to output terminals using the Pr.190 to Pr.196 (Output terminal
function selection).
• To monitor the input pressure, set "69" in the monitor selection parameters. (0.1% increments)
NOTE
• When the control switches between the first PID control and second PID control while the set point is changed by the
Pr.1380 setting value or while the Y229/Y230 signal is output, the set point returns to its original value or the signal turns
OFF, and the detection restarts.
• When the PID input pressure control function and the PID upper/lower limit pre-warning function are used simultaneously,
each function may change the set point. When the set point change is attempted by both functions, the change by the PID
input pressure control function has priority.
• When the PID input pressure control function and the PID sleep boost function are used simultaneously, each function may
change the set point. When the set point change is attempted by both functions, the change by the PID input pressure
control function has priority. (The sleep state is established without applying the set point change by the PID sleep boost
function.)
Output signal Pr.190 to Pr.196 setting
Positive logic Negative logic
Y229 229 329
Y230 230 330
Monitor type Parameter setting Communication monitor code
Pr.52, Pr.774 to
Pr.776, and Pr.992
(Operation panel
indication)
Pr.54
(Terminal CA
output)
Pr.158
(Terminal AM
output)
RS-485
communication
dedicated monitor
(hexadecimal)
MODBUS RTU
real time
monitor
PID input pressure value 69 69 69 H45 40269

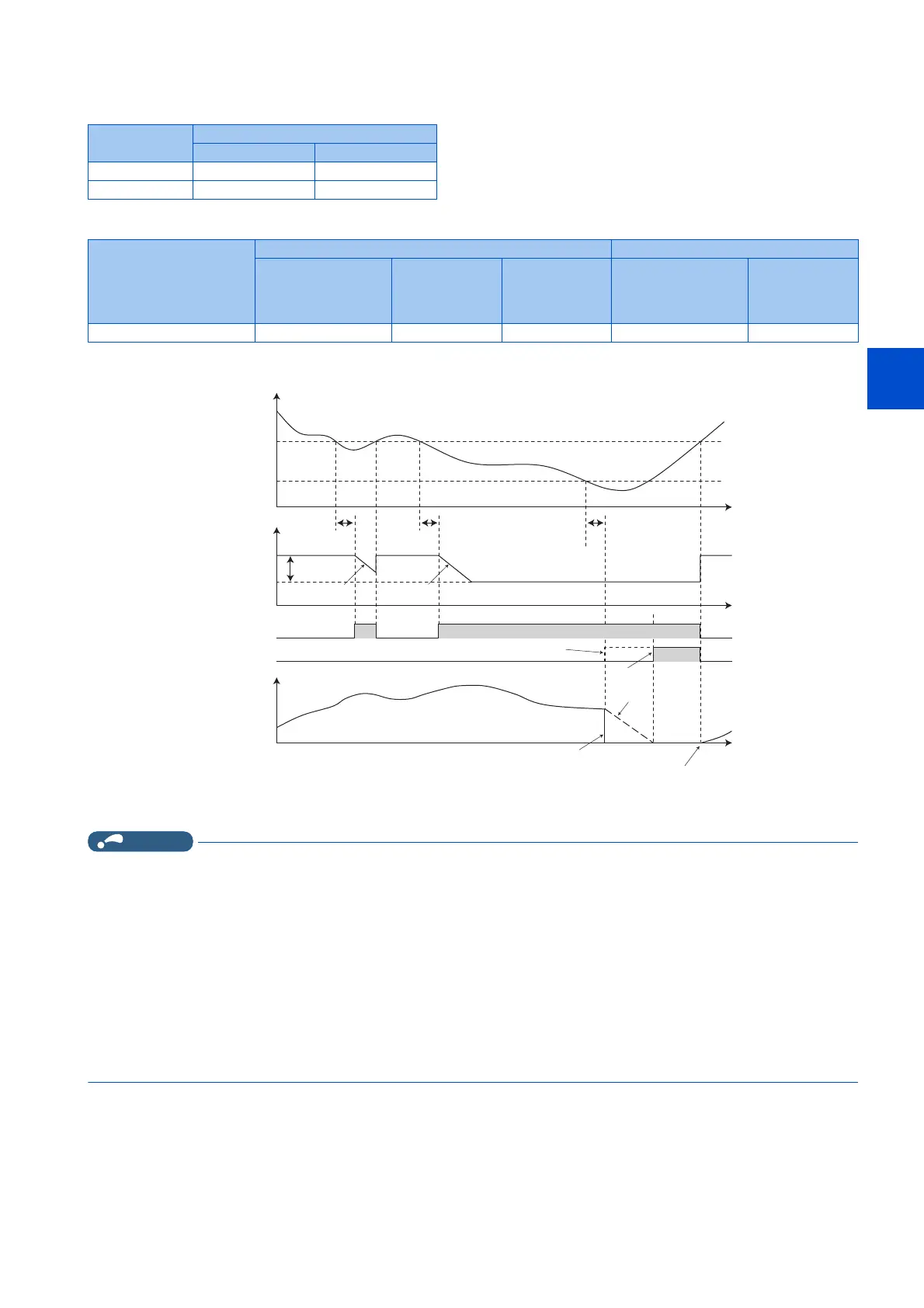

Input pressure
Pr.1380
Input pressure
Input pressure fault level
(Pr.1379)
Time
Time
Time
Set point
Y229
Input pressure warning level
(Pr.1378)
Output frequency
Y230
ON ON
ON
Pr.1370
Pr.1370 Pr.1370
Pr.1370 Pr.1370
Pr.1370
Pr.1373
Pr.1373
Output shutoff
(Pr.1381 = "0")
When Pr.1381 = "0"
When Pr.1381 = "1"
Deceleration stop
(Pr.1381 = "1")
Deceleration stop
(Pr.1381 = "1")
Deceleration stop
(Pr.1381 = "1")
When Pr.1381="1", operation can be
restarted after the input pressure
reaches or exceeds the Pr.1378 setting.
For reverse action
