CEILING CASSETTE Inverter Heat PumpM series

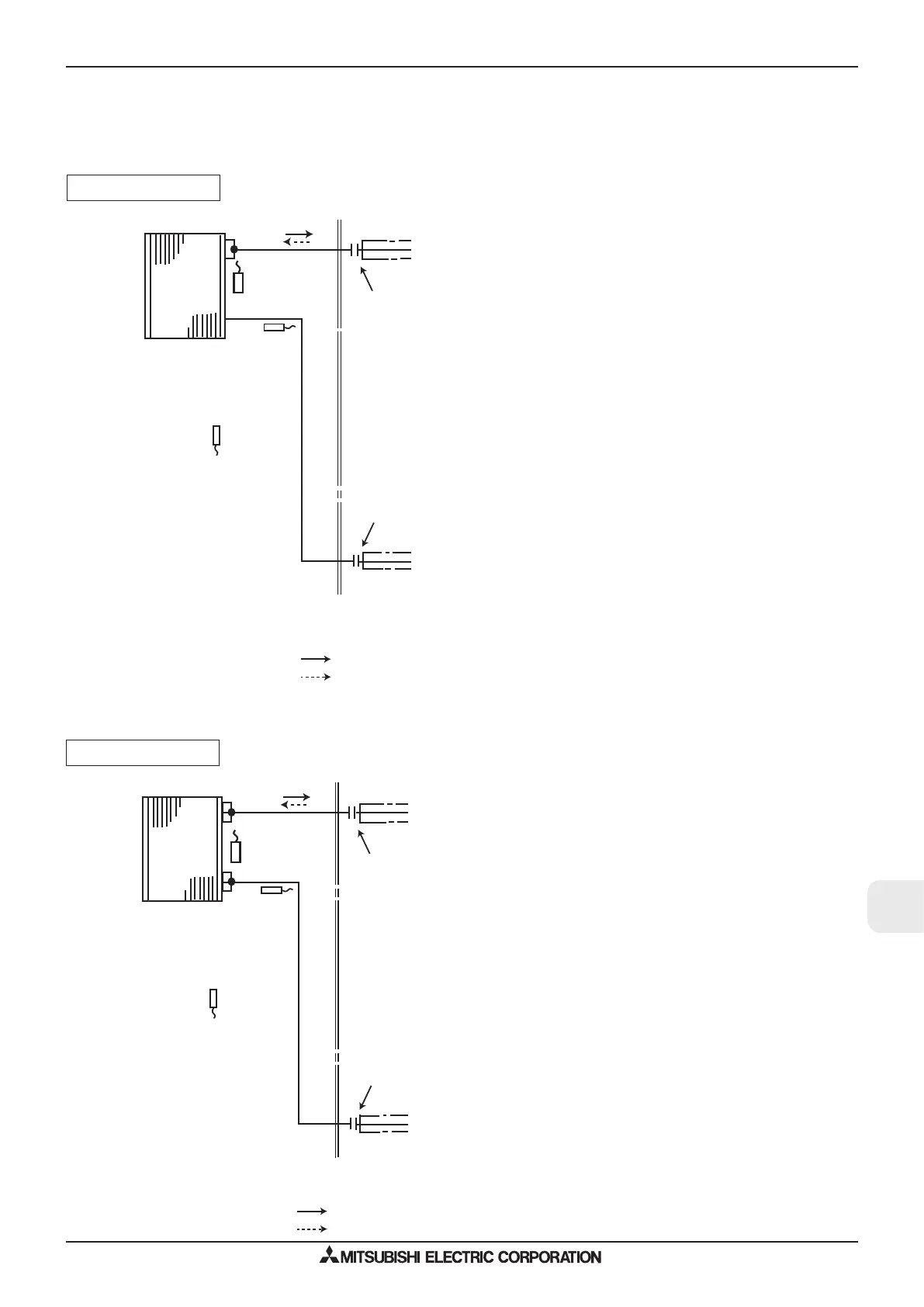

REFRIGERANT SYSTEM DIAGRAM
CEILING CASSETTE
C-279
C.3.4.1 Inverter Heat Pump
C.3.4 REFRIGERANT SYSTEM DIAGRAM
Refrigerant flow in cooling
Refrigerant flow in heating
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT13 (sub)
Flared connection
Refrigerant pipe :9.52
(with heat insulator)
Refrigerant pipe :6.35
(with heat insulator)
Indoor coil
thermistor
RT12 (main)
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT13 (sub)
Flared connection
Refrigerant flow in cooling
Refrigerant flow in heating
Refrigerant pipe :12.7
(with heat insulator)
Refrigerant pipe :6.35
(with heat insulator)
Indoor coil
thermistor
RT12,RT14,
RT15 (main)
Unit : mm
INDOOR UNIT
INDOOR UNIT
MLZ-KA25VA
MLZ-KA35VA
MLZ-KA50VA
For MXZ connection
For MXZ connection

Mitsubishi Electric MFZ-KA50VA Specifications

General

Cooling Capacity	5.0 kW
Power Supply	220-240 V, 50 Hz
Seasonal Energy Efficiency Ratio (SEER)	6.10
Operating Temperature Range (Cooling)	-10°C to 46°C
Operating Temperature Range (Heating)	-15°C to 24°C
