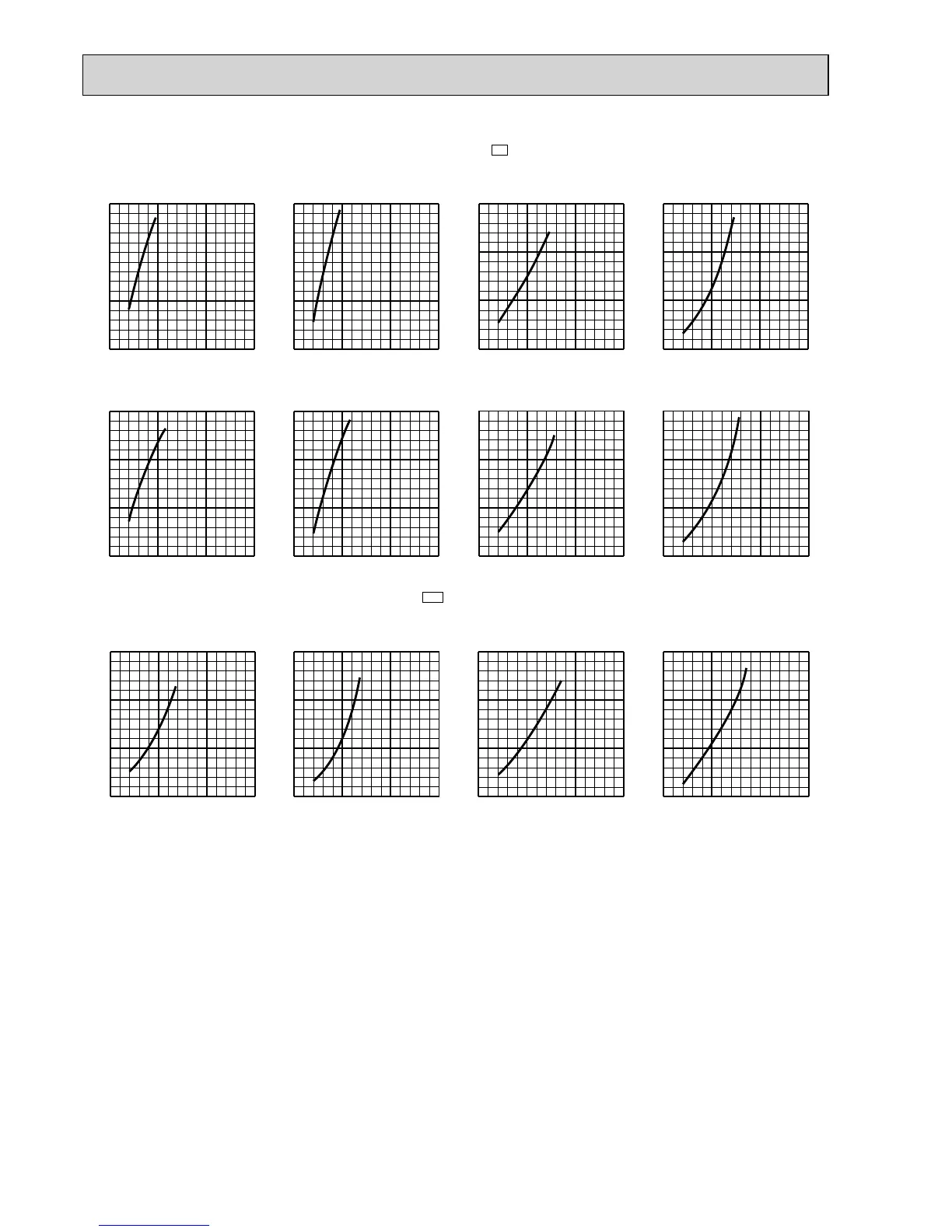

10-2. CAPACITY AND INPUT CORRECTION BY INVERTER OUTPUT FREQUENCY
(OUTDOOR UNIT: MXZ-2A30VA/2A40VA -
E2
)
0 50 100 150
0.5
1.0
1.5
<COOL>Capacity
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<COOL>Total input
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<HEAT>Capacity
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<COOL>Capacity
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<HEAT>Capacity
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<COOL>Capacity
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<HEAT>Capacity
Frequency
Hz
1. 22-class unit in single operation
2. 25-class unit in single operation
3. 35-class unit in single operation
0 50 100 150
0.5
1.0
1.5
<HEAT>Total input
Frequency
Hz
050100150
0.5
1.0
1.5
<COOL>Total input
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<HEAT>Total input
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<COOL>Total input
Frequency
Hz
0 50 100 150
0.5
1.0
1.5
<HEAT>Total input
Frequency
Hz
(OUTDOOR UNIT: MXZ-2A40VA -
E2
)
