176
APPX

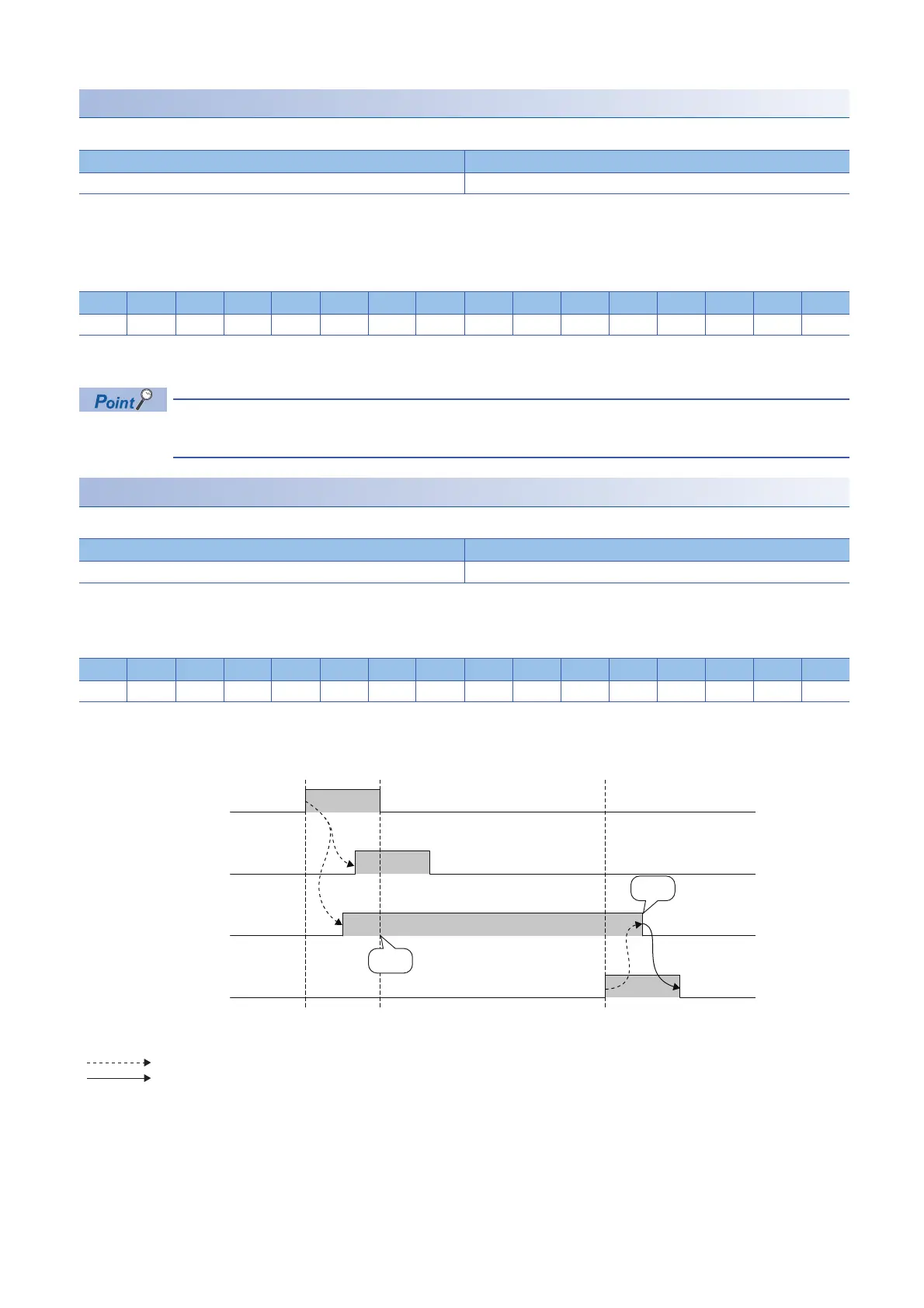

Appendix 3 Remote Register
Output Y OFF information
■Device No.
■Description
Whether output Y has been turned off or not can be checked with Output Y OFF information (RWr1F).
The amount of time delay from when Output Y OFF information (RWr1F) changes until the external output accordingly
changes is not more than output response time.
Output Y OFF information (RWr1F) can be cleared by using Output Y OFF information clear request
(RWw1F).
Output Y ON information clear request
■Device No.
■Description
This remote register area is used to clear Output Y ON information (RWr1C).
Clear processing continues while the bit of Output Y ON information clear request (RWw1C) is on.
For the timing of turning on and off the remote register, refer to the following.
Name Device No.
Output Y OFF information RWr1F
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
YF YE YD YC YB YA Y9 Y8 Y7 Y6 Y5 Y4 Y3 Y2 Y1 Y0
Off: Output Y has never been turned off.
On: Output Y has been turned off.
Name Device No.
Output Y ON information clear request RWw1C
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
YF YE YD YC YB YA Y9 Y8 Y7 Y6 Y5 Y4 Y3 Y2 Y1 Y0
Off: Output Y ON information is not cleared.
On: Output Y ON information is cleared.
(1) Remains on even after Y0 turns off.
(2) Turns off when the clear request turns on.
Controlled by the safety remote I/O module
Controlled by the program
OFF OFF
OFF
OFF
OFF
ON
ON
ON
(2)
OFF OFF
ON
OFF
(1)
External output signal Y0
Output Y ON information Y0
(RWr1C.b0)
Output Y ON information
clear request Y0 (RWw1C.b0)
Remote output signal RY0
