10
en
[Heat pump type]
[Cooling Only type]
Operation Monitor Display
GREEN ORANGE
STOP
The display will appear orange for 5
seconds following the switch operation
as indicated at the left, and then it will
return to the regular display.
COOL
HEAT
Turning off Lighting
* Operation details at the time of emergency operation are as shown
below.
Note that over the first 30 minutes or so, the temperature adjustment
will not function and the unit will be in continuous operation with the fan
on high.
Operation Mode COOL HEAT
Set Temperature 24°C, 75°F 24°C, 75°F
Fan Speed High High
Airflow Direction Up and Down Step 1 Step 5
Cooling
Heating Stop
Cooling Stop

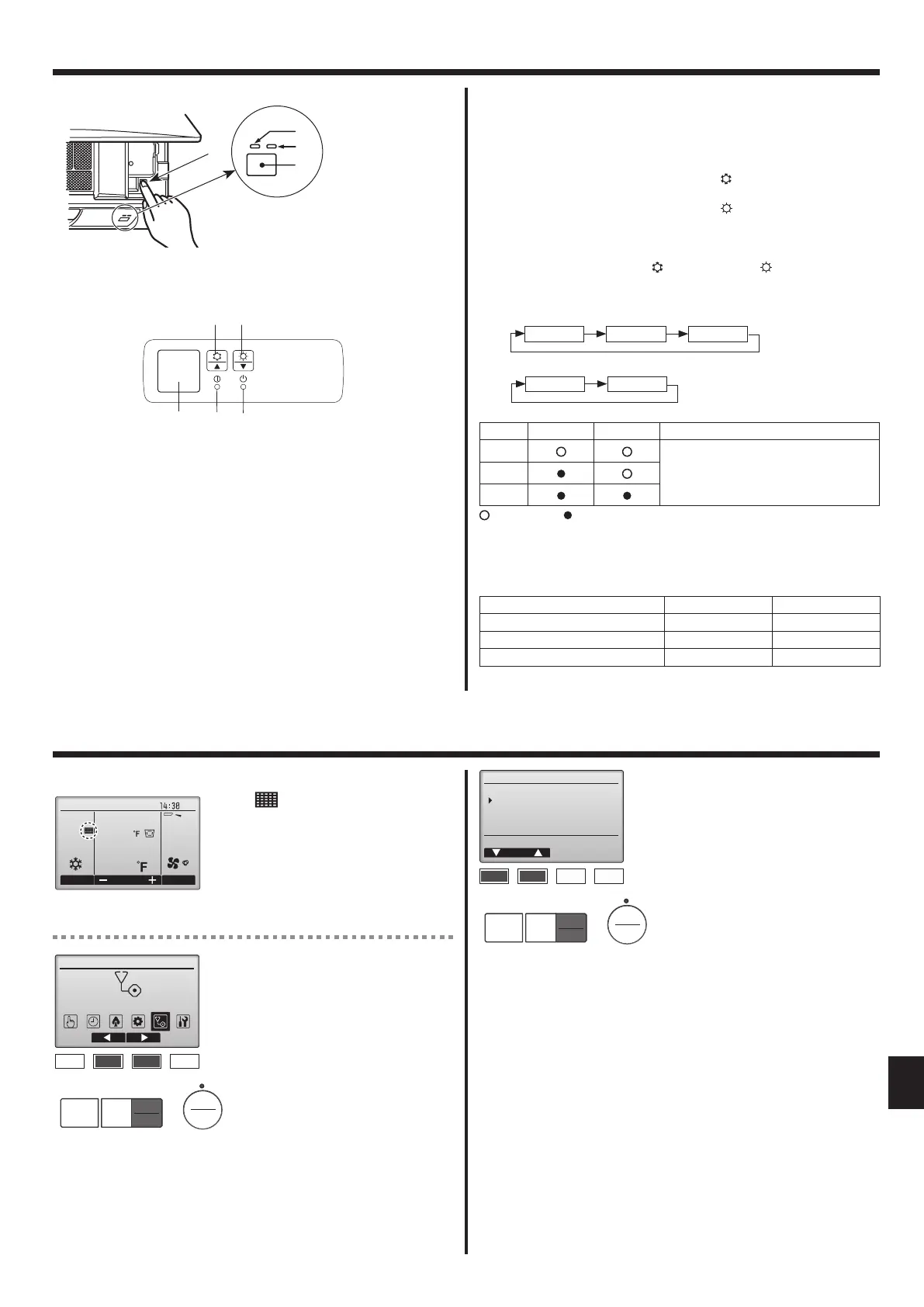

When the IR wireless remote controller cannot be used
When the batteries of the IR wireless remote controller run out or the IR
wireless remote controller malfunctions, the emergency operation can be
done using the emergency buttons.
[Fig. 4-1] A DEFROST/STAND BY lamp (Orange)
B Operation lamp (Green)
C Emergency operation switch (cooling/heating)
D Receiver
• Each press of the emergency operation switch will toggle the
operation mode.
• Check “COOL/HEAT” with the operation monitor display. (The display
will appear orange for 5 seconds after the switch operation.)
C
B
A
D
D C
BE A
(For TPCA0A
.
1KA70✱)
(For TPKA0A
.
1KA70✱)
Fig. 4-1
Fig. 4-2
[Fig. 4-2] A DEFROST/STAND BY lamp
B Operation lamp
C Emergency operation switch (heating)
D Emergency operation switch (cooling)
E Receiver
Starting operation
• To operate the cooling mode, press the
button D for more than 2
seconds.
• To operate the heating mode, press the
button C for more than 2
seconds.
Stopping operation
• To stop operation, press the
button D or the button C for more
than 2 seconds.
4. Emergency Operation for IR Wireless Remote Controller
■ Filter information
will appear on the Main display
in the Full mode when it is time to
clean the lters.
Wash,clean,orreplacethelters
when this sign appears.
Refer to the indoor unit Instruc-
tions Manual for details.
Select “Filter information” from the
Maintenance menu, and press the
[SELECT/HOLD] button.
Select “Maintenance” from the Main
menu, and press the [SELECT/
HOLD] button.
Main Main menu
Maintenance
MENU
ON
OFF
RETURN
SELECT
HOLD
Main menu: RETURN
Cursor
Maintenance menu
Error information
Filter information
Cleaning
MENU
ON
OFF
RETURN
SELECT
HOLD
5. Care and Cleaning
83
83
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
VG79Y108H01_en.indd 10 2019/08/07 9:36:20
