IR Wireless Remote-Controller
F

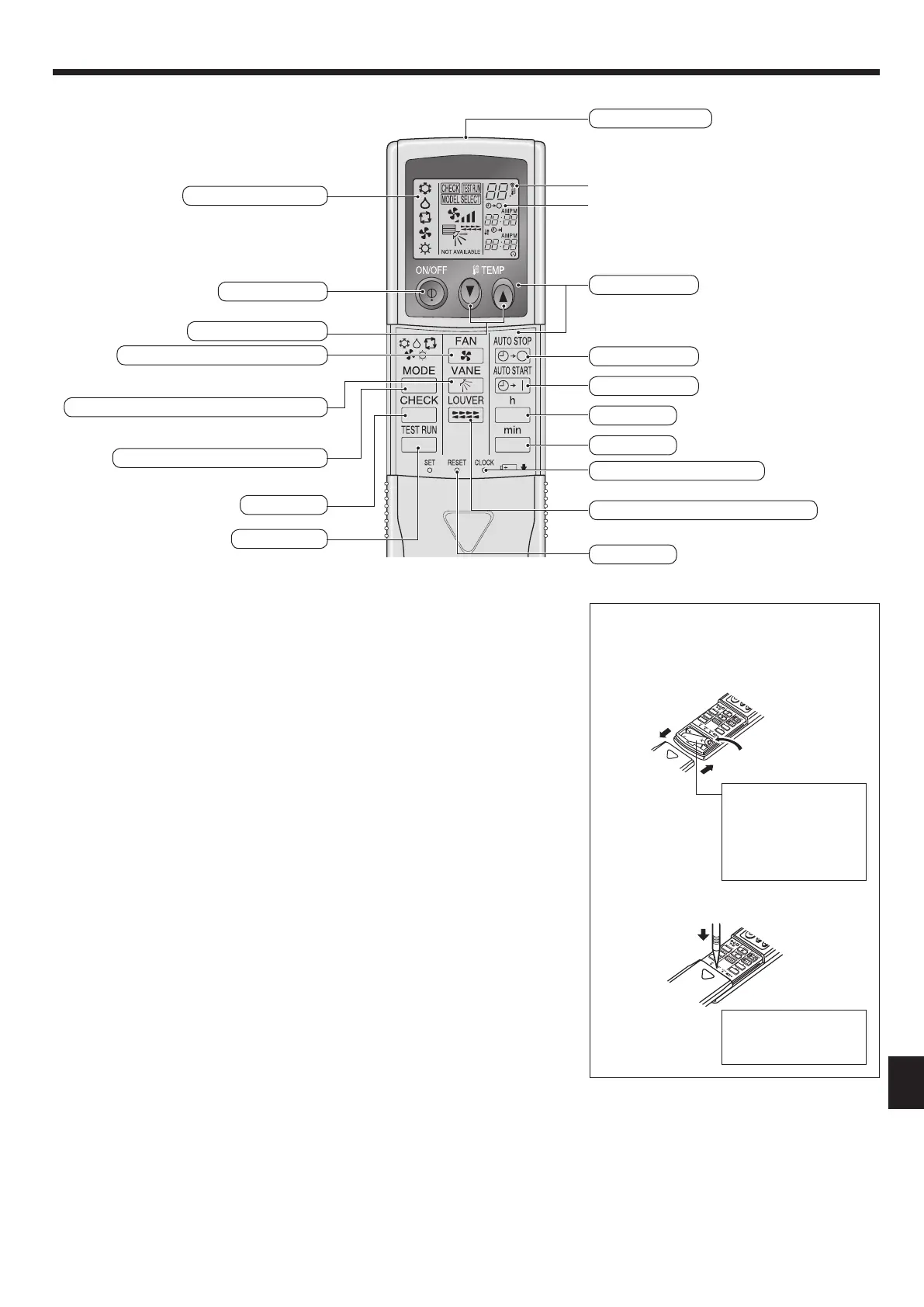

2. Parts Names
Transmission indicator
Timer indicator
* For explanation purposes, all of the items
that appear in the display are shown.
* All items are displayed when the Reset
button is pressed.
Remote controller display
ON/OFF button
Temperature set buttons
Fan Speed button (Changes fan speed)
Airflow button (Changes airflow up/down direction)
Mode button (Changes operation mode)
Check button
Test Run button
Transmission area
Operation areas
Timer Off button
Timer On button
Hour button
Minute button
Set Time button (Sets the time)
Louver button (Changes left/right direction)
Reset button
Battery installation/replacement
1. Remove the top cover, insert two AAA
batteries, and then install the top cover.
2. Press the Reset button.
1
2
3
Top cover
Two AAA batteries
Insert the negative
(–) end of each
battery first. Install the
batteries in the correct
directions (+, –)!
Press the Reset button
with an object that has
a narrow end.
Note: (Only for IR wireless remote controller)
When using the IR wireless remote controller, point it towards the receiver on the indoor
unit.
If the IR wireless remote controller is operated within approximately two minutes after
power is supplied to the indoor unit, the indoor unit may beep twice as the unit is
performing the initial automatic check.
The indoor unit beeps to confirm that the signal transmitted from the IR wireless remote
controller has been received. Signals can be received up to approximately 7 meters, 275
19/32 inch in a direct line from the indoor unit in an area 45° to the left and right of the
unit. However, illumination such as fluorescent lights and strong light can affect the ability
of the indoor unit to receive signals.
If the operation lamp near the receiver on the indoor unit is flashing, the unit needs to be
inspected. Consult your dealer for service.
Handle the IR wireless remote controller carefully! Do not drop the IR wireless remote
controller or subject it to strong shocks. In addition, do not get the IR wireless remote
controller wet or leave it in a location with high humidity.
To avoid misplacing the IR wireless remote controller, install the holder included with
the IR wireless remote controller on a wall and be sure to always place the IR wireless
remote controller in the holder after use.
