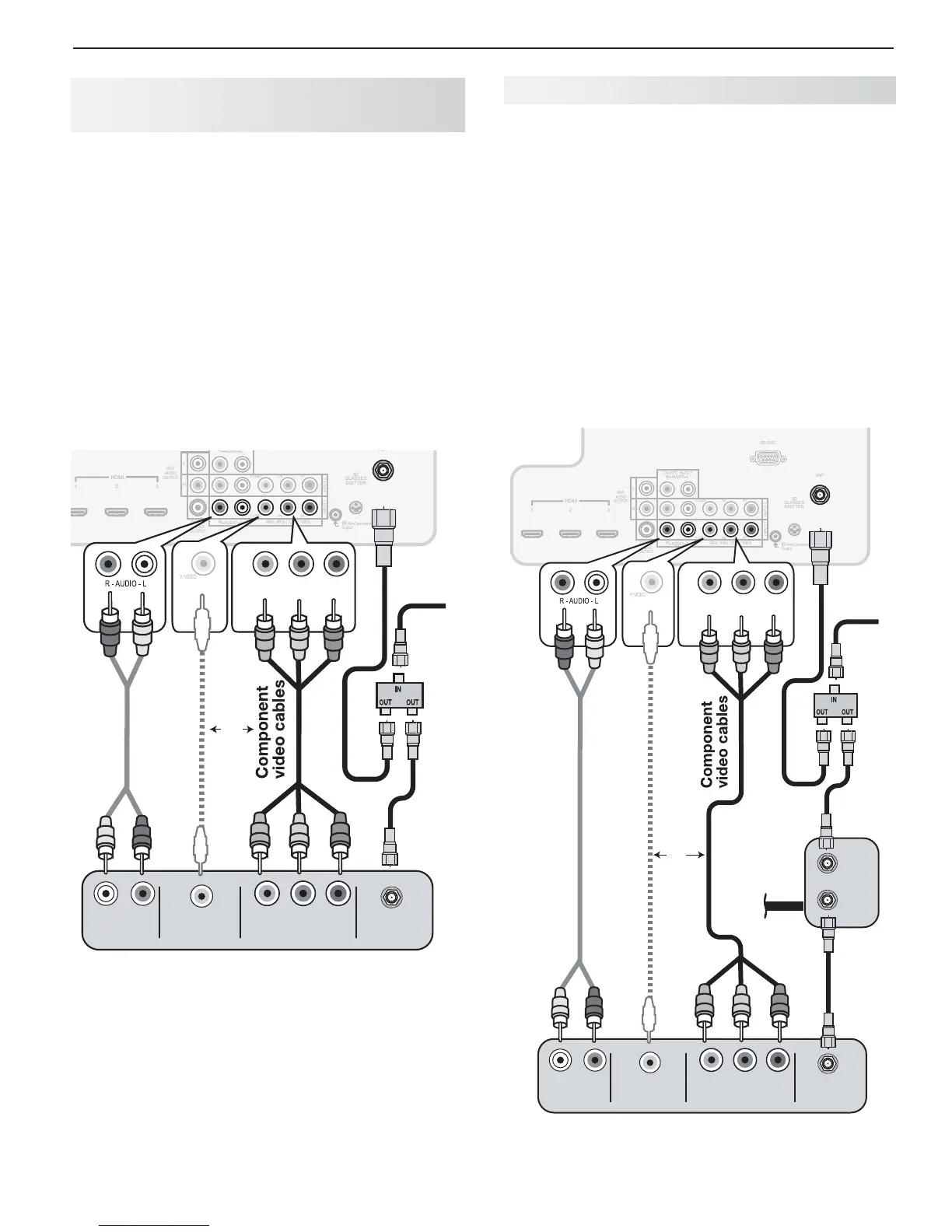

2. TV Connections 19
VCR or DVD Recorder to an
Antenna or Wall Outlet Cable
Required:
Two-way RF splitter
Two coaxial cables
Right and left analog audio cables
Component or composite video cables
Note:
â˘î Useîcompositeîvideoîonlyîifîcomponentî
video or HDMI are unavailable. For an
HDMI connection between the TV and
recorder, see page 17.
â˘î Ifîyourîrecordingîdeviceîhasîanîanalog-onlyî
tuner, you must use a digital converter box
to enable recording of digital broadcasts.
1
2
3
HDMI
AVR
AUDIO
OUTPUT
L
R
Pb
Y/ VIDEO
Pr
Pb
Pr
INPUT 2
INPUT 1
DIGITAL
AUDIO
OUTPUT
DVI/PC
AUDIO
(480i / 480p / 720p / 1080i)
L
R
L
R
INPUT
AUDIO
Y/ VIDEO
3D
GLASSES
EMITTER
ANT
RS-232C
IR-
NetCommand
Output
R
ANT
Y/ VIDEO
AUDIO OUT
COMPOSITE
VIDEO OUT
COMPONENT
VIDEO OUT
L
R
Pb
Pr
Y/ VIDEO
Y/ VIDEO
ANTENNA
IN
RF Splitter
DVD Recorder or VCR
4.
TV main panel
Audio
cables
Composite
video cable
or
VCR or DVD Recorder to a Cable Box
Required:
Two-way RF splitter
Three coaxial cables
Right and left audio cables
Composite or component video cables
Video and audio cables required to connect the TV
to the cable box.
Notes: Use composite video if only if component video
or HDMI are unavailable. For an HDMI connec-
tion between the TV and recorder, see page 17.
When using this connection conďŹguration, it is
possible to view live cable programs through the
recording device. For best picture quality always
view live cable programs directly from the TV input
connected to the cable box device.
1
2
3
HDMI
AVR
AUDIO
OUTPUT
L
R
Pb
Y/ VIDEO
Pr
Pb
Pr
INPUT 2
INPUT 1
DIGITAL
AUDIO
OUTPUT
DVI/PC
AUDIO
(480i / 480p / 720p / 1080i)
L
R
L
R
INPUT
AUDIO
Y/ VIDEO
3D
GLASSES
EMITTER
ANT
RS-232C
IR-NetCommand
Output
R
ANT
Y/ VIDEO
AUDIO OUT
COMPOSITE
VIDEO OUT
COMPONENT
VIDEO OUT
L
R
Pb
Pr
Y/ VIDEO
Y/ VIDEO
IN
OUT
ANTENNA
IN
RF Splitter
Cable
Box
Audio and
video from
cable box
directly to TV
or
DVD Recorder or VCR
TV main panel
Audio
cables
Composite
video cable
To Next Page
