Page 32
MODELS: WD-60C10 / WD-65C10 / WD-73C10 / WD-60638 / WD-65638 / WD-73638 /
WD-60738 / WD-65738 / WD-73738 / WD-82738 / WD-65838 / WD-73838 / WD-82838
Service Adjustments include Adjustment Procedures and Data Transfer Functions.
Electrical Adjustments (there are no mechanical adjustments)
• Horizontal and Vertical Centering Adjustment
• Index Delay Adjustment
• Geometry Alignment
• Data Transfer Functions
Test Equipment and Test Patterns
• Remote Control
• Internally generated Test Patterns
• No external test equipment or pattern generators are required.

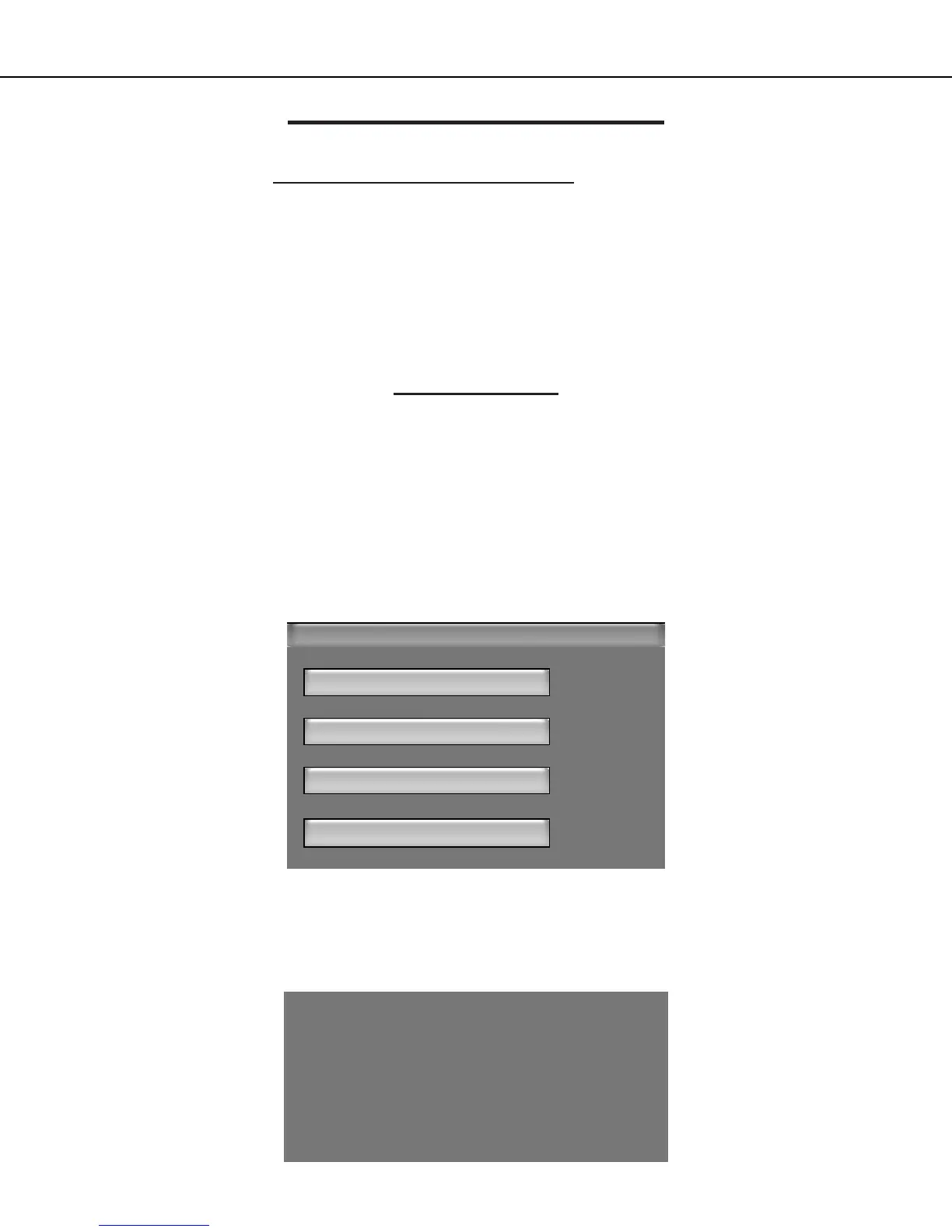

SERVICE MENU
The Service Menu is used for all service adjustments.
Service adjustments can only be performed using the remote control.
1. Activating the Service Menu
V43C & V43
For the V43C & V43 chassis, all service functions except Data Transfer are included under the Service Menu.
1. Press the <MENU> button on a remote control. (The Customer Menu will appear.)
2. Press the buttons <2-4-7-0>. (The Service Menu will appear.)
V43+ & V43++
1. Press the <MENU> button on a remote control. (The Customer Menu will appear.)
2. Press the buttons <2-4-5-7>. (The Service Menu will appear.)
SERVICE ADJUSTMENTS
<MENU> <2-4-5-7>
SERVICE
TVM
1. HVPOS
-3
4
V43+ & V43++Service Menu
V43C & V43 Service Menu
<MENU><2-4-7-0>
Service Menu
1. Information
2. Reset All Settings
3. Calibration
4. Test Pictures
To Next Page
