192
-
Service
'13 • HM-T-193

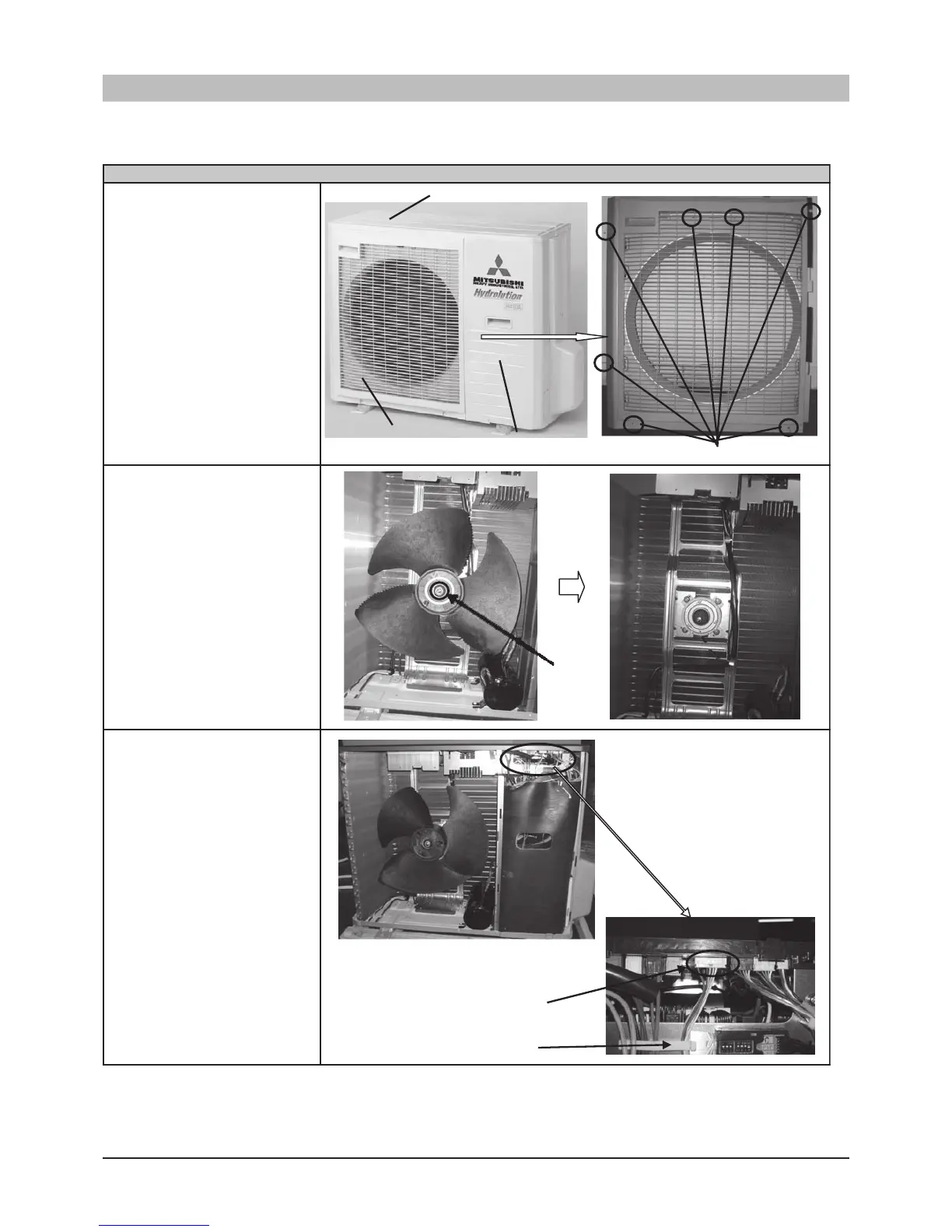

Fan and fan motor (FMo1)
1.
Loosen the screws and
remove the top panel and
service panel first.
2. Loosen 5 screws and
remove the front panel
including fan grille.
3.
Loosen the nut and remove
the fan propeller
4.
Disconnect the connector
of CNFAN
5.
Detach the clamp
CNFAN
Clamp
Nut
7 screws
Top panel (5 screws)
Service panel
(5 screws)
Front panel
FDCW71VNX
Component replacement
