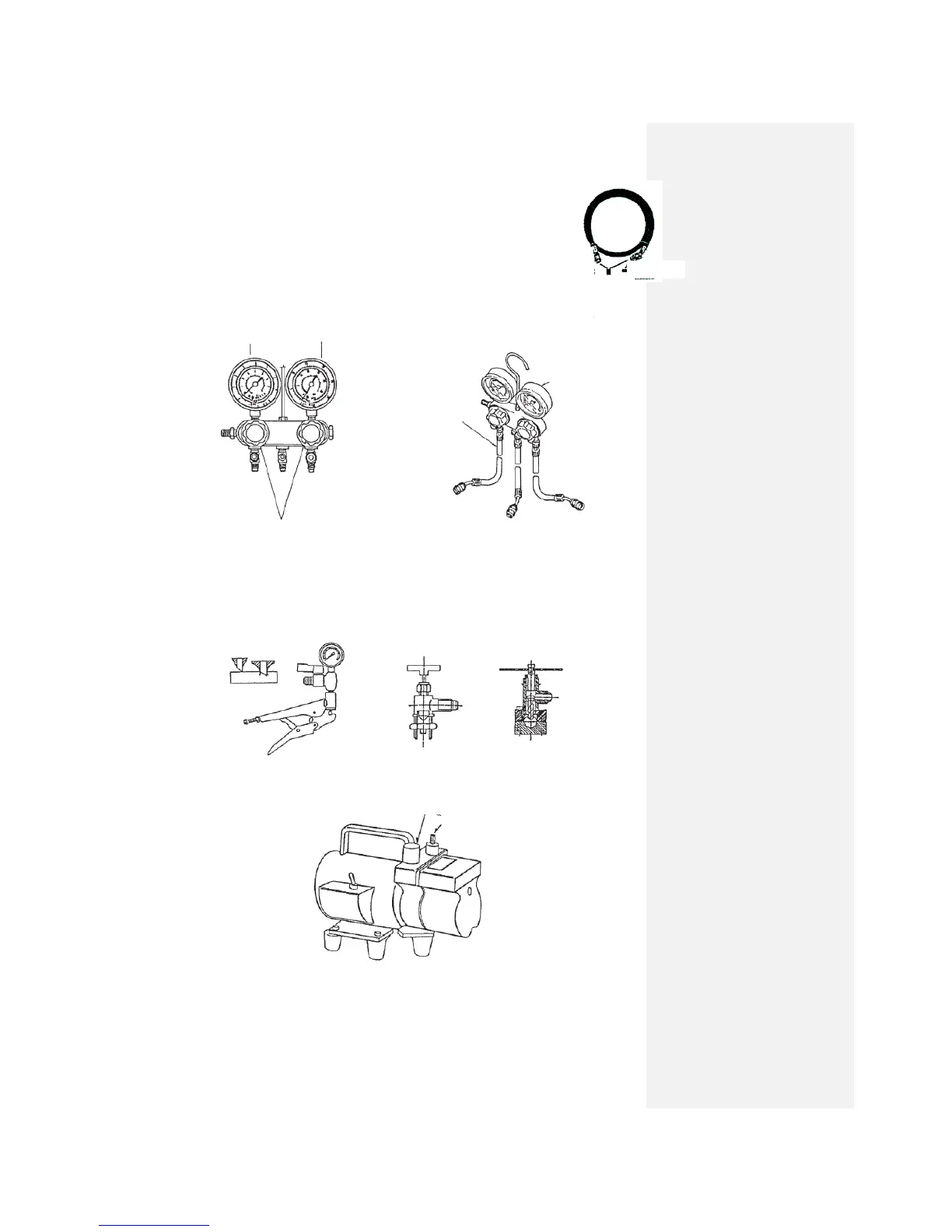

b) Charge hose (pressure resistant fluorocarbon hose) and sealing ring
● Thickness 1/48, multiple lengths available
● Hose with the pressure resistance property higher than 5.2MPa (52kg/cm
2
G)
● In general, only one end has fixture.
(4) Manifold pressure gauge
● The most important servicing tool for coolers and air conditioners
● It is widely used to check gas pressure when R410A is being charged/recovered.
(5) Conduit needle valve
a) To recover R410A from the equipment without gas charging or recovery port, use the tool
to drill a hole in the copper pipe. There are a number of types available on the market which
have different names.
b) The edge of needle may be damaged easily, so such valve should be treated as
semi-supplies.
c) When the vacuum level rises, air will be absorbed into the hole easily. Therefore, please
operate carefully.
(6) Vacuum pump
For evacuating the recovery device and the recovery cylinder.
Hose
sealing ring
Fixture
Compound
pressure gauge
Pressure gauge
Disconnecting valve
Charge hose
Manifold
pressure gauge
Punch pliers
Needle valve
Air inlet
Vent
