7-44
Vehicle care and maintenance
7
*: Fusible link
● Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
● The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.

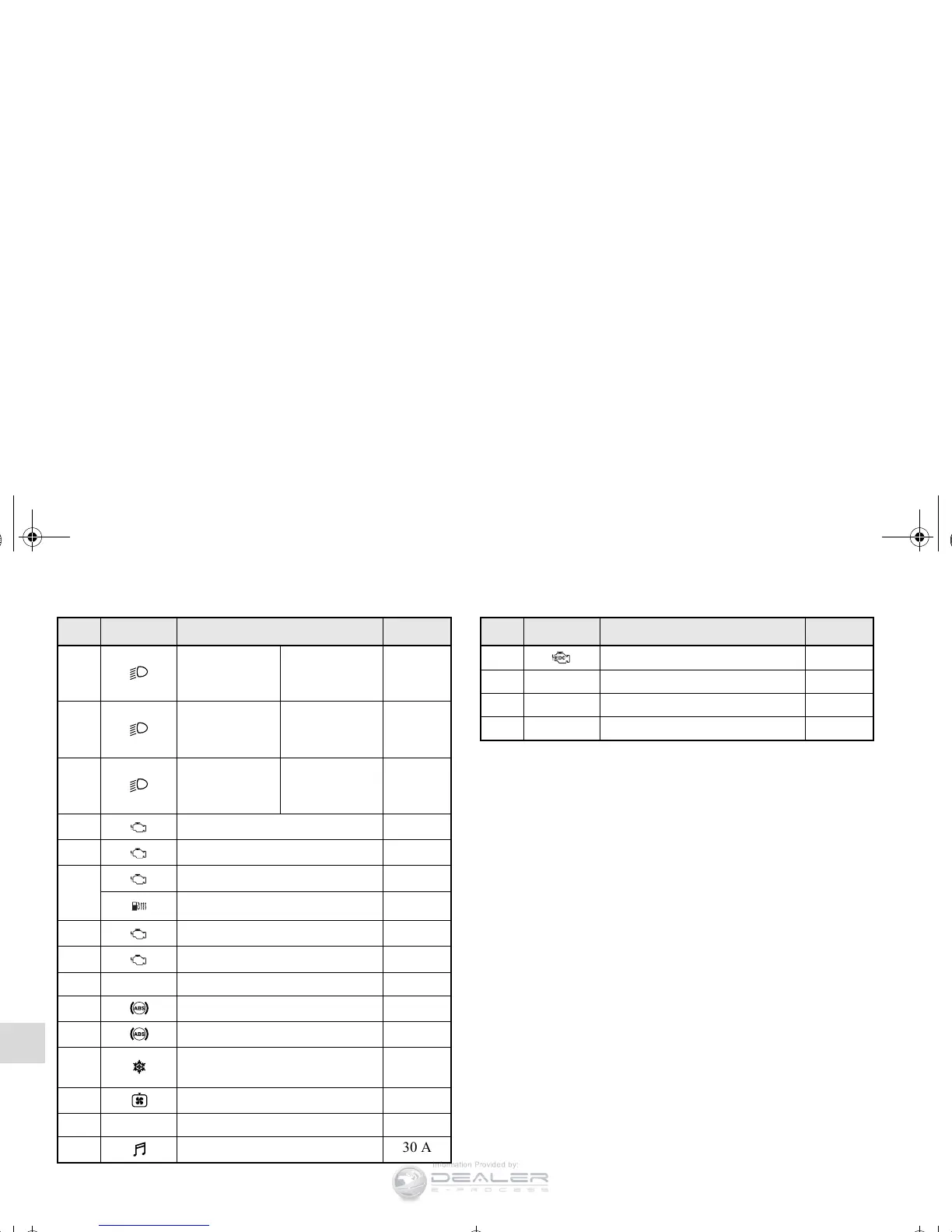

17
Headlight
(low beam)
(right)
Discharge 20 A
18
Headlight
(low beam)
(left)
Halogen 10 A
19
Headlight
(low beam)
(right)
Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22
ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28
Air conditioning condenser fan
motor
30 A*
29 Radiator fan 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 A
No. Symbol Electrical system Capacity
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 A
No. Symbol Electrical system Capacity
BK0150700US.book 44 ページ ２０１２年３月２２日 木曜日 午後６時４６分
To Next Page
