Vehicle care and maintenance
7-43
7

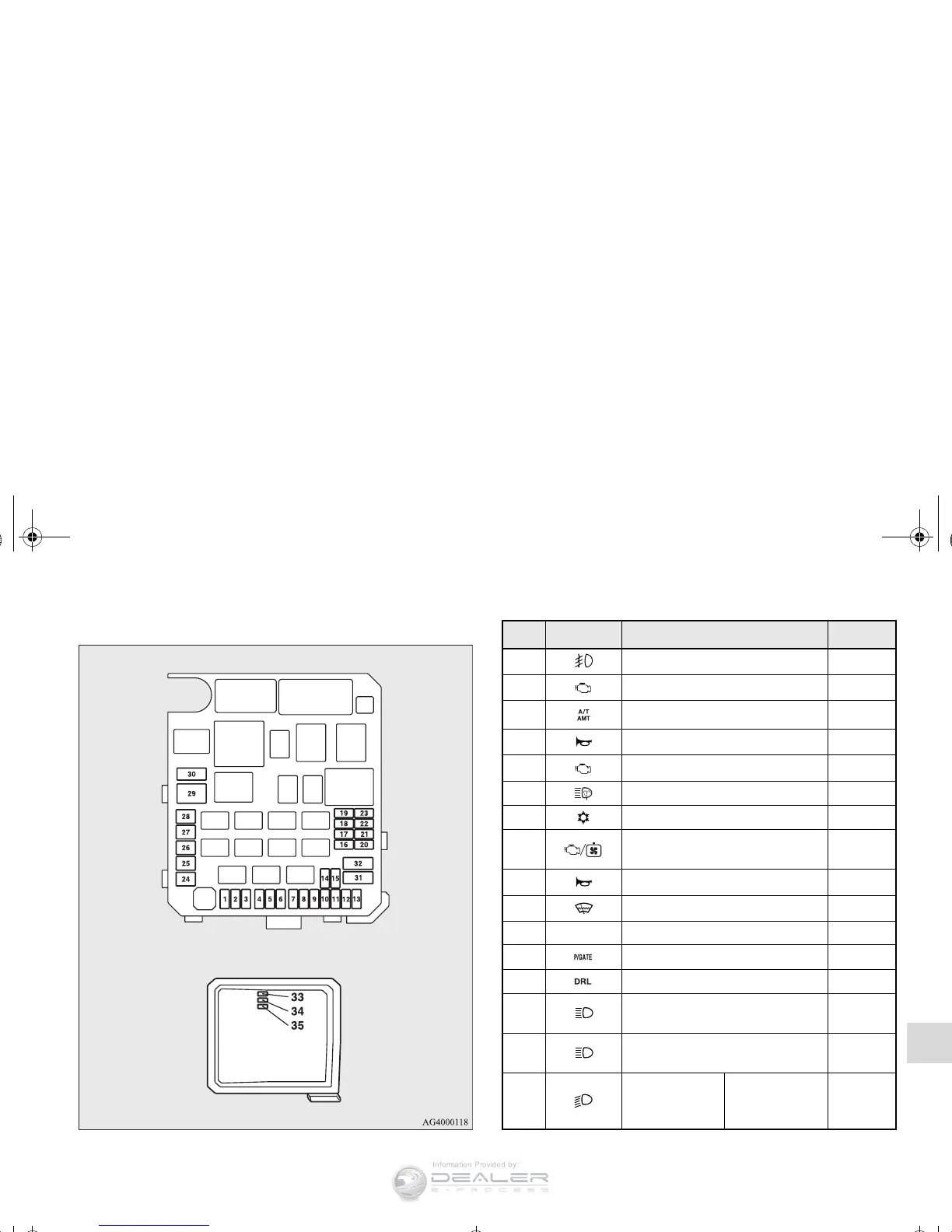

Engine compartment fuse location table
Engine compartment fuse location
Behind the fuse block cover
No. Symbol Electrical system Capacity
1 Front fog lights 15 A
2 Engine 7.5 A
3 Automatic transaxle 20 A
4 Horn 10 A
5 Alternator 7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8
ETV/Oil cooler fan
(Twin Clutch SST)
15 A
9 Security horn 20 A
10 Wiper deicer 15 A
11 — — —
12 Power gate 30 A
13 Daytime running lights 10 A
14
Headlight
(high beam) (left)
10 A
15
Headlight
(high beam) (right)
10 A
16
Headlight
(low beam)
(left)
Discharge 20 A
BK0150700US.book 43 ページ ２０１２年３月２２日 木曜日 午後６時４６分
