*: Fusible link
● Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
● The table above shows the main equipment corresponding
to each fuse.

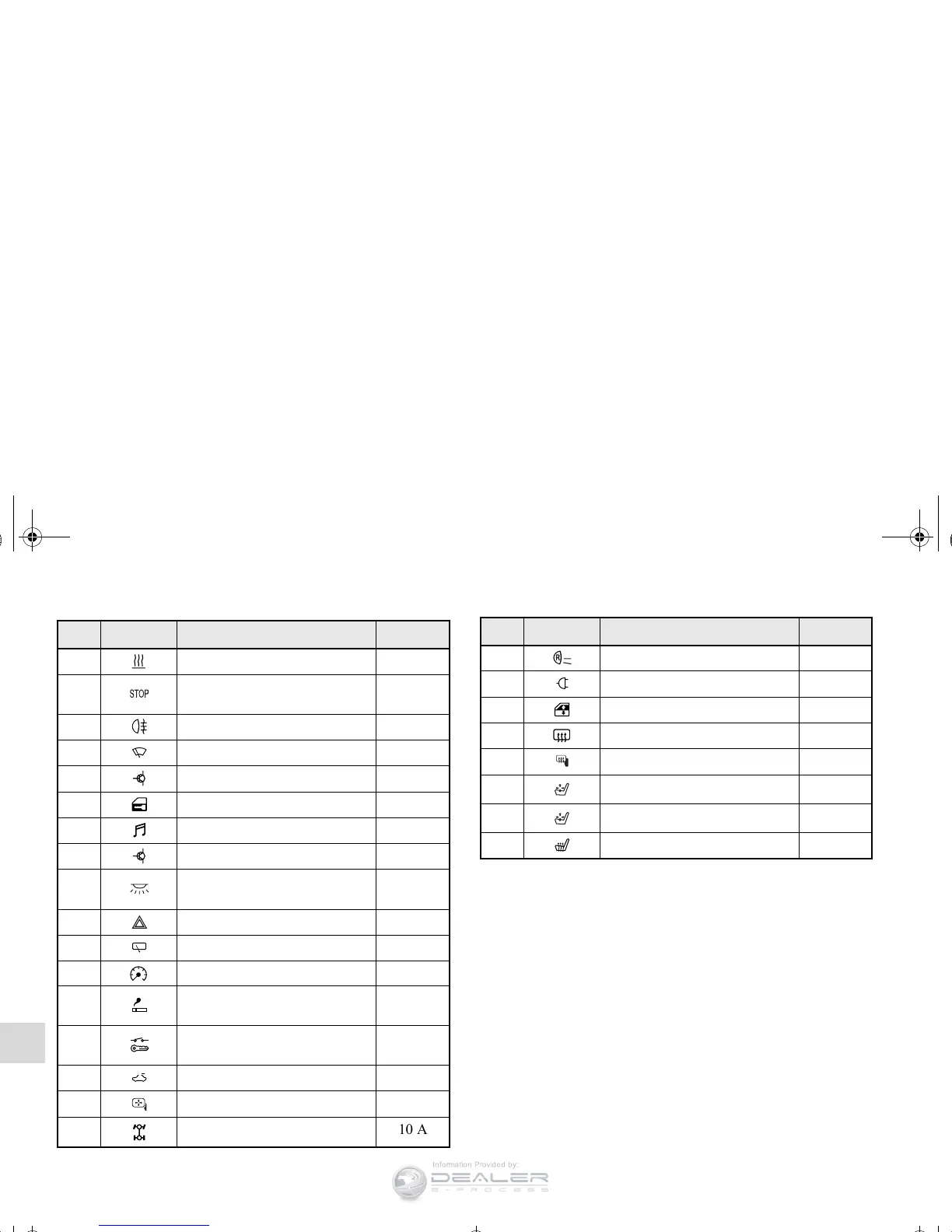

No. Symbol Electrical system Capacity
1 Heater 30 A*
2
Stop lights
(Brake lights)
15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7 Radio 15 A
8 Control unit relay 7.5 A
9
Interior lights
(Dome lights)
15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13
Cigarette lighter
/Accessory socket
15 A
14
Ignition
Switch
10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22 Heated door mirror 7.5 A
23 Passenger’s power seat 25 (20) A
24 Driver’s power seat 25 (20) A
25 Heated seats 30 A
No. Symbol Electrical system Capacity
