Mitsubishi 2013 Outlander

7-64
Vehicle care and maintenance
7
4. To install the bulb, perform the removal steps in reverse.
N
OTE

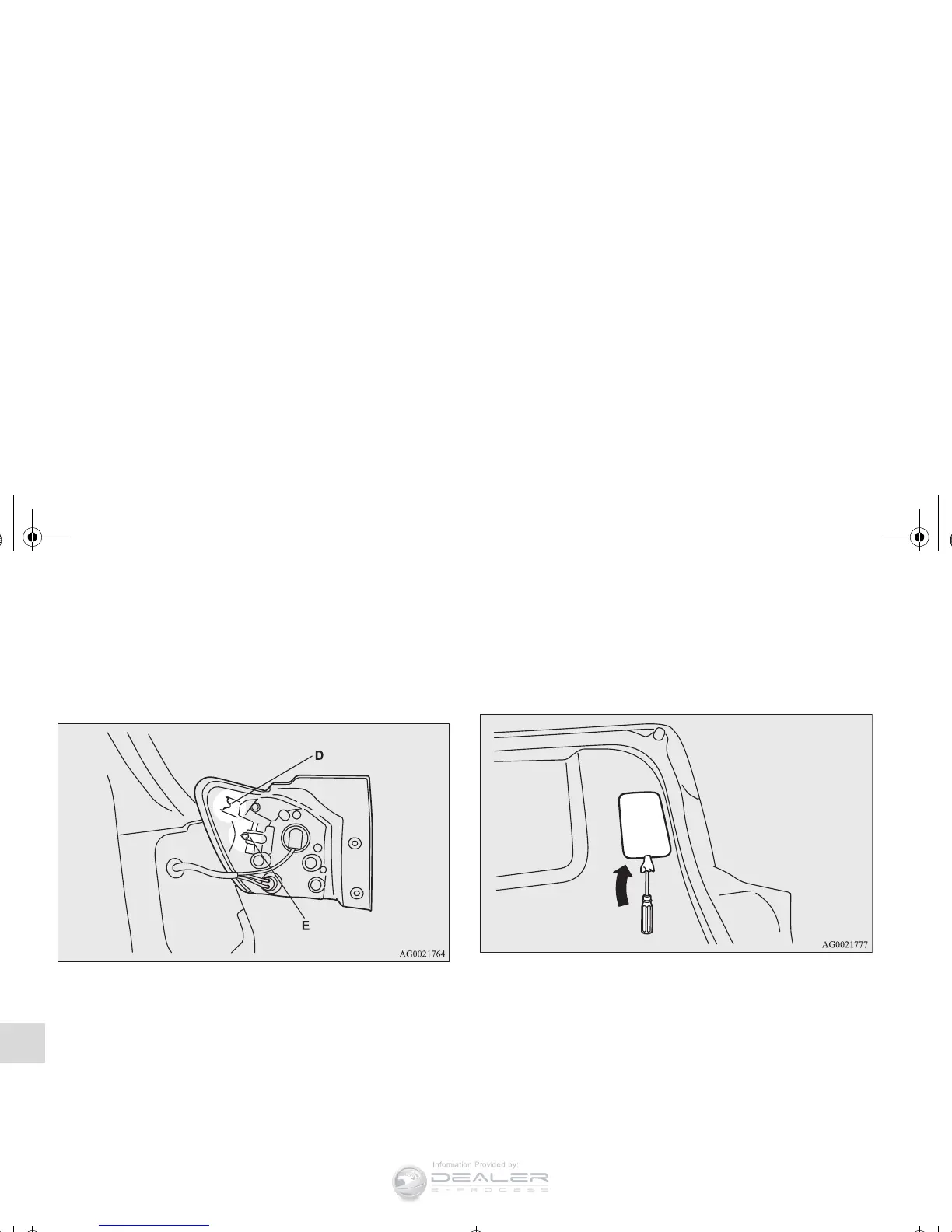

● When mounting the light unit, align the groove (D) on the
light unit with the clip on the body and the pin (E) on the
unit with the hole in the body.
Back-up lights
N00929100054
1. Open the liftgate.
2. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.
N
OTE
● Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.
