Mitsubishi AL2-24MR-D Quick Start Up Guide

29

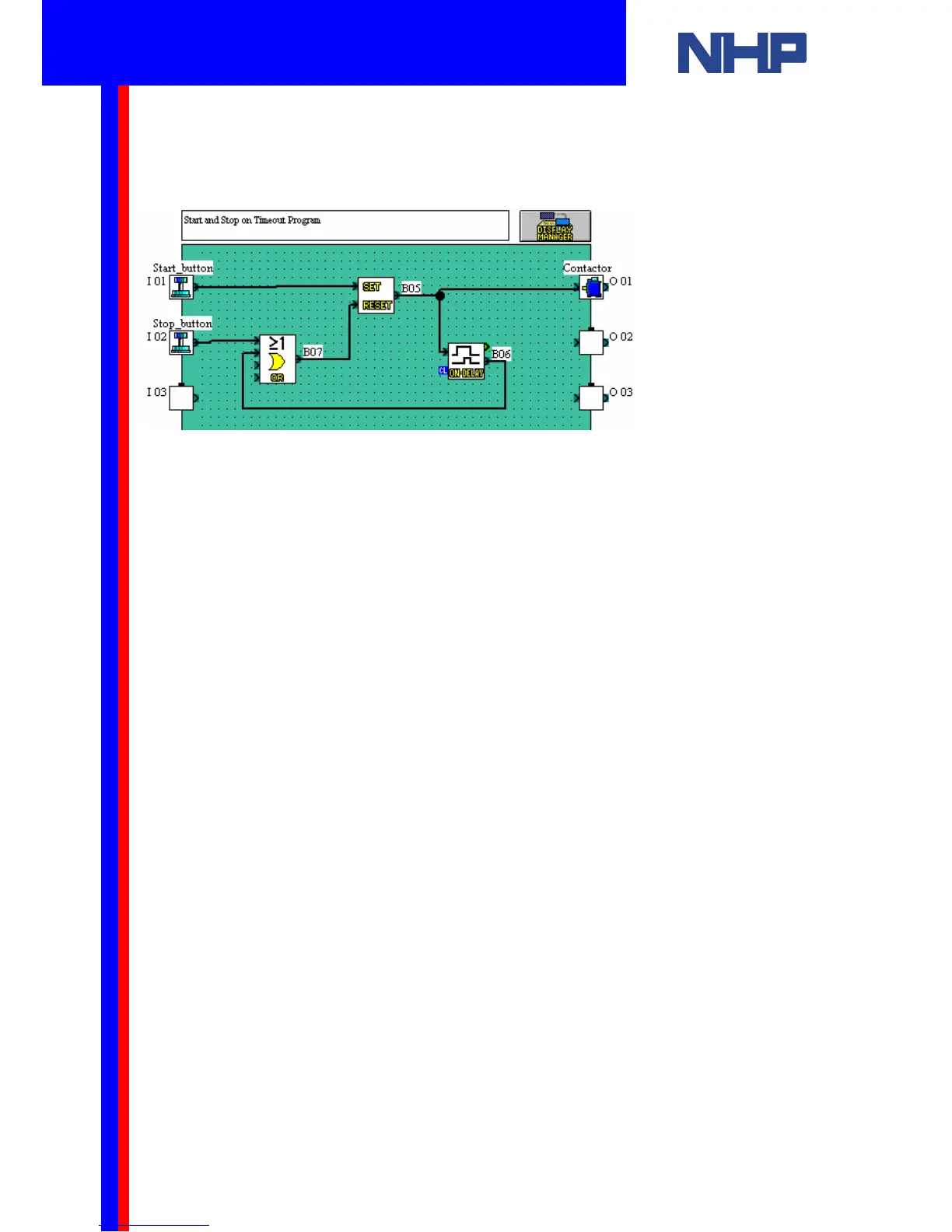

Use the wiring tool to make the following connections. Remember, to delete a connection
simply click the connection then press Delete on your keyboard. You can move the
connections to tidy your program, simply click on the connection then position your cursor
over the connection. When the cursor changes, click and drag to place the connection in a
better position.
Verify the operation of your program in Simulation Mode. Simulation mode is covered in
section 6.2.
When you are satisfied with its operation, ensure your controller is stopped, configure your
COM port, Download and Monitor. These are covered in sections 6.6, 6.3, 6.4.
The next section will detail a more complex program to run a ventilation fan from a manual
push switch and automatically from the On-delay timer you’ve just used.
Q u i c k S t a r t G u i d e
Mitsubishi Alpha / Alpha2
Programmable Controller
