N09A031a

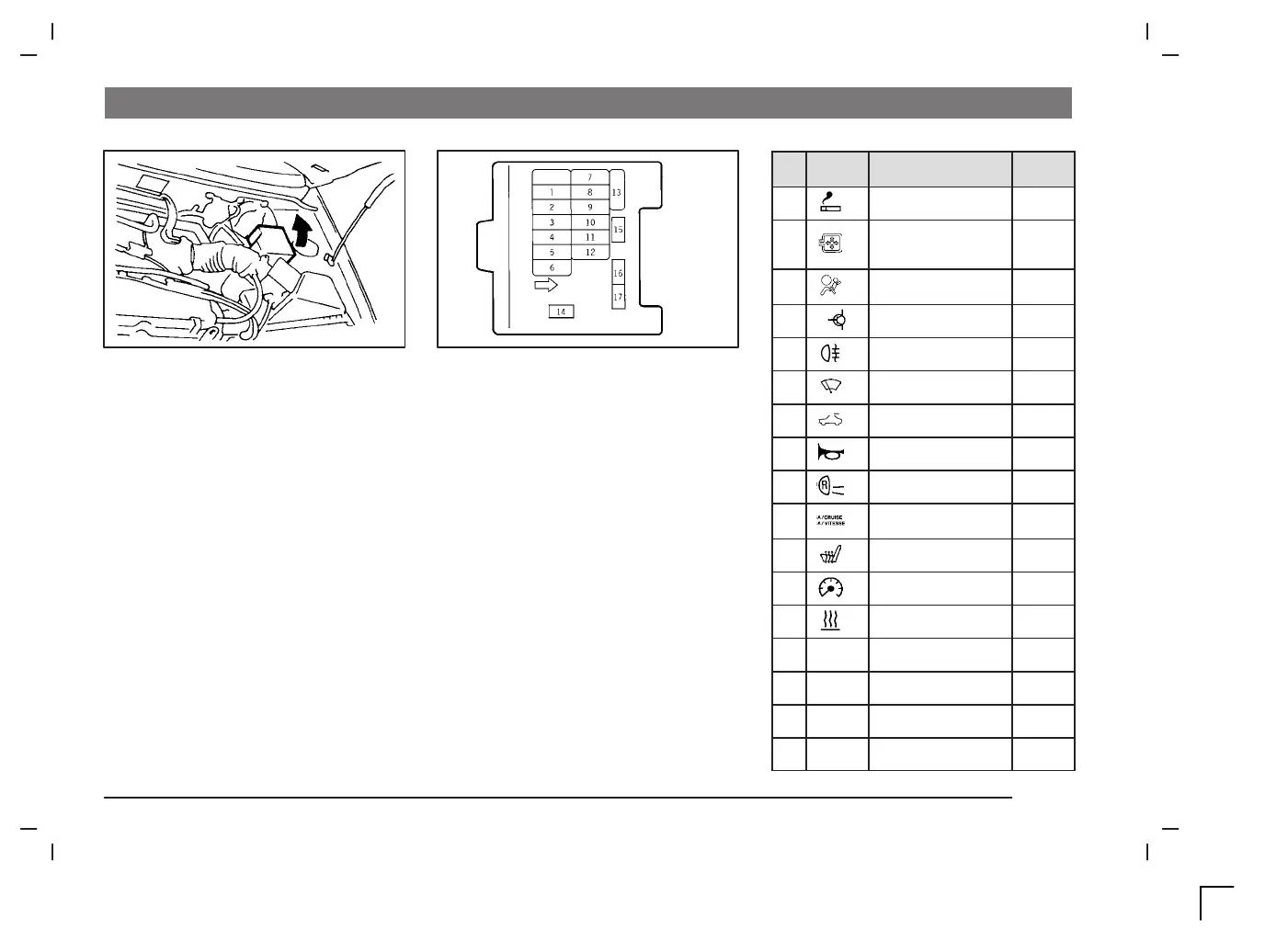

In the engine compartment, the fuse box is
located as shown in the illustration.
N29B071a
Fuse load capacity
EN29BMKd
The fuse capacity and the name of the elec-
trical systems protected by the fuses are
indicated on the inside of the coin box lo-
cated at the driver’s leg area and on the fuse
box lid for fuses located in the engine com-
partment.
Passenger compartment
NOTE
Spare fuses are contained in the fuse hous-
ing. Always use a fuse of the same capacity
for replacement.
NO
Sym-
bol
Name Capacity
1 Cigarette lighter 15 A
2
Electric remote-con-
trolled outside rear-view
mirrors
10A
3
Supplemental restraint
system (SRS)
10 A
4 Relay 15 A
5 Rear fog lamp 15 A
6 Windscreen wiper 20 A
7 Sunroof 20 A
8 Horn 10 A
9 Reversing lamps 10 A
10
Auto-speed (cruise)
control
10 A
11 Heated seat 20 A
12 Gauges 10 A
13 Heater 25 A
14
–
Spare fuse 25 A
15
–
Spare fuse 20 A
16
–
Spare fuse 15 A
17
–
Spare fuse 10 A
