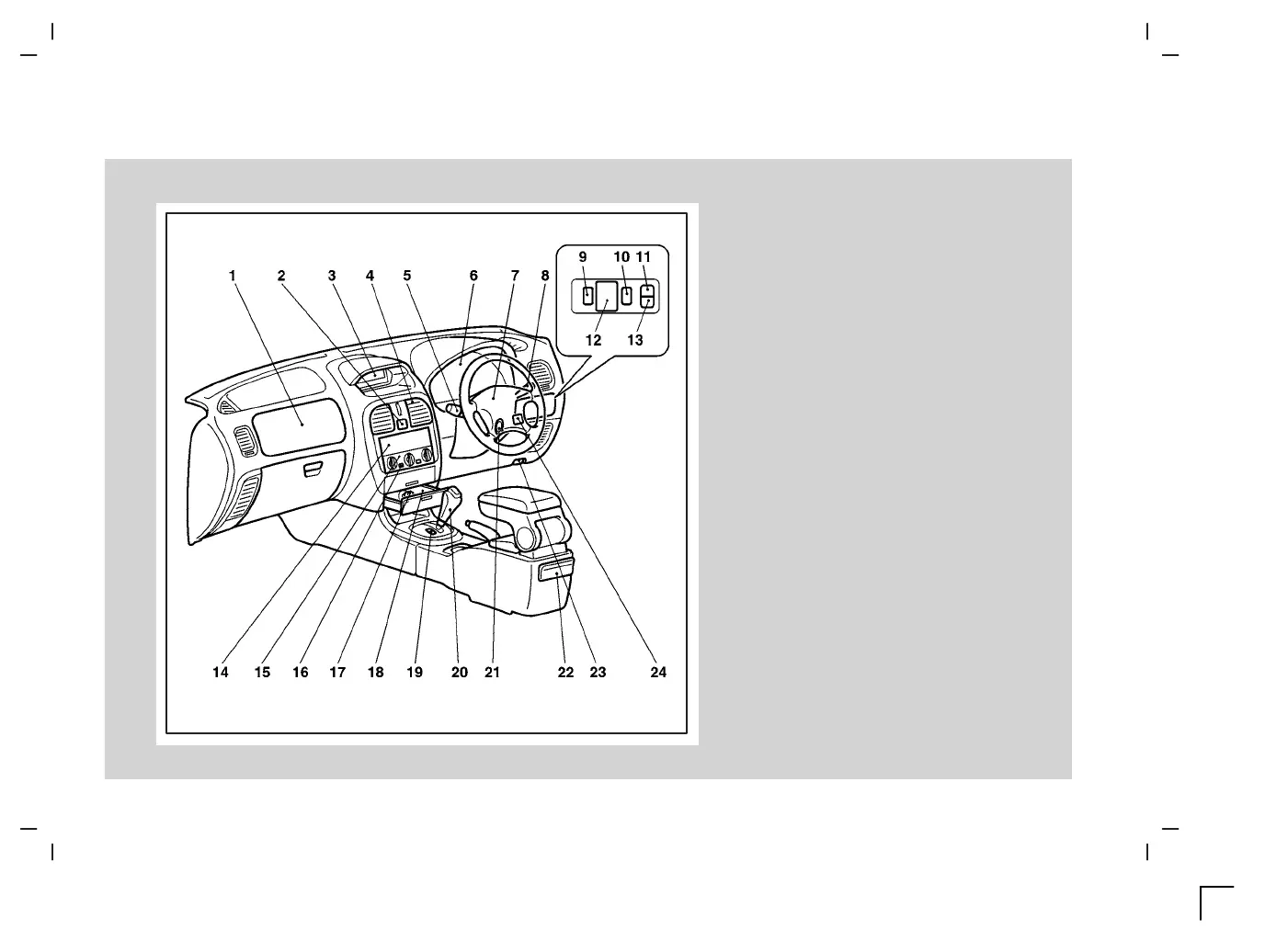

overview–Instruments and Controls
1- Supplemental restraint system (for passenger’s seat)
! p. 3–22
2- Hazard warning flasher switch ! p. 4–18
3- Multi centre display ! p. 4–24
Digital clock ! p. 4–26
4- Ventilators ! p. 6–29
5- Combination headlamps, dipper and turn signal
switch ! p. 4–12
Headlamp washer switch* ! p. 4–17
6- Meter and gauges ! p. 4–2
7- Supplemental restraint system (for driver’s seat)
! p. 3–22
Horn switch ! p. 4–22
8- Windscreen wiper and washer switch ! p. 4–15
Rear window wiper and washer switch (Hatchback
only) ! p. 4–16
9- Rheostat* (meter illumination control) ! p. 4–21
10 -
Headlamp levelling switch ! p. 4–13
11 - Front fog lamp switch* ! p. 4–20
12 - Electric remote-controlled outside rear-view mirrors
switch* ! p. 5–32
13 - Rear fog lamp switch ! p. 4–21
14 - Audio* ! p. 6–2
15 - Heater/Air conditioning* ! p. 6–30, 6–36
16 - Rear window demister switch ! p. 4–19
17 - Centre accessory box ! p. 6–47
18 - Cigarette lighter ! p. 6–45
19 - Ashtray ! p. 6–46
20 - A/T mode change over switch (vehicles with auto-
matic transmission INVECS II 4A/T) ! p. 5–21
21 - Gearshift or selector lever ! p. 5–14, 5–16
22 - Ignitition switch ! p. 5–9
23 - Bonnet release lever ! p. 2–8
24 - Auto-speed (cruise) control lever* ! p. 5–36
RHD
B21A483t
