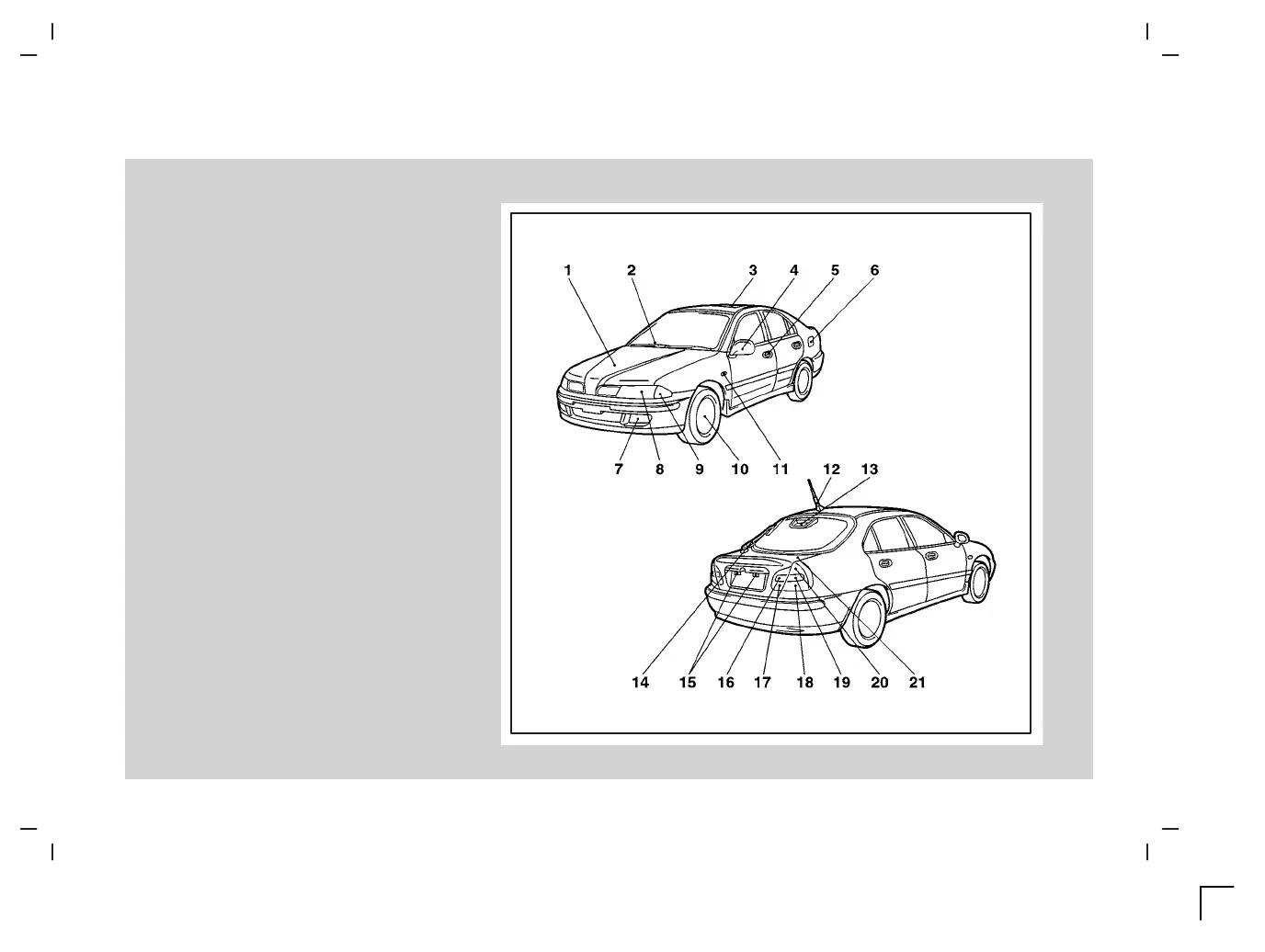

Exterior
EB21DMDd
1- Engine compartment ! p. 10–14
Bonnet ! p. 2–8
2- Windscreen wiper ! p. 4–15
3- Sunroof* ! p. 2–14
4- Outside rear-view mirror ! p. 5–31
5- Locking and unlocking ! p. 2–4
Keyless entry system* ! p. 2–5
6- Fuel filler ! p. 5–3
7- Front fog lamps* ! p. 8–26, 8–30
8- Headlamps and position lamps ! p. 8–26, 8–27
9- Front turn-signal lamps ! p. 8–26, 8–29
10 - Tyre inflation pressure ! p. 9–12
Changing tyres ! p. 8–9
Tyre rotation ! p. 9–13
Tyre chains ! p. 9–15
11 - Side turn-signal lamps ! p. 8–26, 8–30
12 - Antenna ! p. 6–29
13 - High mounted stop lamp ! p. 8–26, 8–35
14 - Rear window wiper ! p. 4–16
15 - License plate lamps ! p. 8–26, 8–36
16 - Reversing lamps ! p. 8–26, 8–33
17 - Rear fog lamp (Driver’s side only) ! p. 8–26,
8–33
18 - Stop lamps ! p. 8–26, 8–32
19 - Rear turn-signal lamps ! p. 8–26, 8–32
20 - Tail lamps ! p. 8–26, 8–32
21 - Tailgate ! p. 2–10
Hatchback
B21D169t
