INTAKE MANIFOLD
TSB Revision
INTAKE AND EXHAUST
15-13
Required Special Tool:
• MB992188: Fuel Injection Pipe Wrench
REMOVAL SERVICE POINT
.

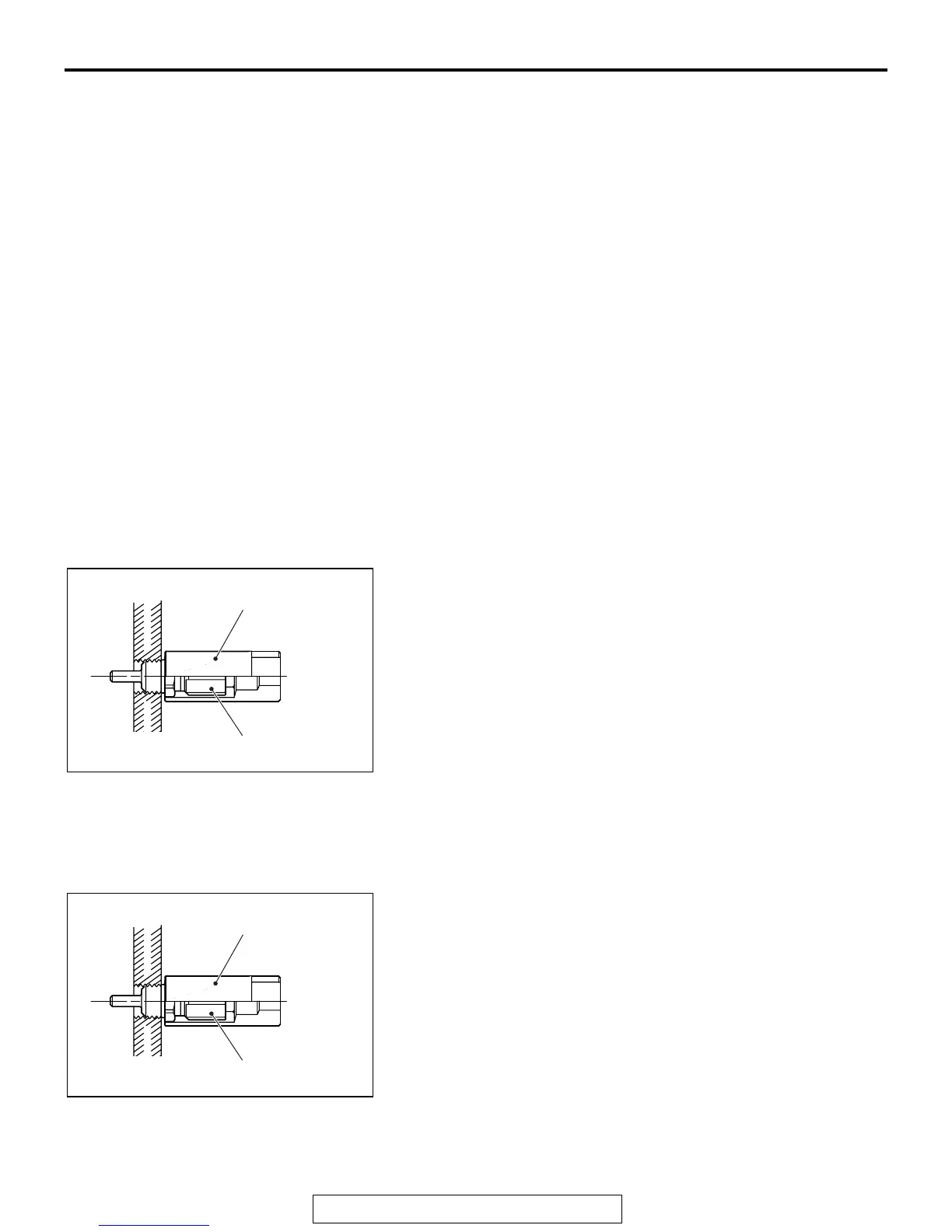

<<A>> NO.2 INTAKE AIR TEMPERATURE SEN-
SOR REMOVAL
AC707100
MB992188
AC
No.2 Intake air temperature sensor
Use special tool MB992188 to remove the No.2 intake air tem-
perature sensor.
INSTALLATION SERVICE POINTS
.
>>A<< NO.2 INTAKE AIR TEMPERATURE SEN-
SOR INSTALLATION
AC707100
MB992188
AC
No.2 Intake air temperature sensor
Tighten the No.2 intake air temperature sensor to the specified
torque by using special tool MB992188.
Tightening torque: 14 ± 1 N⋅ m (120 ± 13 in-lb)
.
5. Control wiring harness connection
6. Engine oil level gauge
7. O-ring
>> B <<
8. Manifold absolute pressure sensor
>> B <<
9. O-ring
<< A >> >> A <<
10. No.2 Intake air temperature sensor
11. Gasket
12. Vacuum hose connection
13. Purge control solenoid valve
14. Starter wiring harness clamp
15. Intake manifold stay (front)
16. Starter wiring harness clamp
17. Intake manifold stay (rear)
18. Intake manifold
19. Intake manifold gasket
20. Harness bracket
21. Engine upper cover bracket (front)
Removal steps (Continued)
