MANUAL TRANSMISSION (E-W) -
General Information
22B-0-4

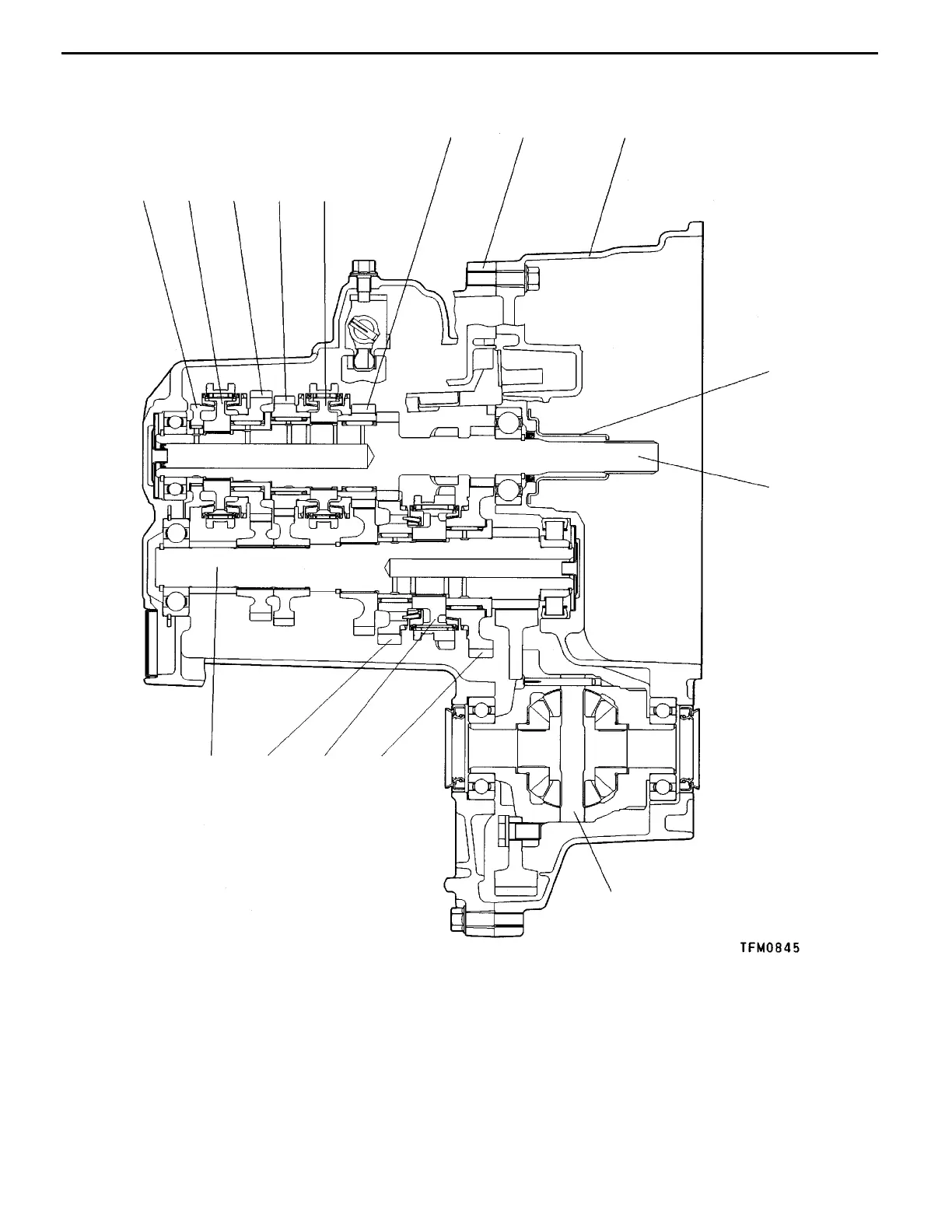

F5M41 <Types with double synchronizer ring for 2nd gear>
12
34
5
6
7
10
9
8
11
1214 13
15
1. Reverse gear meshing noise pre-
vention device
2. 5th-reverse speed synchronizer hub
3. 5th speed gear
4. 4th speed gear
5. 3rd-4th speed synchronizer hub
6. 3rd speed gear
7. Transmission case
8. Clutch housing
9. Release bearing retainer
10. Input shaft
11. Differential
12. 1st speed gear
13. 1st-2nd speed synchronizer hub
14. 2nd speed gear
15. Output shaft
PWEE9508-F
E
July 1999Mitsubishi Motors Corporation Revised
