MANUAL TRANSMISSION (E-W) -
Differential <F5M41, F5M42>,
Front Differential <W5M42>
22B-15-3

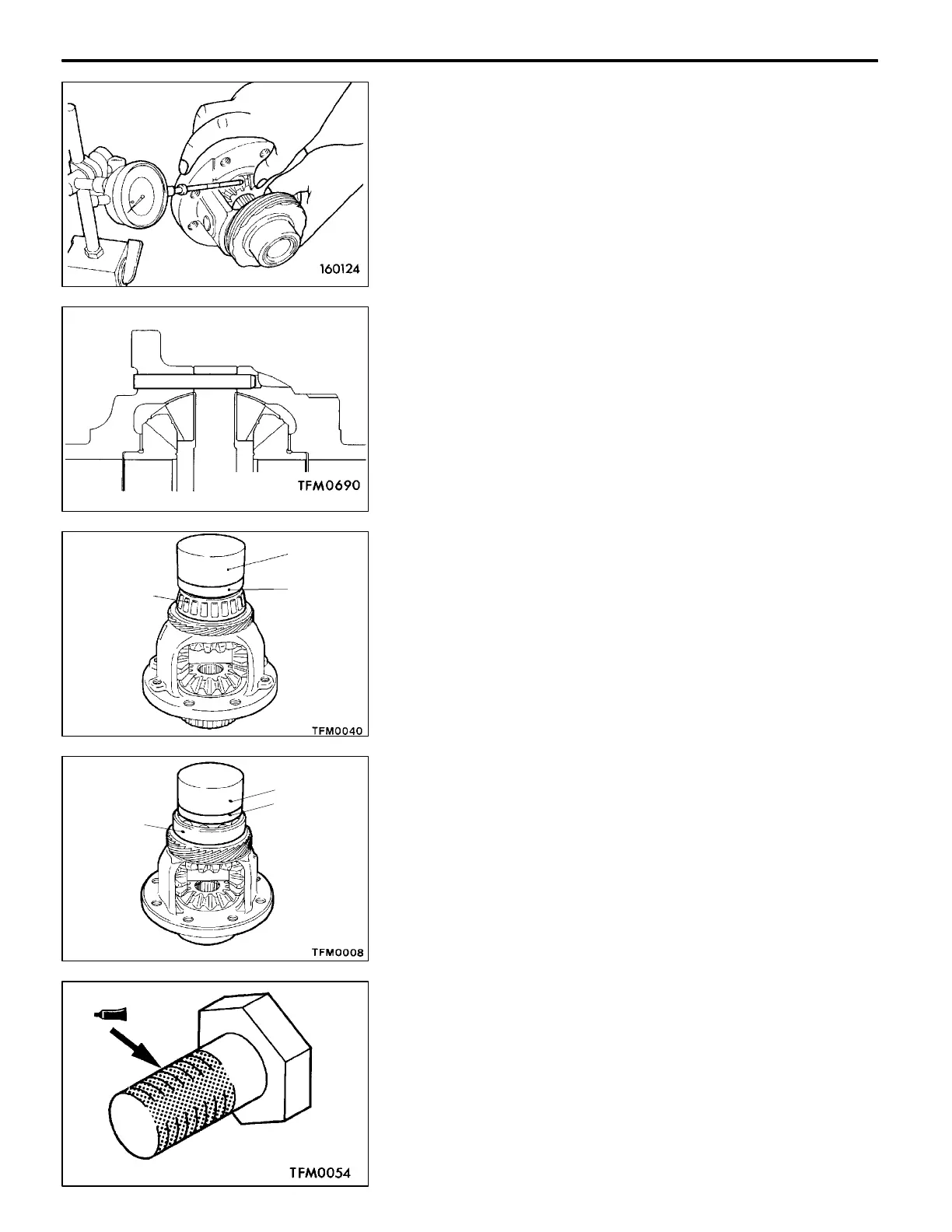

(4) Measure the backlash between the side gear an d pinion.
Standard value:
0.025-0.150 mm
(5) If t he backlash is out of specification, select a spacer
and re-measure th e backlash.
NOTE
Adjust until the backlashes on both sides are equal.
"
B
A
LOCK PIN INSTALLATION
Install the lock pin in such a way that it will be oriented in
the direction shown.
"
C
A
TAPER ROLLER BEARING INSTALLATION
<F5M42>
Use the special tools to install the taper roller bearing.
"
D
A
BALL BEARING INSTALLATION <F5M41>
Use the special tools to install the ball bearing.
"
E
A
DIFFERENTIAL DRIVE GEAR INSTALLATION
(1) Apply a sealant to the entire threaded portion of the bolt.
Specified sealant:
3M STUD Locking No. 4170 or equivalent
PWEE9508-E
E
Jun. 1998Mitsubishi Motors Corporation Revised
Taper roller
bearing
MD998812
MD998819
Ball bearing
MD998812
MD998819
To Next Page
