S Setup from a remote controller side.
Drain pump operation from a recomte controller unit is possible. Operate a remote controller unit by following the steps
described below.
1. To start a forced drain pump operation.
q Press the TEST button for three seconds or longer.
The display will change from “
SELECT ITEM”
“
SET”
“
TEST RUN ”
w Press the
button once while “ TEST RUN ” is displayed, and cause “DRAIN PUMP
” to be displayed.
e When the SET button is pressed, a drain pump operation will start.
Display: “ DRAIN PUMP RUN”
“ STOP”
2. To cancel a drain pump operation.
q If either SET or ON/OFF button is pressed, a forced drain pump operation will stop.
The air conditioning system will become OFF.
(e) Panel installation
1) Accessories (It is attach to the panel)
2) Make sure that the unit main body is positioned at the correct height and the opening on the ceiling is made to the correct
dimensions with the level gauge supplied with the main body.
Remove the level gauge before you attach the panel.

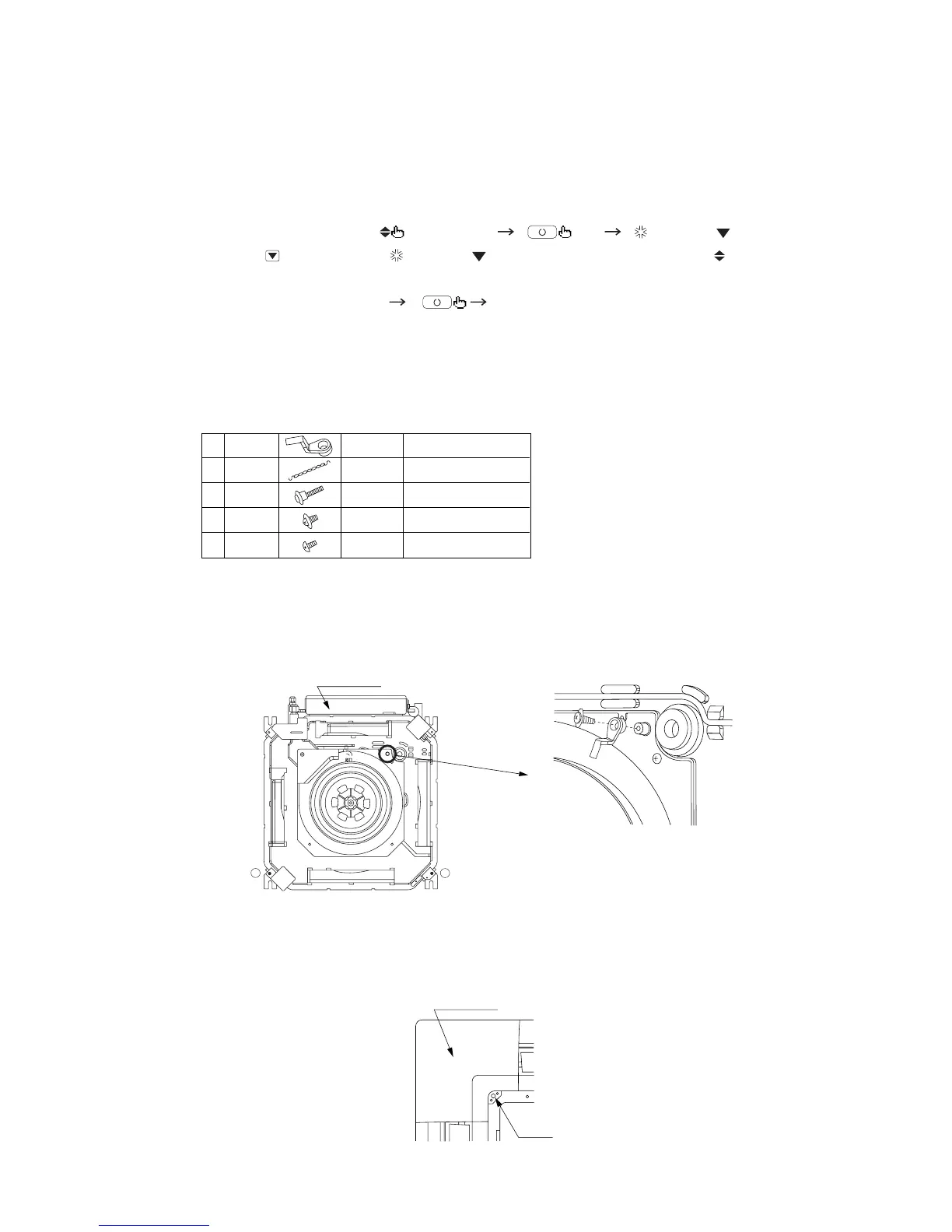

3) Screw in two bolts out of the four supplied with the panel by about slightly less than 5mm. ( mark AB) [Figure 1]
4) Attach the hook supplied with the panel to the main body with the hook fixing screw (1 screw). [Figure 2]
5) Open the air return grille.
6) Please remove the screw of a corner panel and remove a corner panel. (four places) [Figure 3]
1
2
3
4
5
Hook
Chain
Screw
Screw
Screw
For fixing temporarily
For hoisting the panel
For attaching a hook
For attaching a chain
1 piece
2 piece
4 piece
1 piece
2 piece
Piping side
A
B
[Figure 1]
[Figure 2]
Control box
Drain hose side
[Figure 3]
Corner panel
Screw
