161
-

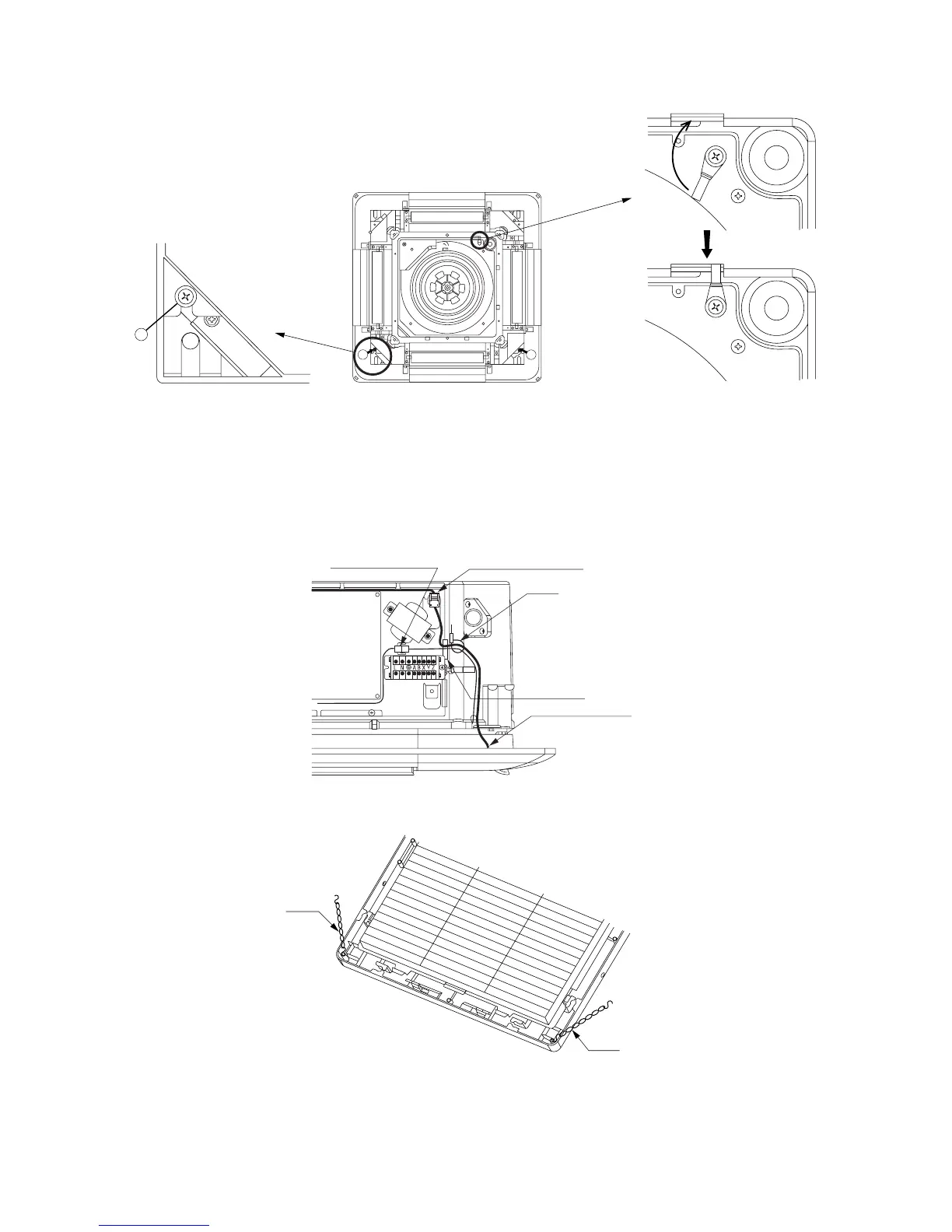

7) A panel is hooked on two bolts ( mark AB) [Figure 4]
[Figure 5]
[Figure 4]
B
A
A
8) Please rotate a hook, put in the slot on the panel, and carry out fixing the panel temporarily. [Figure 5]
9) Tighten the two bolts used for fixing the panel temporarily and the other two.
10) Please open the lid of a control box.
11) Like drain pump wiring, please band together by the clamp and put in louver motor wiring into a control box. [Figure 6]
12) Please connect a louver motor connector. [Figure 6]
[Figure 6]
Drain pump connector
Louver motor connector
Clamp
Wire intake
Louver motor wiring
13) Attach two chains to the air return grille with two screws. [Figure 7]
[Figure 7]
Chain
Chain
14) Replace the corner panels. Please also close a chain with a screw together then.
15) Close the air return grille.
To Next Page
