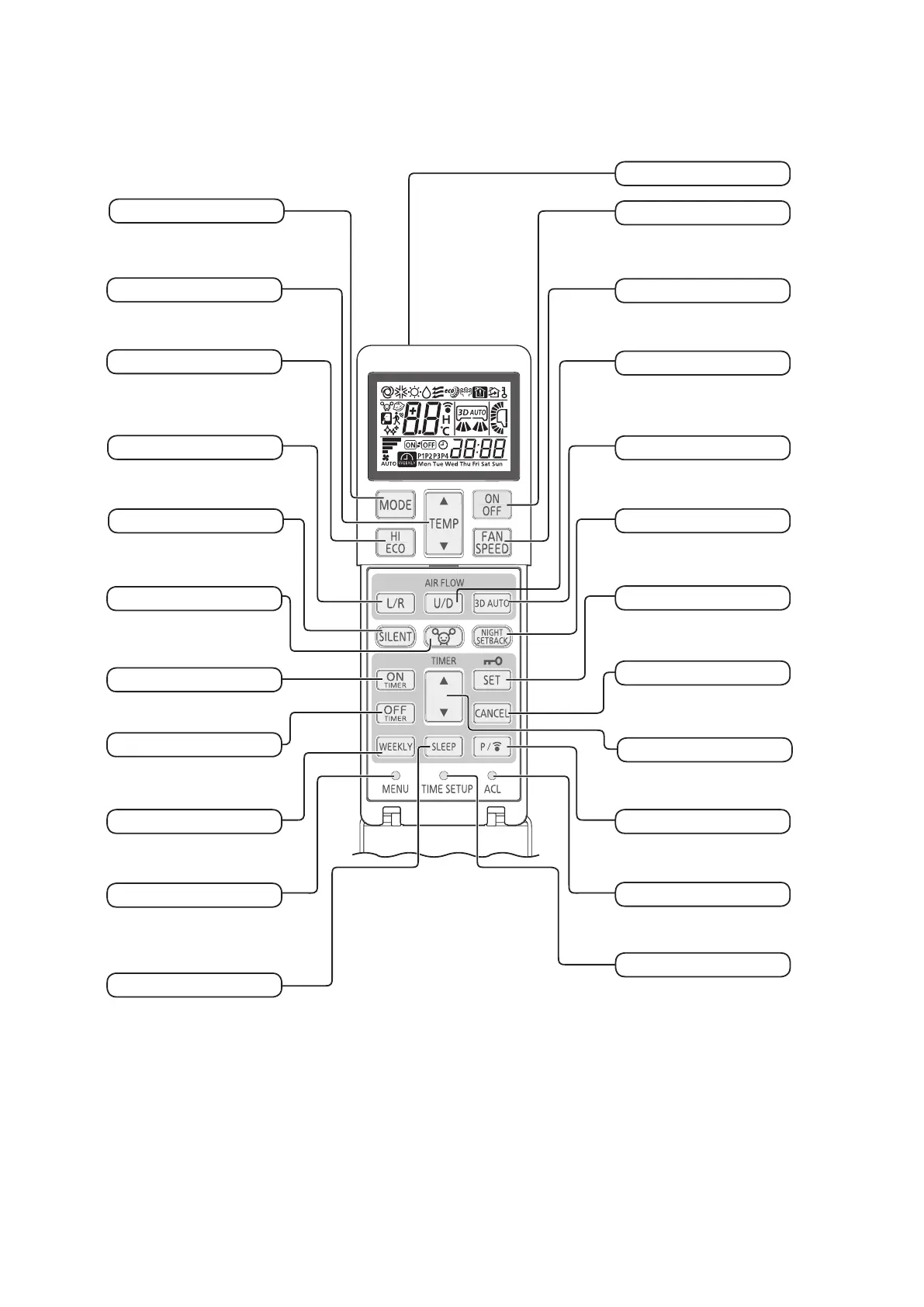

OPERATION MODE select button
Each time the button is pressed, the
mode changes.
The above illustration shows all controls, but in
practice only the relevant parts are shown.
ALLERGEN CLEAR button
This button selects ALLERGEN CLEAR
operation.
ON/OFF (luminous) button
Press to start operation, press again
to stop.
TEMPERATURE button
This button sets the room temperature.
AIR FLOW (UP/DOWN) button
This button changes the air flow (up/
down) direction.
TIME SET UP switch
This switch is used for setting the time.
SLEEP button
This button selects SLEEP operation.
MENU switch
This switch selects the brightness
adjustment, AUTO OFF operation, SELF
CLEAN operation and PRESET operation.
ON TIMER button
This button selects ON TIMER operation.
TIMER button
This button is used for setting the
current time and timer function.
ACL switch
This switch resets the program to
default state.
PROGRAM button
This button sets WEEKLY TIMER.
HI/ECO button
This button changes the HIGH POWER/
ECO operation.
AIR FLOW (LEFT/RIGHT) button
This button changes the air flow (left/
right) direction.
SILENT button
This button sets the SILENT operation.
OFF TIMER button
This button selects OFF TIMER
operation.
WEEKLY button
This button switches the WEEKLY
TIMER to ON/OFF.
FAN SPEED button
Each time the button is pressed, the fan
speed changes.
3D AUTO button
This button sets 3D AUTO operation.
NIGHT SETBACK button
This button sets NIGHT SETBACK
operation.
SET/Child lock button
Use this button to set the timer and
Child lock.
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
Transmission section
[View with the cover opened]
SRK series only
