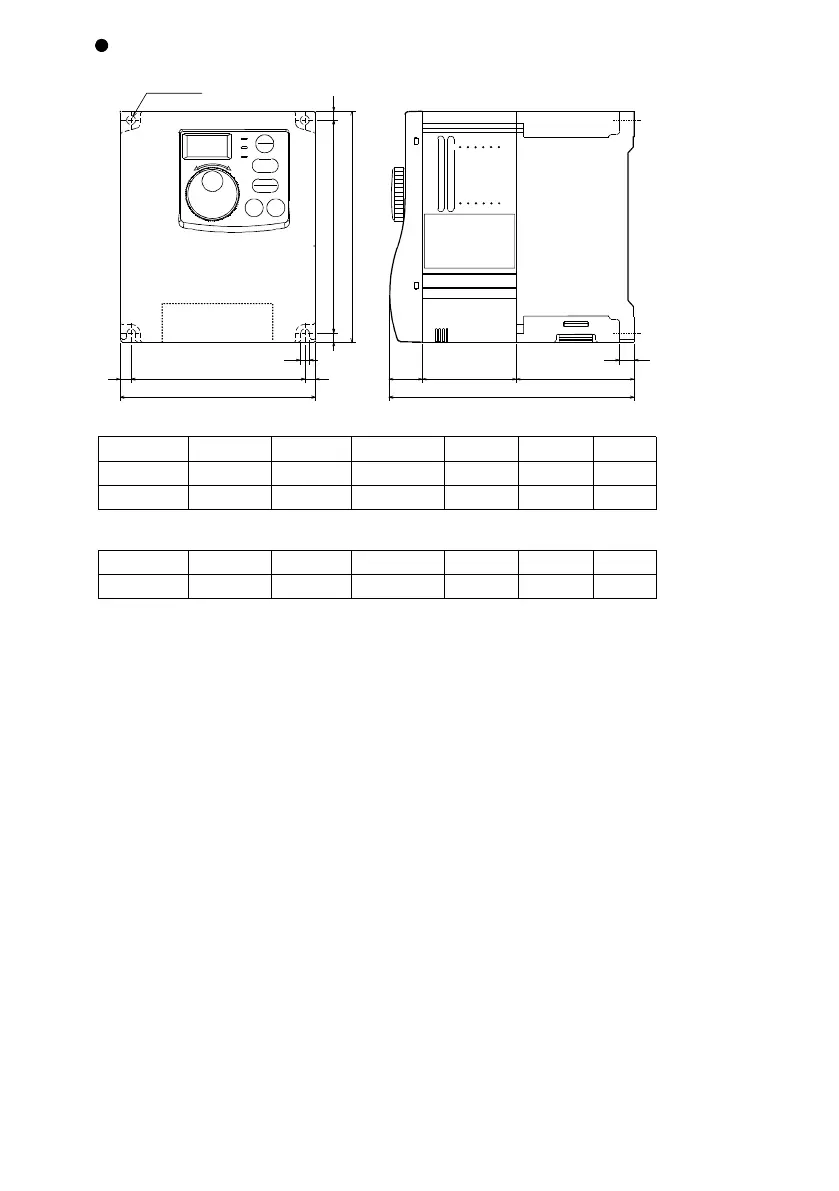

45
Capacity
1.5K, 2.2K
3.7K
170 (6.69)
108 (4.25)
W
·3-phase 200V power supply
158 (6.22)
96 (3.78)
W1
142.5 (5.61)
135.5 (5.33)
D
72 (2.83)
65 (2.56)
D1
52 (2.05)
52 (2.05)
D2
5 (0.20)
8 (0.31)
D3
18.5
(0.73)
D
D2 D1
D3
118 (4.65)
5 (0.20)
W
W1
128 (5.04)
5 (0.20)
-+
6 (0.24) 6 (0.24)
Cooling fan×1
Rating
plate
φ
5 hole
1.5K, 2.2K, 3.7K
Capacity
1.5K
108 (4.25)
W
·Single-phase 200V power supply
96 (3.78)
W1
155.5 (6.12)
D
65 (2.56)
D1
72 (2.83)
D2
8 (0.31)
D3
(
Unit: mm
(
inches
))
5 (0.20)
