13-16 Useful advice for emergencies
CAUTION
Close the cover completely to prevent rain
water from entering the fuse box.

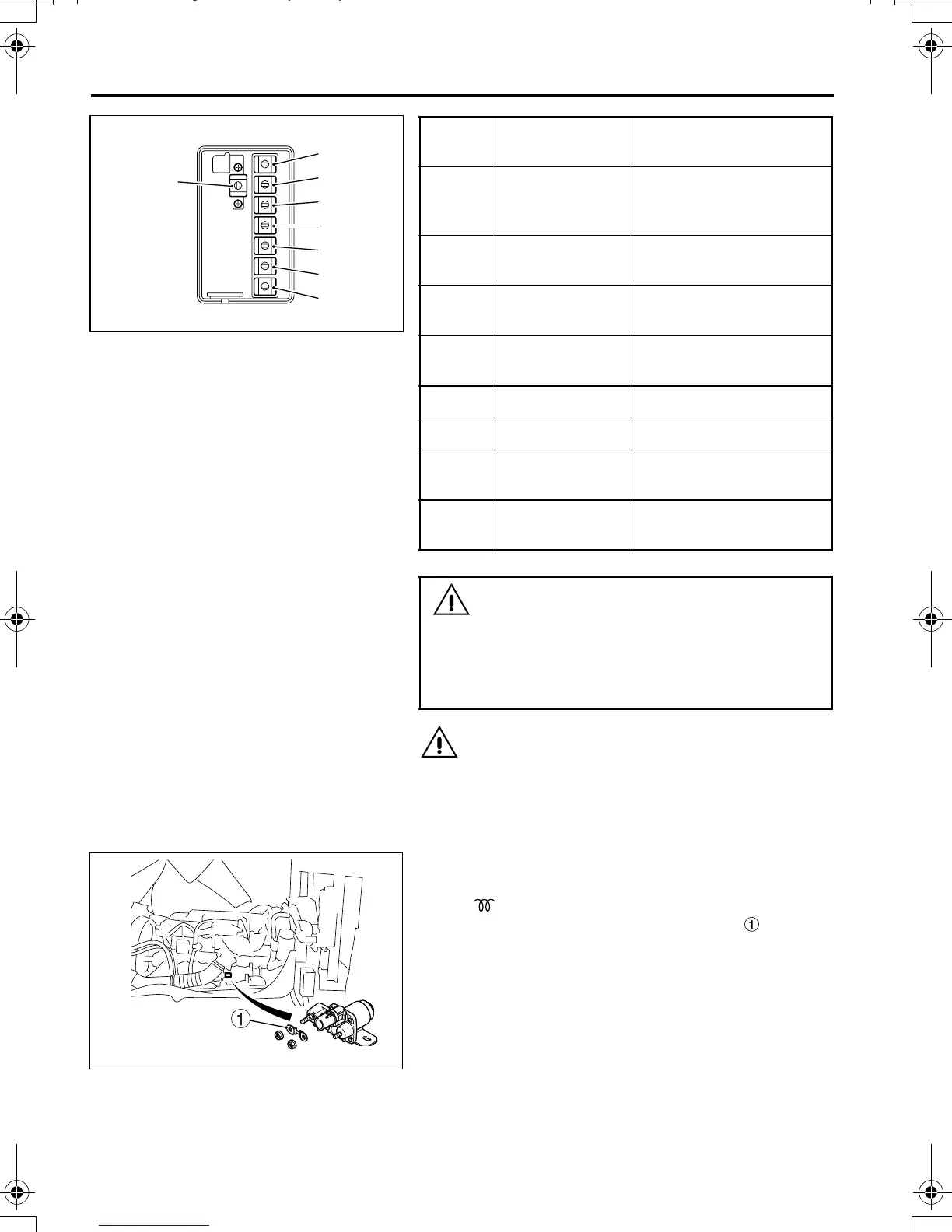

3 Replacing engine preheating circuit
fuse
If the indicator lamp does not light up in cold
weather, check whether glow relay fuse is blown
or not.
If the fuse is blown, first disconnect the negative
cable from the battery and then replace the fuse
with a genuine one (127A).
No.
Amperage
(casing color)
Protected circuit
FH1 60A (yellow)
Fuse box
(A01 – A05, M01 –
M20, S01)
FH2 60A (yellow)
Fuse box
(B01 – B06)
FH3 60A (yellow)
Fuse box
(B07 – B16)
FH4 60A (yellow)
Fuse box
(B17 – B27)
FH5 50A (red) Glow
FH6 140A (russet) Alternator
FH7 60A (yellow)
Fuse box
(B27 – B37)
FH8 60A (yellow)
Fuse box
(B38 – B39)
WARNING
Replacement high-current fuses should
always be of the specified amperage. Using a
high-current fuse of incorrect amperage
could cause a fire.
FH1
FH2
FH3
FH4
FH5
FH7
FH8
FH6
Z17495
Z17498
