RADIATOR
ENGINE COOLING
14-25

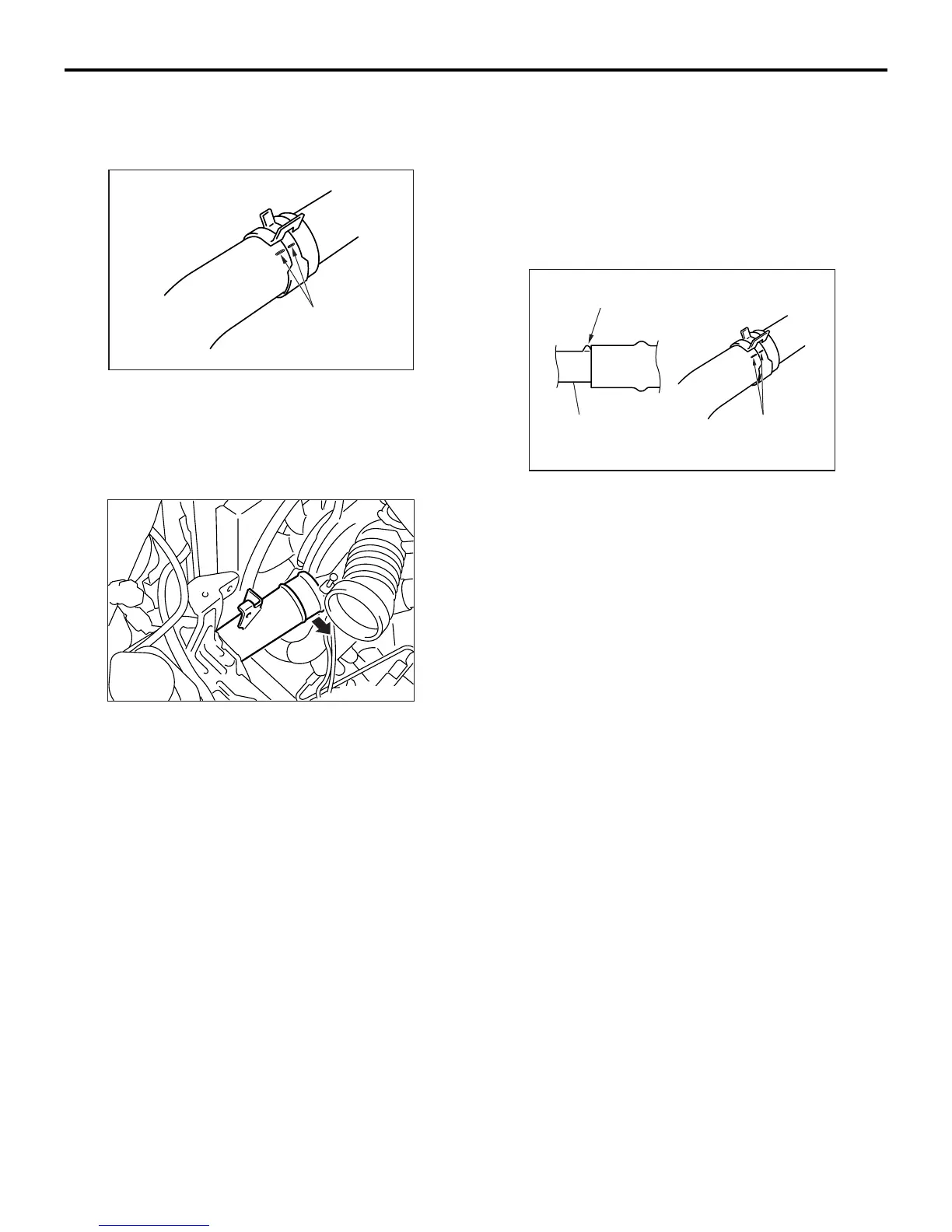

REMOVAL SERVICE POINTS
<<A>> RADIATOR UPPER HOSE/RADIA-
TOR LOWER HOSE DISCONNECTION
AC200641AB
Mating marks
Make mating marks on the radiator hose and the
hose clamp. Disconnect the radiator hose.
<<B>> AIR PIPE B MOUNTING BOLT
REMOVAL
AC210705
After removing the bolt, position air pipe B out of the
way so that the pipe does not interfere with the radia
-
tor assembly or the cooling fan motor, the fan and
shroud assembly.
INSTALLATION SERVICE POINT
>>A<< RADIATOR LOWER HOSE/RADIA-
TOR UPPER HOSE CONNECTION
AC200642
Mating marks
Projection
Water inlet pipe,
water outlet fitting
or radiator
AC
1. Insert each hose as far as the projection of the
water inlet pipe, water outlet fitting or radiator.
2. Align the mating marks on the radiator hose and
hose clamp, and then connect the radiator hose.
