WATER PUMP
ENGINE COOLING
14-20
WATER PUMP
REMOVAL AND INSTALLATION
M1141002701004
CAUTION
If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact
the caliper with tools or parts, because the caliper paint will be scratched.
Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front
Bumper
P.51-2).
• Engine Coolant Draining (Refer to P.14-15).
• Timing Belt Tensioner Adjuster Removal (Refer to
GROUP 11A, Timing Belt
P.11A-36).
Post-installation Operation
• Timing Tensioner Adjuster Belt Installation (Refer to
GROUP 11A, Timing Belt
P.11A-36).
• Engine Coolant Refilling (Refer to P.14-15).
• Under Cover Installation (Refer to GROUP 51, Front
Bumper
P.51-2).
AC406755
AC504976
AB
N
22 ± 4 N·m
2
1
4
3
14 ± 1 N·m
24 ± 4 N·m
23 ± 3 N·m
N
20 ± 2 N·m
8 × 60
8 × 22
8 × 14
8 × 22
8 × 55
Bolt specifications
2
Nominal diameter × Nominal length mm

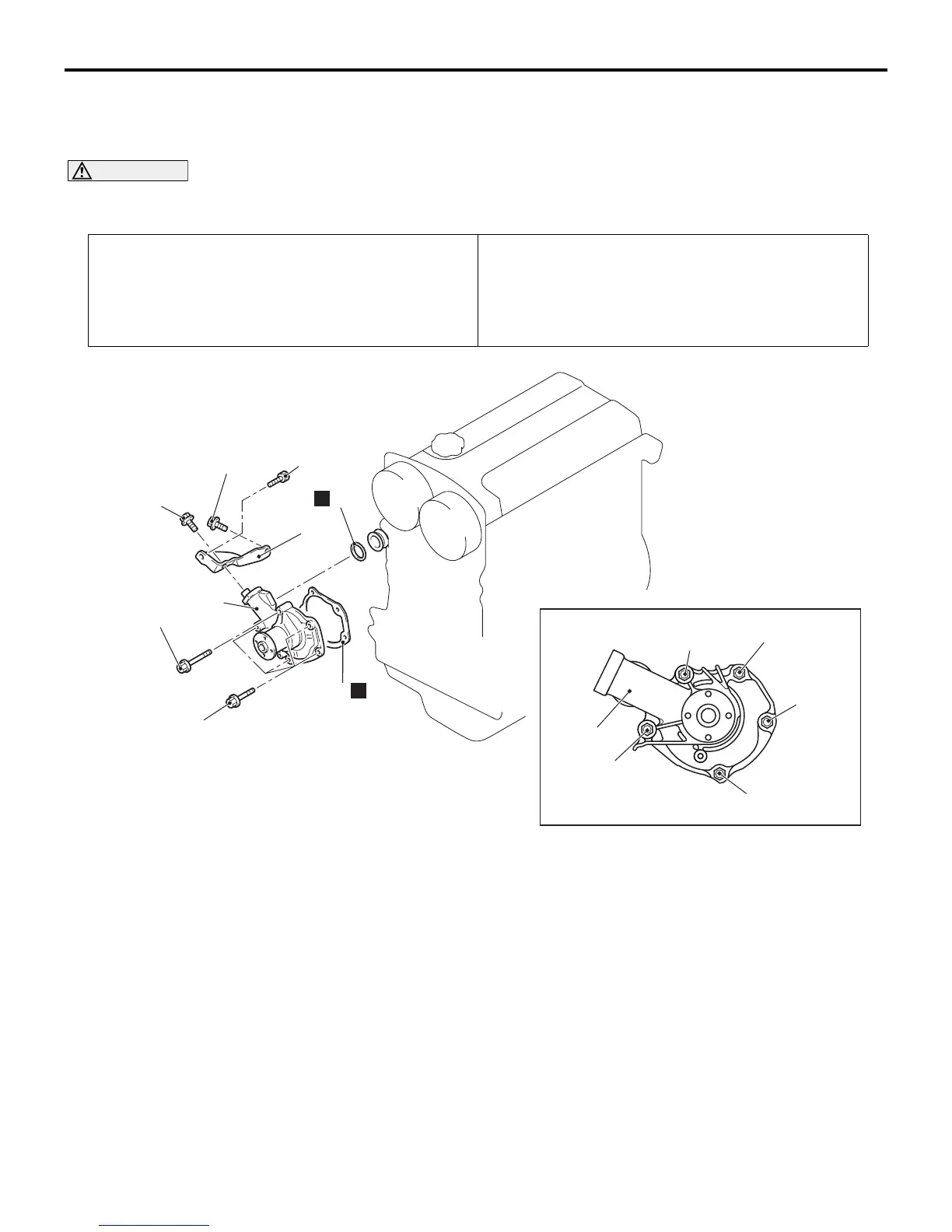

Removal steps
1. Alternator brace
2. Water pump
3. Water pump gasket
>> A <<
4. O-ring
Removal steps (Continued)
