Mitsubishi Lancer Evolution VI Installation Manual

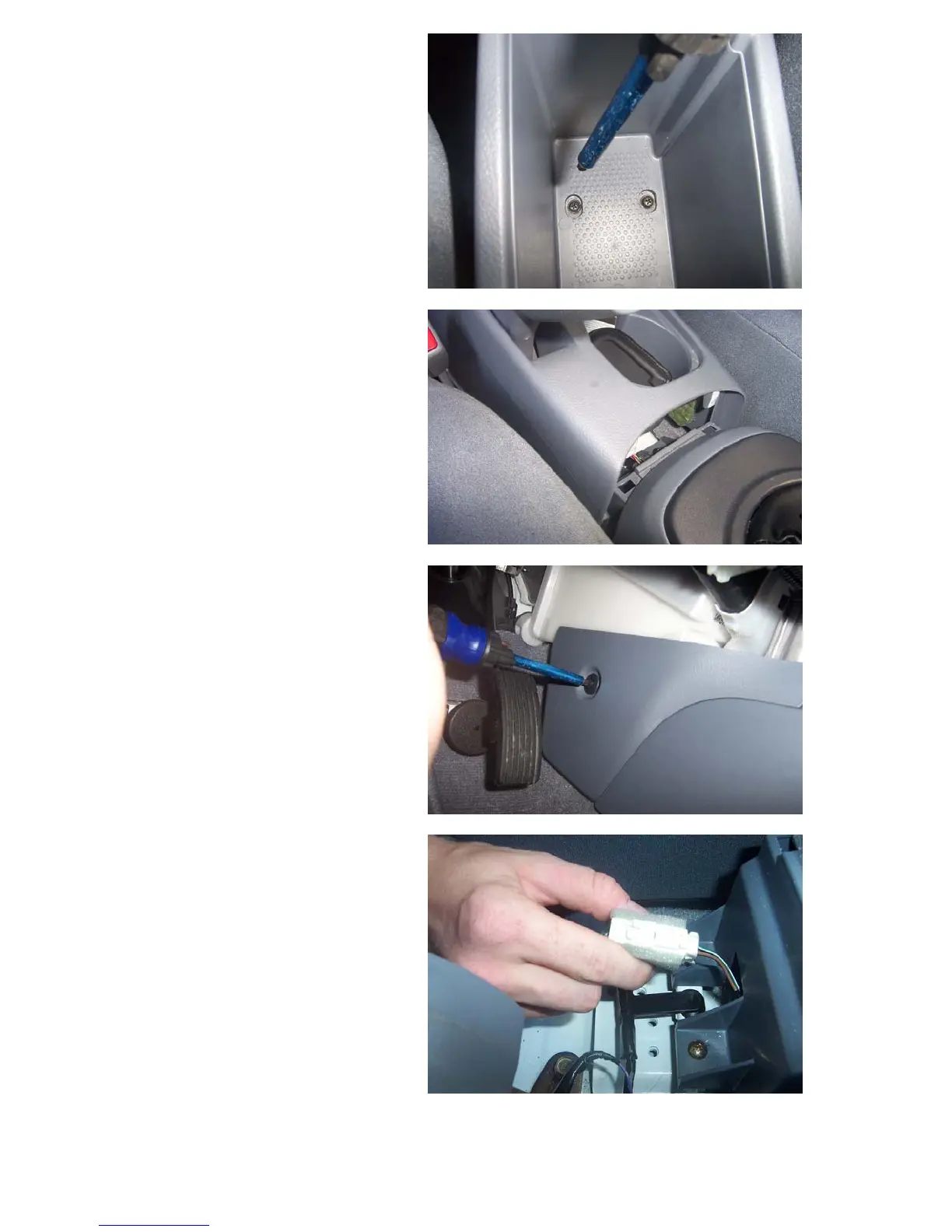

3. Remove two screws from inside t
center console storage com
he
partment.
4. Lift up on the rear section of the
center console and unclip it from the
front section.
5. Remove plastic screw from the
driver’s side of the center console
(near the gas pedal). Remove the
plastic cover and the pop rivet b
it. Then remove the two screws at
rear of the console (were hidden b
the rearward part of the center consol
that was removed).
eneath
the
y
e
6. Unclip plastic connector at the rear
of the console. Remove entire center
console.

Mitsubishi Lancer Evolution VI Specifications

General

Transmission	5-speed manual
Drivetrain	All-Wheel Drive
Engine Code	4G63
Compression Ratio	8.8:1
Fuel System	Multi-point Fuel Injection
Front Brakes	Ventilated discs
Rear Brakes	Ventilated discs
Wheelbase	2510 mm
Length	4350 mm
Width	1770 mm
Height	1415 mm
Engine Type	Inline 4
Horsepower	276 hp
Torque	275 lb-ft @ 3000 rpm
Top Speed	155 mph (electronically limited)
Displacement	1997 cc
Bore x Stroke	85.0 mm x 88.0 mm
Maximum Power	276 hp @ 6500 rpm
Maximum Torque	373 N⋅m (275 lb⋅ft) @ 3000 rpm
Front Suspension	MacPherson strut
Rear Suspension	Multi-link
Curb Weight	1360 kg
Fuel Tank Capacity	50 L
