GENERAL - Support Locations for Lifting and Jacking
00-27

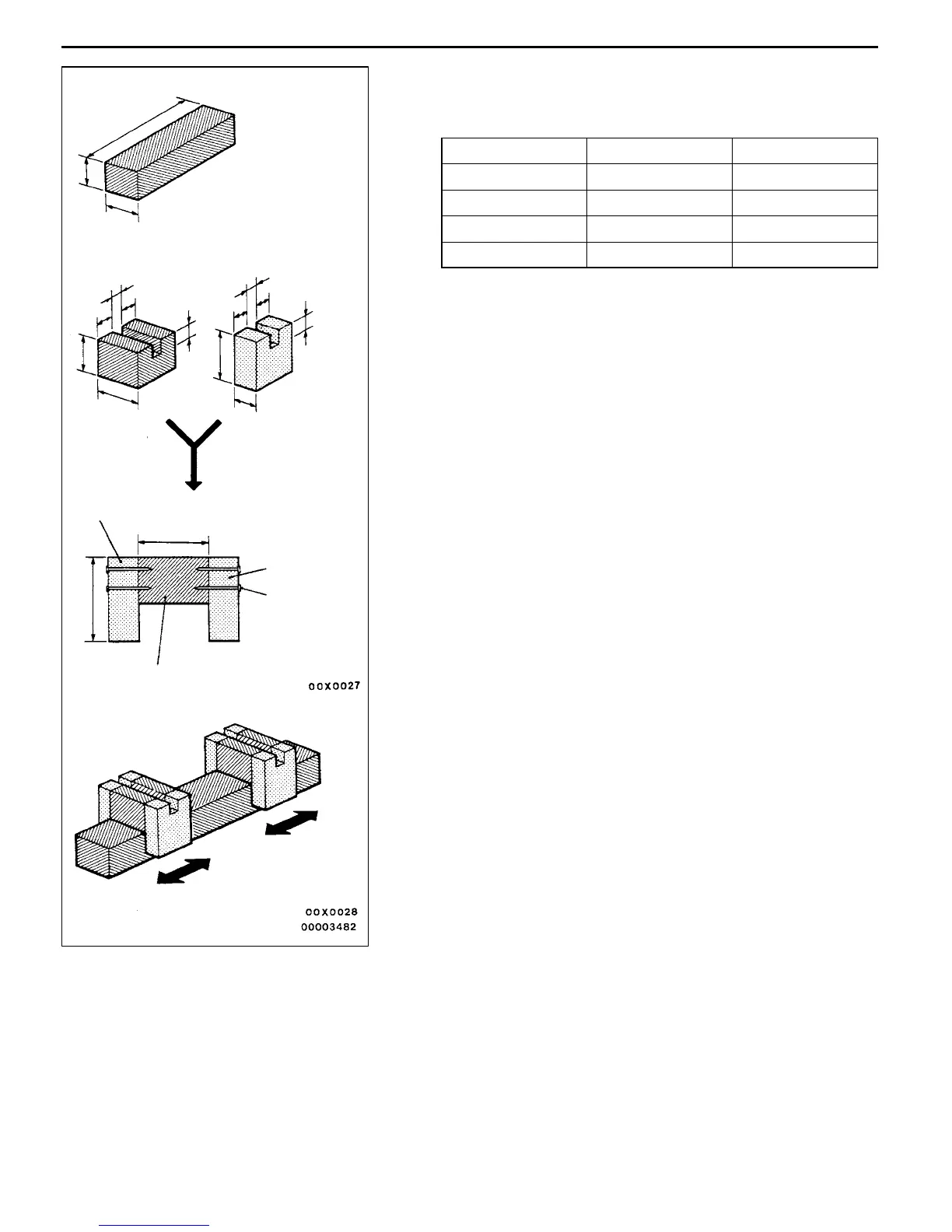

PREPARATION OF “ATTACHMENTS”
1. Prepare the blocks (wooden) and nails as shown in the
figure.
Item Dimensions mm Quantity
Block (A) 90 × 95 × 1,800 2
Block (B) 60 × 100 × 95 4
Block (C) 140 × 40 × 95 8
Nail 70 or more 32
Caution
The wood selected for the blocks must be hard.
2. For the (B) blocks and (C) blocks, use a saw and chisel
or similar tool to make grooves of the dimensions shown
in the figure.
3. Make four “ATTACHMENTS” such as shown in the figure
nailing (B) and (C) blocks so that each (B) blocks is
sandwiches between (C) blocks.
Block (A)
mm
1,800
90
95
Block (B) Block (C)
15
40
60
100
40
20
15
40
140
40
20
40
Block (C)
140
100
Block (C)
Nail
Block (B)
Finished attachment
Movable according
to vehicle width
