EXTERIOR – MARKS
51-7

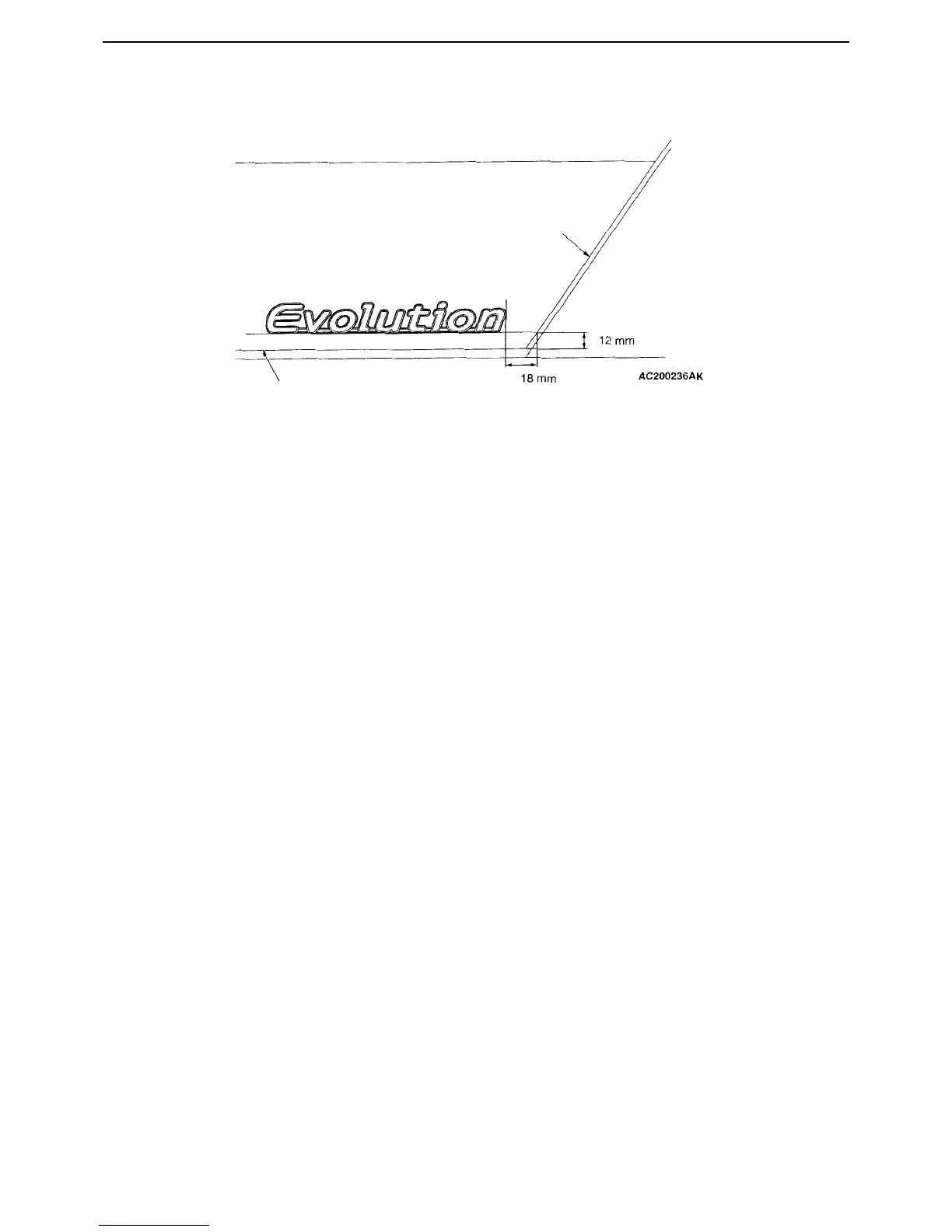

(3) EVOLUTION mark
2. Installation procedure
(1) Remove grease from installation surface of the body, using unleaded
gasoline.
(2) Peel off the protective backing of the mark and apply it to the installation
position.
Caution
1) Perform this operation in a dust-free environment at a room temperature
of 20 – 38°C.
2) If the room temperature is less than 20°C, then the mark and body
(installation position) must be heated to 20 – 30°C.
3) The mark must be pressed to eliminate any air bubbles.
Boot lid end line
Boot lid end line
