IINSTALLATION I

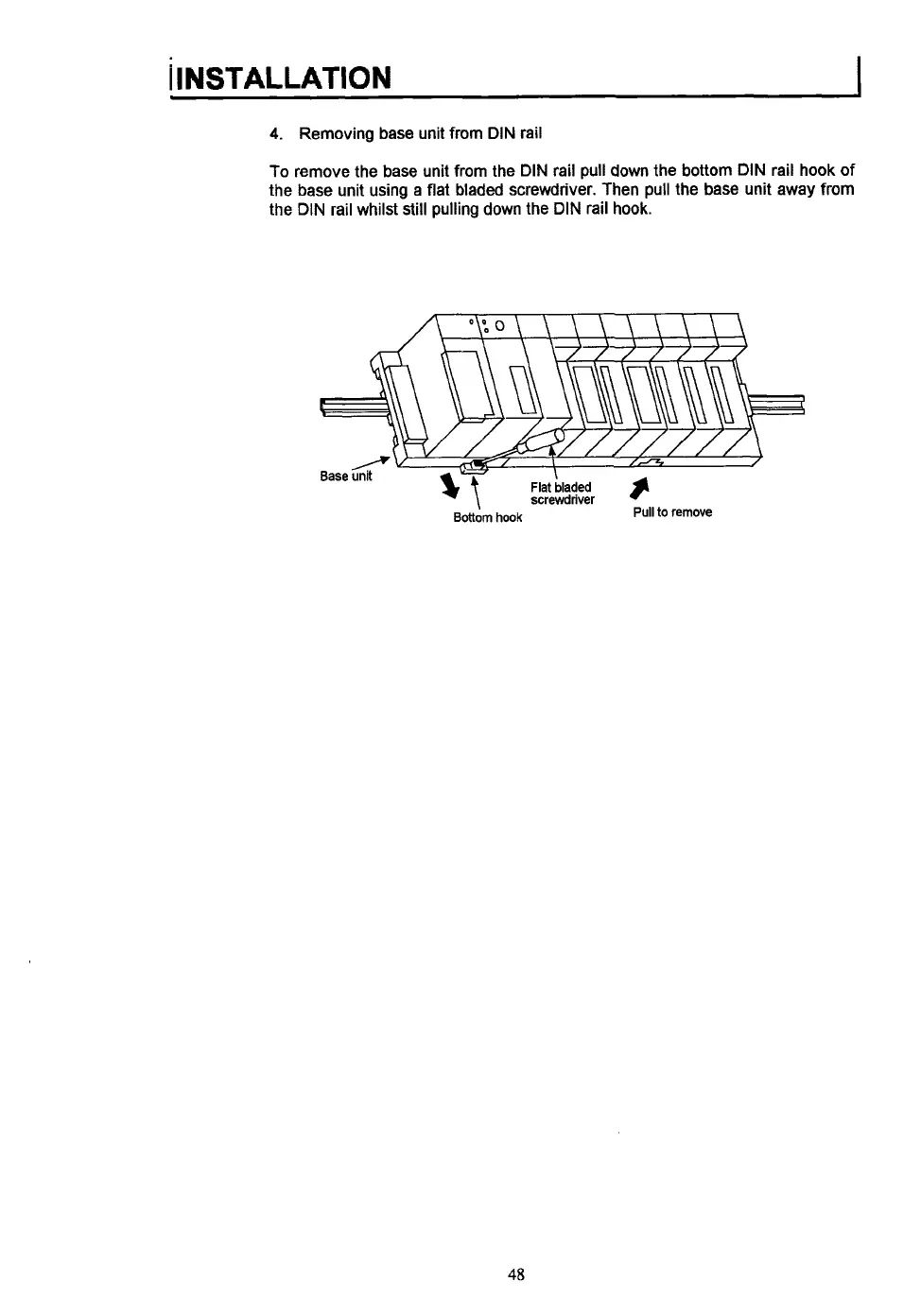

4. Removing base unit from DIN rail
To remove the base unit from the DIN rail pull down the bottom DIN rail hook of
the base unit using
a flat bladed screwdriver. Then pull the base unit away from
the DIN rail whilst still
pulling down the DIN rail hook.
48
