Mitsubishi Mirage 2015

TIRE PRESSURE MONITORING SYSTEM (TPMS)
TSB Revision
WHEEL AND TIRE
31-51

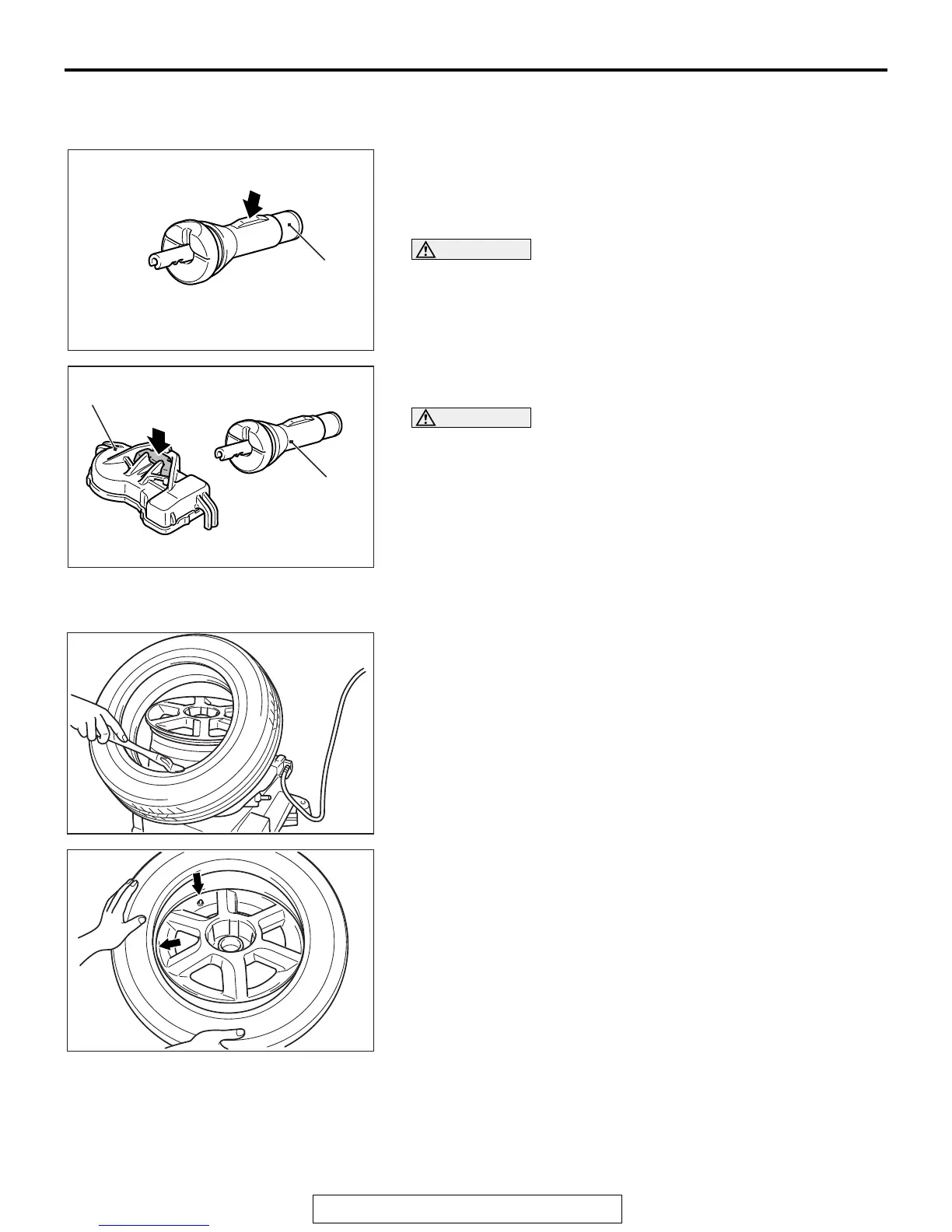

INSTALLATION SERVICE POINTS
.
>>A<< VALVE INSTALLATION
1. The projection shown by the arrow should face towards the
outside of the wheel.
.
>>B<< TPMS TRANSMITTER INSTALLATION
CAUTION
Do not attempt to install the TPMS transmitter without
depressing the portion indicated by the arrow.
1. Install the TPMS transmitter into the valve while depressing
the portion indicated by the arrow.
CAUTION
Make sure that the TPMS transmitter and the valve are
installed securely.
2. Pull the TPMS transmitter from the valve by hand to make
sure it is secure.
NOTE: If the TPMS transmitter is disconnected from the
valve, the tab securing the TPMS transmitter to the valve
may be broken.
.
>>C<< TIRE BEAD MOUNTING
1. Prepare the tire and fix the rim as usual.
2. Put the tire on the rim, so that the cross point of the bead
with the rim is approximately 20 cm (7.9 inch) away from the
valve.
ACC03172
AD
Valve
ACC02930
AB
TPMS
transmitter
Valve
AC609532
AC609533
AB
