TIRE PRESSURE MONITORING SYSTEM (TPMS)
TSB Revision
WHEEL AND TIRE
31-52

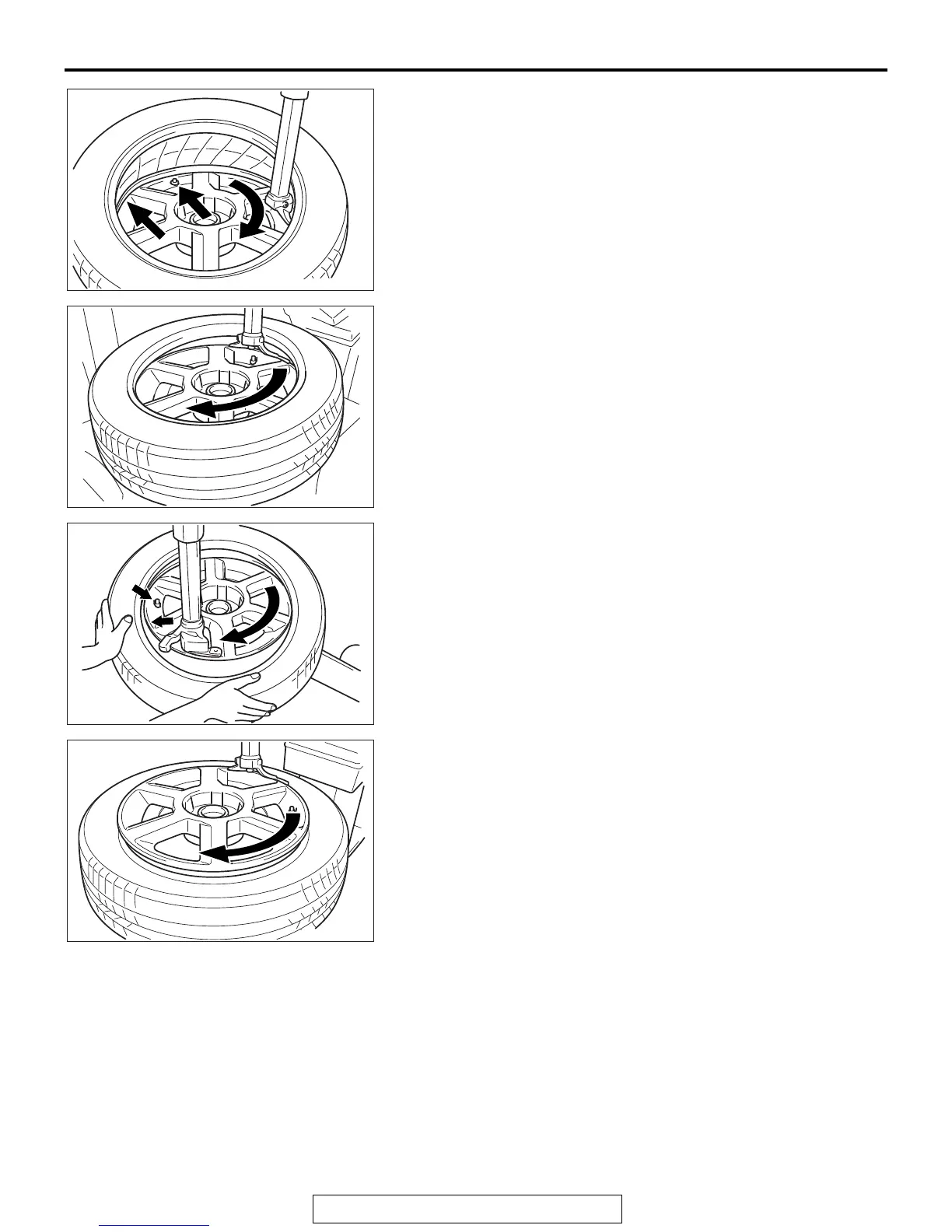

3. Engage the shoe and make sure that 20 cm (7.9 inch) is
maintained between the cross point and the valve.
The arrow shows the direction of rotation of the wheel.
4. Turn the wheel in order to engage all the first side of the tire.
NOTE: The standard shoes can pass over the sensor with-
out damaging it.
5. Put the second side of the tire in position, so that the cross
point of the bead with the rim is approximately 20 cm (7.9
inch) away from the valve. The curved arrow shows the
direction of rotation of the wheel.
6. Turn the wheel in order to engage all of the second side of
the tire.
NOTE: The standard shoes can pass over the sensor with-
out damaging it.
