6. Removing the drain pan assembly

Gray (R)

Gray

Red (S)

White

White(C)

Repairable

parts

Compressor

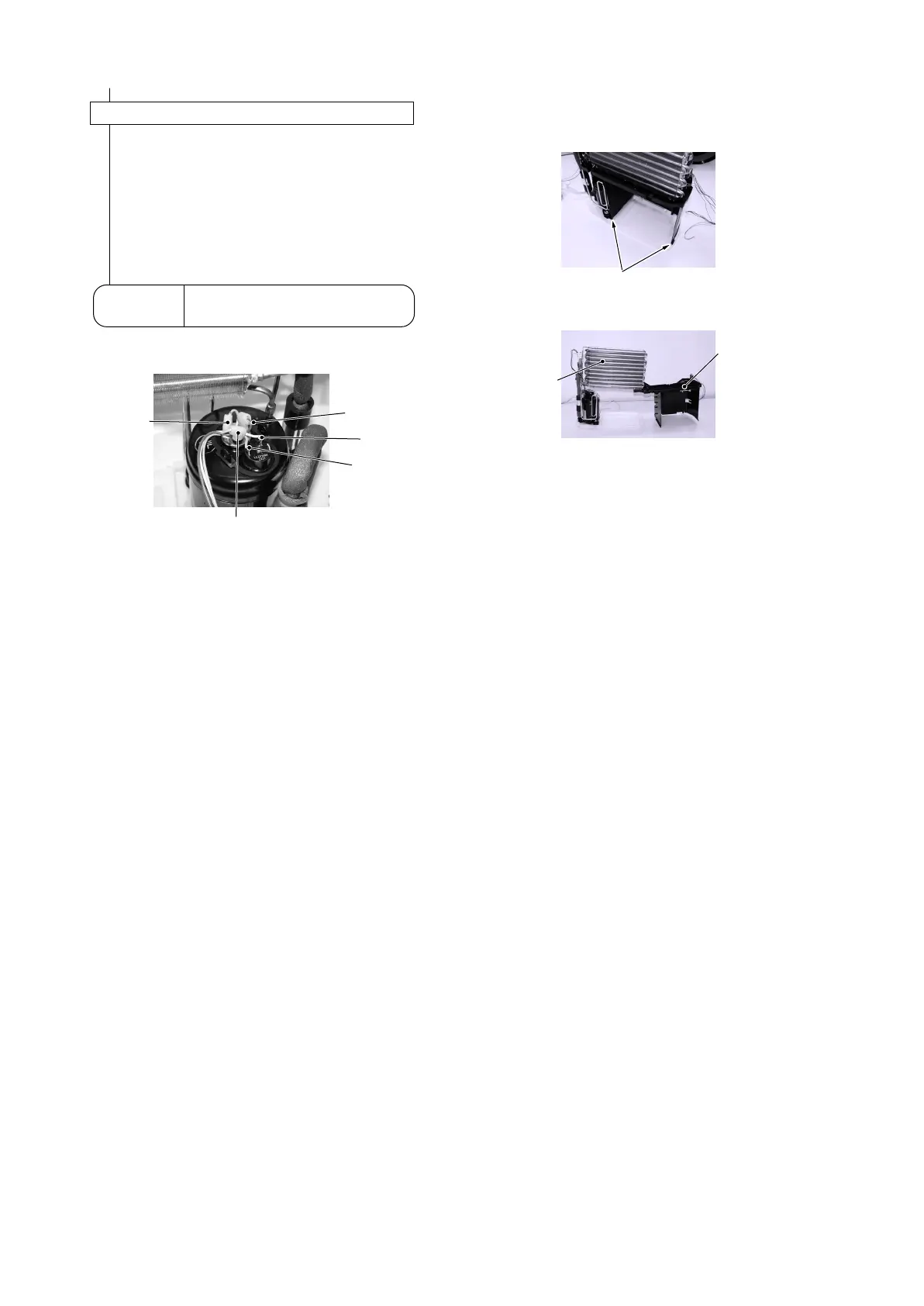

Steps 1) Following the sequence in Procedures

1-3 above, remove the water tank,

front panel, front case assembly, rear

panel and blower fan assembly.

2)Release the drain pan and base

fittings, lift up the right side of the heat

exchanger while removing the base.

(See Picture 20 and 21)

Heat

exchanger

Base

Picture 21

Drain pan and base fittings

Picture 20
