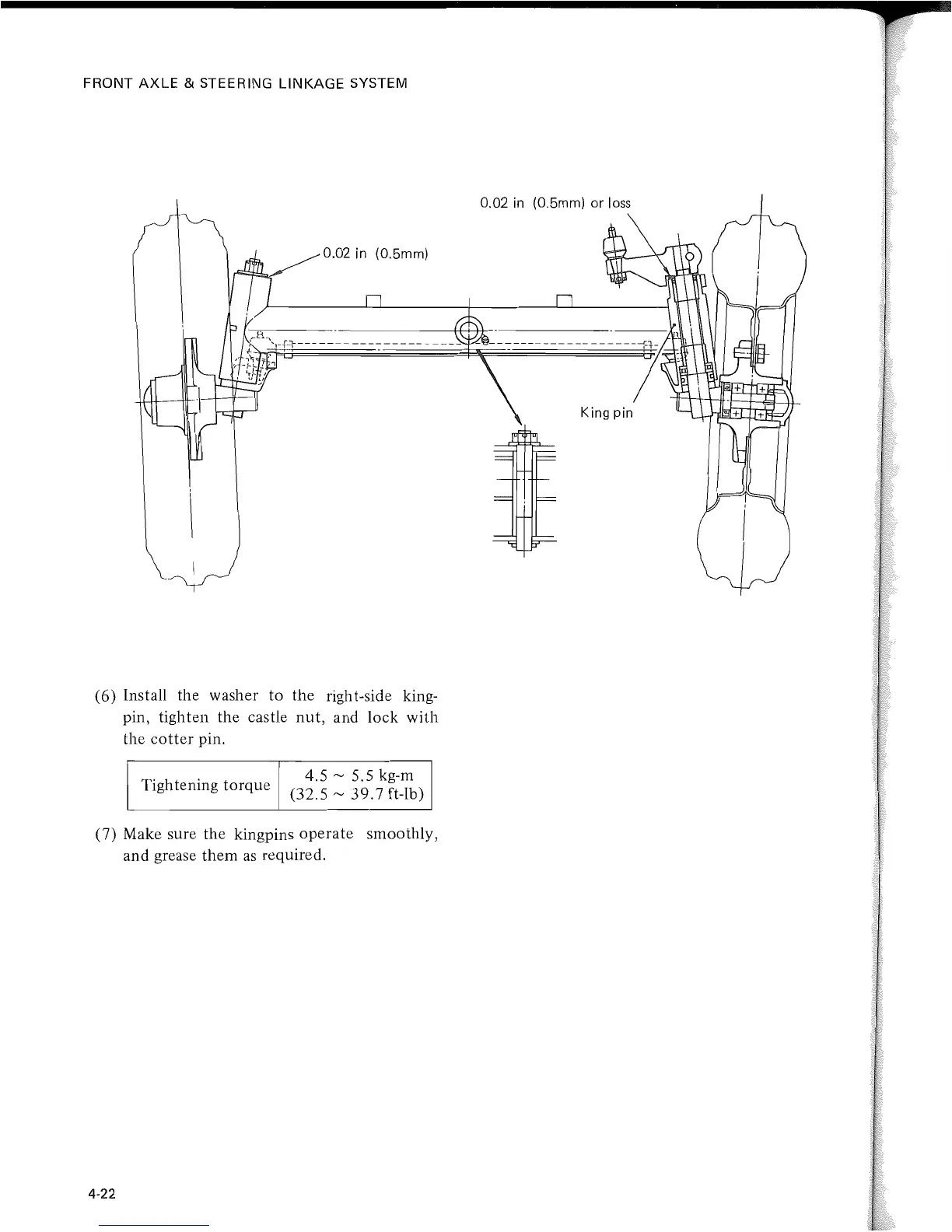

FRONT
AXLE
&
STEERING
LINKAGE
SYSTEM
~0.02
in
(0.5mm)
(6)
Install
the
washer
to
the
right-side
king-
pin,
tighten
the
castle
nut,
and
lock
with
the
cotter
pin.
Tightening
torque
4.5
~
5.5
kg-m
(32.5
~
39.7
ft-Ib)
(7)
Make
sure
the
kingpins
operate
smoothly,
and
grease
them
as
required.
4-22
0.02
in
(0.5mm)
or
loss
King
pin
145
147
