TRANSMISSION
SYSTEM

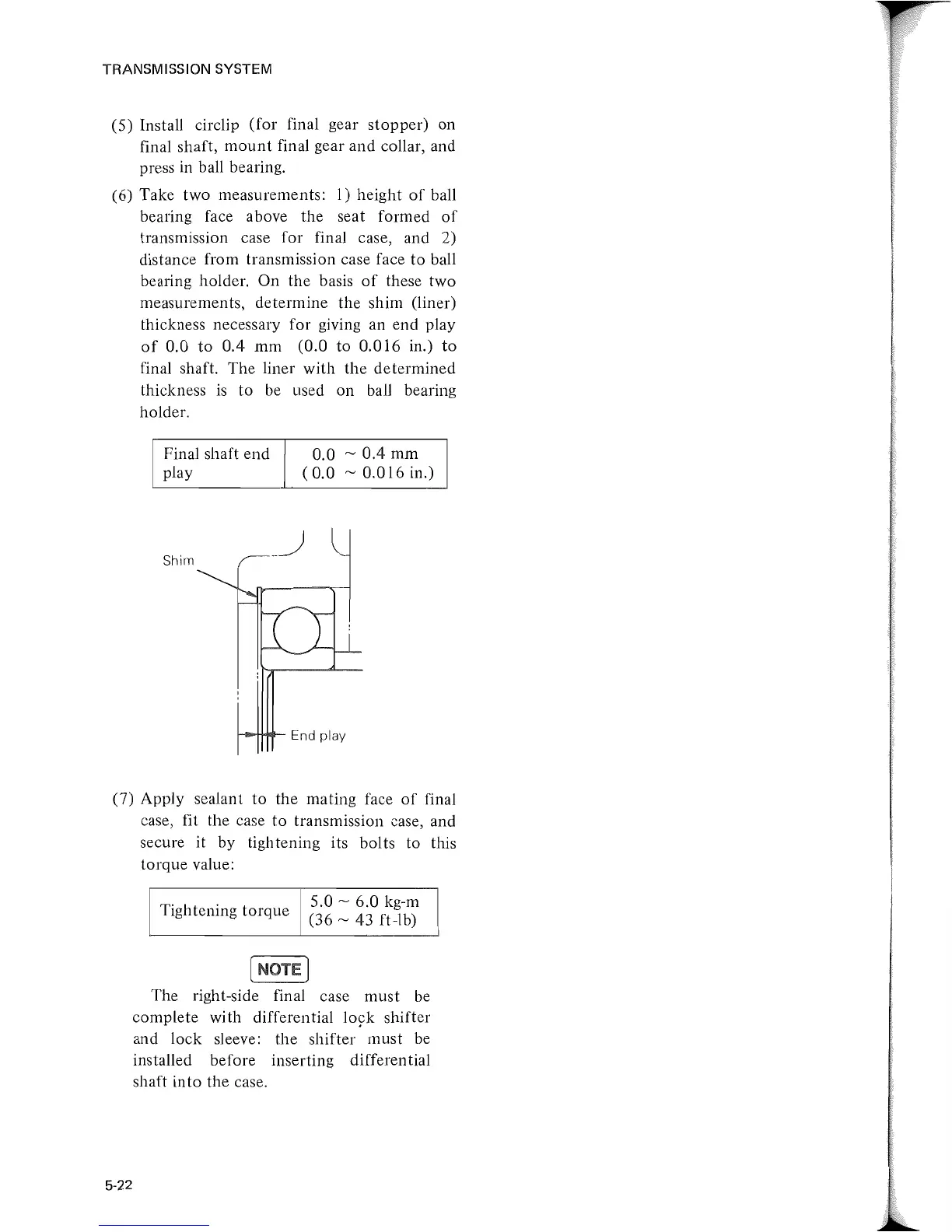

(5) Install circlip
(for
final gear
stopper)
on
final shaft,
mount
final gear and collar, and
press in ball bearing.
(6) Take two measurements:
1)
height
of
ball
bearing face above
the
seat formed
of
transmission case for final case, and 2)
distance from transmission case face
to
ball
bearing holder. On
the
basis
of
these two
measurements, determine the shim (liner)
thickness necessary for giving an end play
of
0.0
to
0.4
mm
(0.0
to
0.016
in.)
to
final shaft. The liner with
the
determined
thickness
is
to be used on ball bearing
holder.
Final shaft end
play
Shim
0.0
~
0.4 mm
(0.0
~0.016in.)
r--+t+!Ii-
End play
(7) Apply sealant to the mating face
of
final
case, fit the case to transmission case, and
secure
it
by tightening its bolts
to
this
torque value:
5-22
Tightening
torque
[NOTE]
5.0
~
6.0 kg-m
(36
~
43 ft-lb)
The right-side final case
must
be
complete with differential l09k shifter
and lock sleeve: the shifter
must
be
installed before inserting differential
shaft
into
the case.
